6
P/N 016-0171-588 Rev. D 31
CHASSIS CABLE INSTALLATION

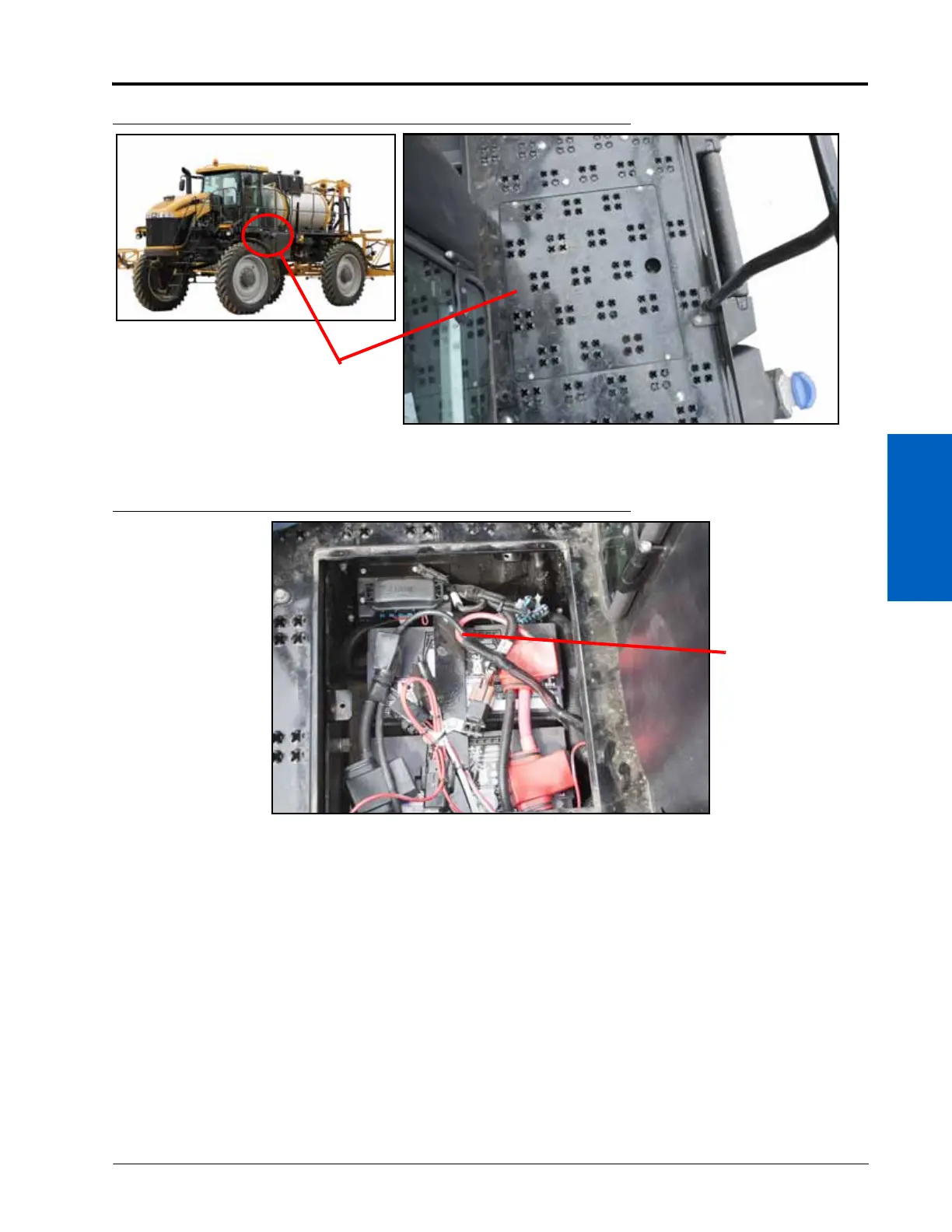

FIGURE 3. RoGator 1300 Battery Compartment Location
3. Remove the walkway cover and the battery compartment cover.
FIGURE 4. RoGator 1300 Battery Compartment
4. Route the battery leads on the chassis cable branch into the battery compartment.
5. Use the provided zip ties to secure the chassis cable to the undercarriage as necessary to avoid snagging the
cable during machine operation.
6. Connect the red battery lead to a positive battery terminal.
7. Locate the battery disconnect switch.
Machine
Battery Box
Access
Hawkeye Chassis
Cable Power
Leads
To Next Page
