CHAPTER 6
30 AGCO RoGator RG900/1100/1300 Hawkeye™ Installation Manual

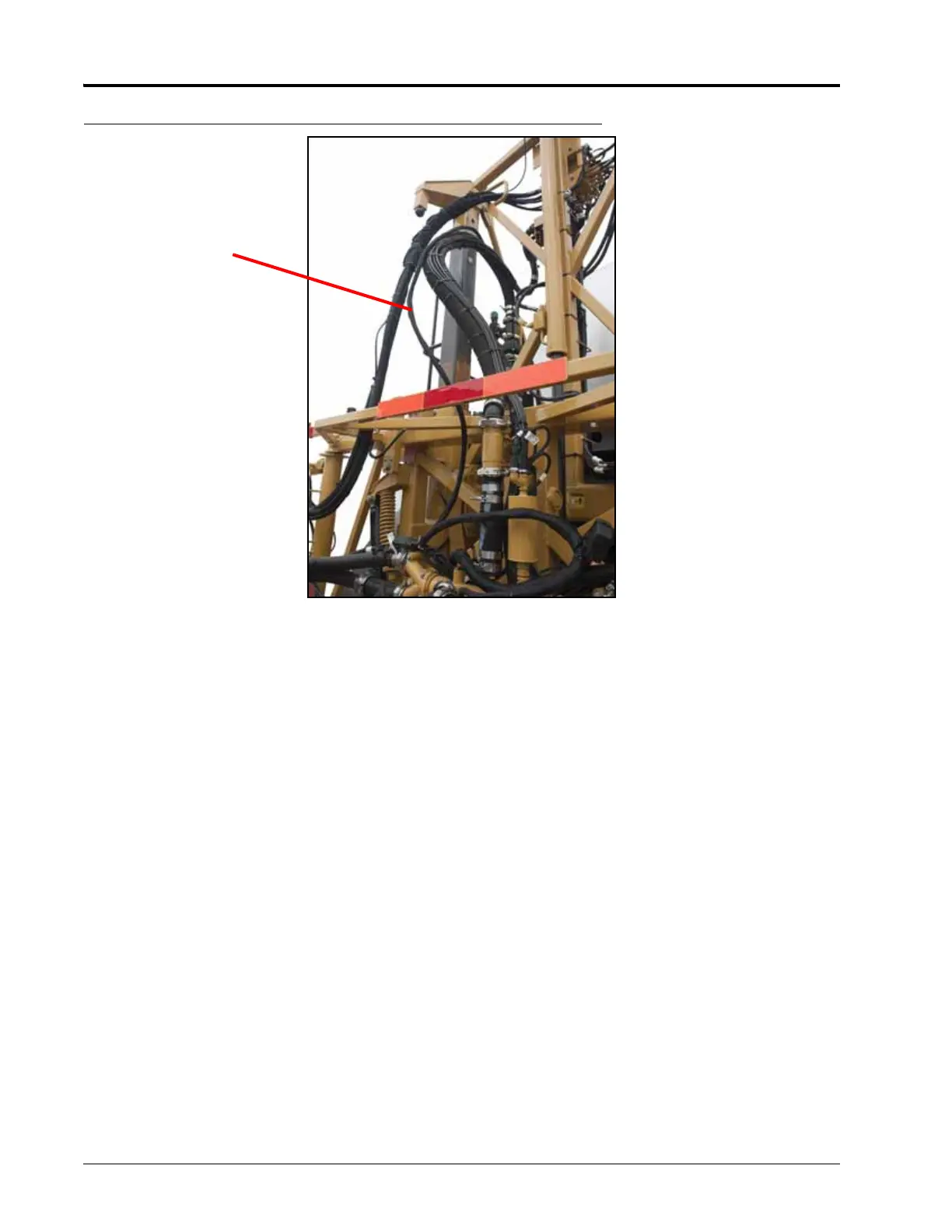

FIGURE 2. Chassis Cable Center Rack Routing
4. Use zip ties to secure the chassis cable to existing system lines to keep the cable from being damaged during
normal equipment operation.
5. Connect the left and right boom cables connectors at the center rack.
6. Use supplied zip ties to secure any excess cabling on the center rack framework.
BATTERY COMPARTMENT AND CONNECTIONS
1. Disconnect the battery switch by turning the battery disconnect switch below the catwalk near the cabin door.
2. Locate the battery compartment located next to the operator cabin under the catwalk on the left side of the
machine.
