AGFA d-lab.1 User Manual

Modification Capacitor Kit d-lab.1
8 CM+9.8072.9003.0 AGFA d-lab.1

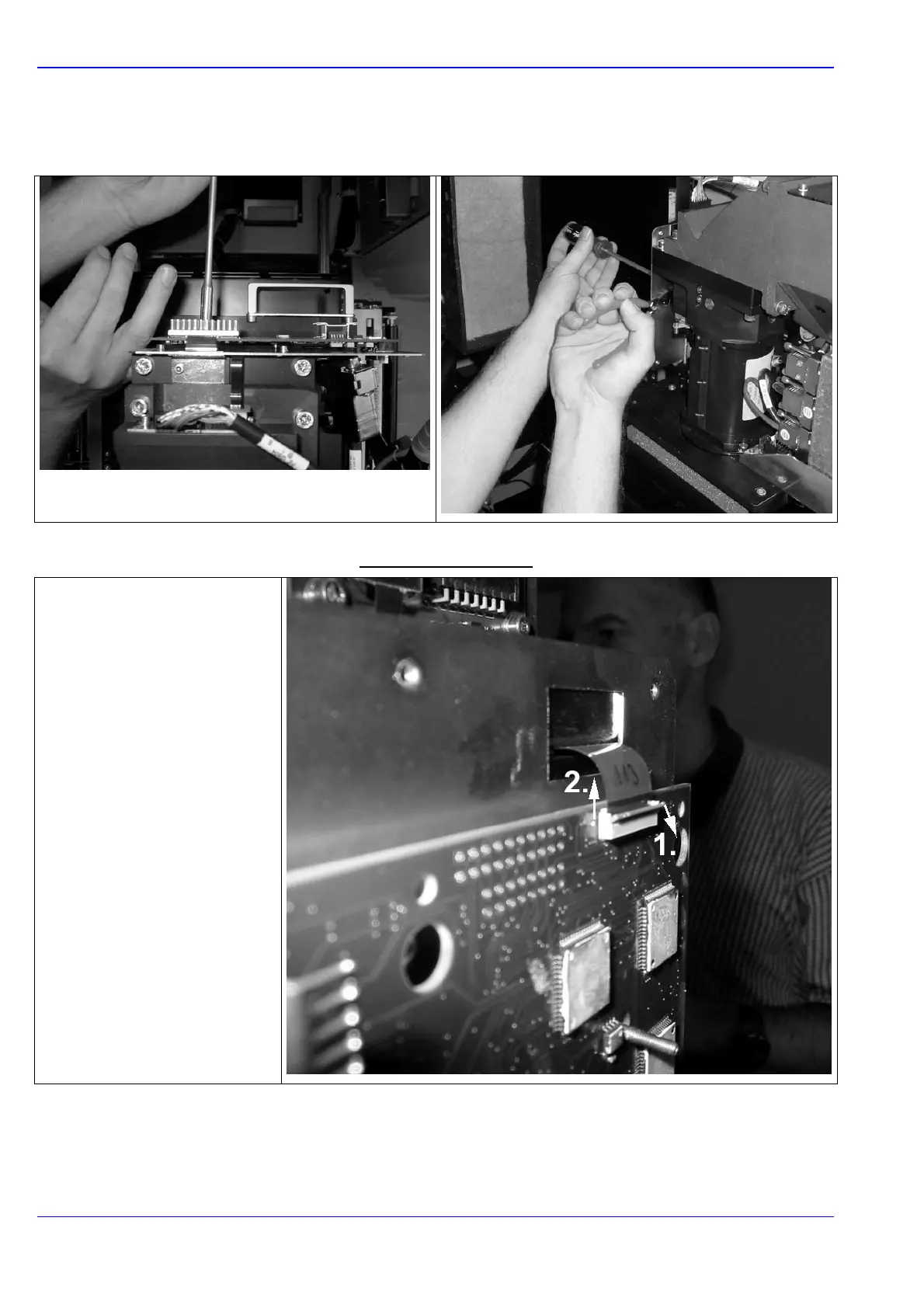

On the LCD driver board remove the screw which holds the heat sink. This can be done only with a socket wrench
5.5 mm. It is necessary to fix the screw from the other side.
At the LCD driver board remove the flat cable, please be very careful!!
1. First unlock the connector (see
“1” in the picture.
2. Pull the flat cable in the
direction as shown (2)
