IR Data Communication unit for some Wireless DR Detectors

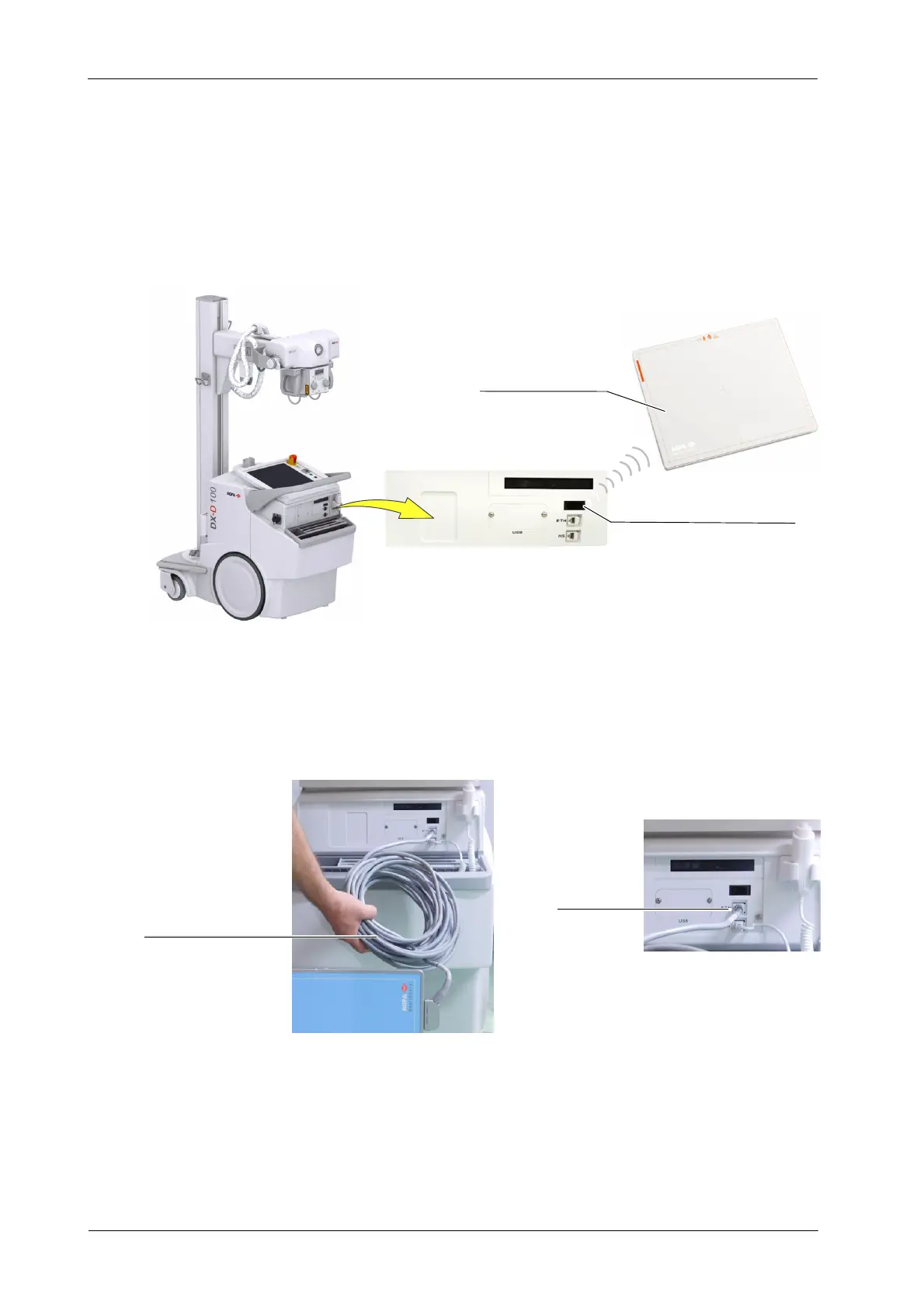

The Mobile Unit is equipped with an IR Data Communication unit, in the
Peripheral Connections Panel, used for registering some Wireless DR
Detectors to the Mobile unit by infrared (IR) communication.
IR Data Communication
Wireless DR Detector
Optional Detector Back-Up Cable for some Wireless DR Detectors
With the optional Back-up Cable connected to the Detector it is possible to
expand from a wireless configuration to a wired c onfiguration. This cable has
to be plugged to connector RJ45 (ETH) at the Peripheral Connections Panel of
the Mobile Unit.
RJ45 (ETH)
Detector Back-up Cable
Optional Wired Configuration for some Wireless DR Detectors
Some wireless DR Detectors can be configured as a wired DR Detector. In this
configuration, the Mobile Unit has no wireless Access Point and the DR
Detector communicates with the Mobile Unit through the DR detector cable.
To Next Page
