3.11.2 CONFIGURATION FOR PORTABLE DR DETECTORS

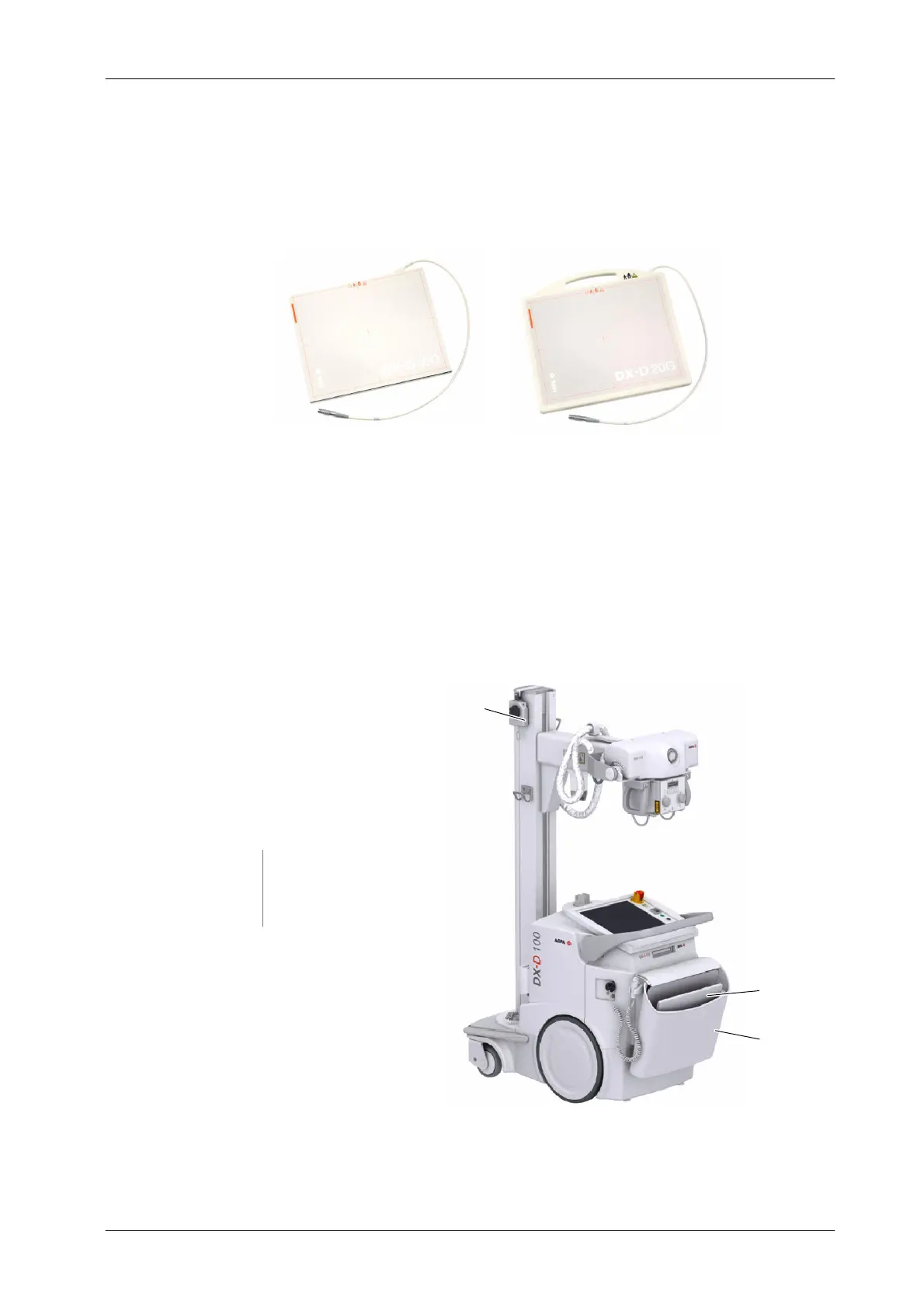

Portable DR Detector DX-D20Portable DR Detector DX-D10
It can be provided an optional Anti-Scatter Grid Support designed to fit the
Portable DR Detector inside. It is placed inside the DR Detector/Grid Holder.
The Portable DR Detector is placed in the DR Detector/Grid Holder, at the Back
Cover.
Detector / Grid Holder (Front Cover)
Detector Cable Tether
Portable DR Detector / Grid
1
2
3
1
2
3
