Appendix B — Using the automatic document feeder 52

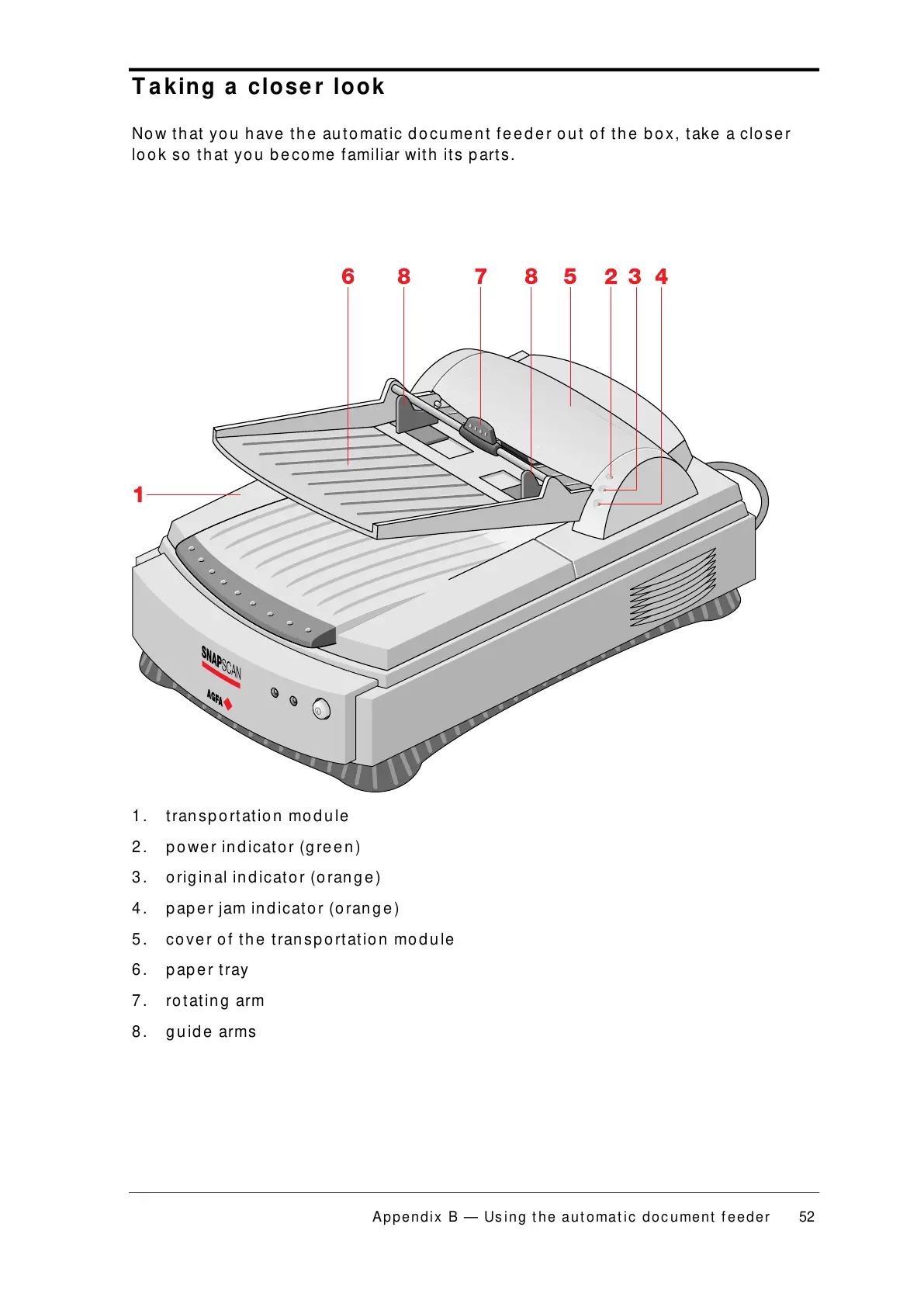

Taking a closer look
Now that you have the automatic document feeder out of the box, take a closer
look so that you become familiar with its parts.
1. transportation module
2. power indicator (green)
3. original indicator (orange)
4. paper jam indicator (orange)
5. cover of the transportation module
6. paper tray
7. rotating arm
8. guide arms
