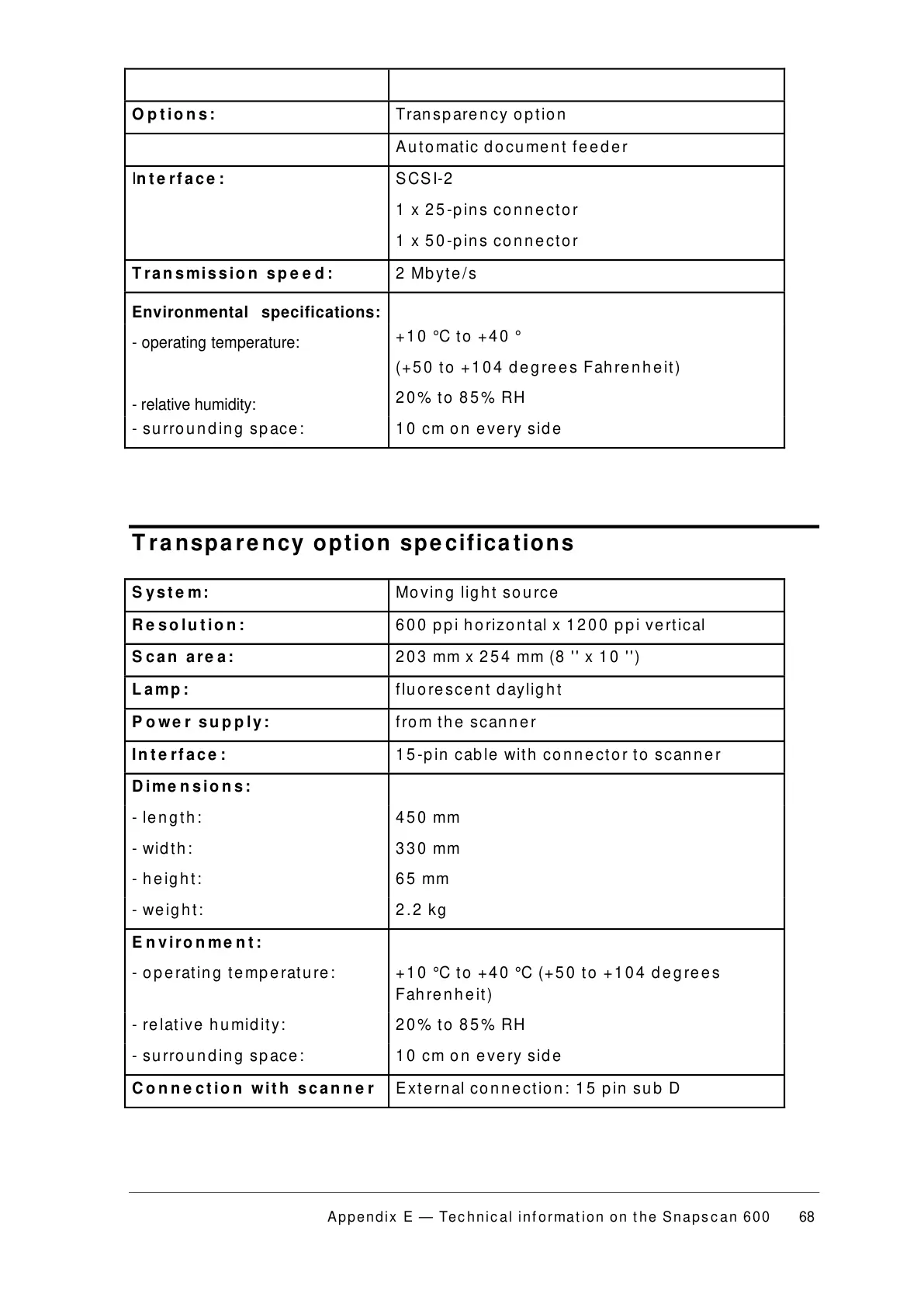

Appendix E — Technical information on the Snapscan 600 68
Options: Transparency option
Automatic document feeder
Interface: SCSI-2
1 x 25-pins connector
1 x 50-pins connector
Transmission speed: 2 Mbyte/s
Environmental specifications:
- operating temperature:
+10 °C to +40 °
(+50 to +104 degrees Fahrenheit)
- relative humidity:
20% to 85% RH
- surrounding space: 10 cm on every side
Transparency option specifications
System: Moving light source
Resolution: 600 ppi horizontal x 1200 ppi vertical
Scan area: 203 mm x 254 mm (8 '' x 10 '')
Lamp: fluorescent daylight
Power supply: from the scanner
Interface: 15-pin cable with connector to scanner
Dimensions:
- length: 450 mm
- width: 330 mm
- height: 65 mm
- weight: 2.2 kg
Environment:
- operating temperature: +10 °C to +40 °C (+50 to +104 degrees
Fahrenheit)
- relative humidity: 20% to 85% RH
- surrounding space: 10 cm on every side
Connection with scanner External connection: 15 pin sub D
