44 HDR-DAD Solution
4
Using the HDR-DAD Solution
Method and Run Control User Interface in ChemStation
Code for the signals observed:
• The HDR-DAD signals are available as DAD1A - H signal
• The original signals of DAD
1
are available as LNG1A - H signal (= long cell)
• The original signals of DAD
2
are available as SHT1A - H signal (= short cell)

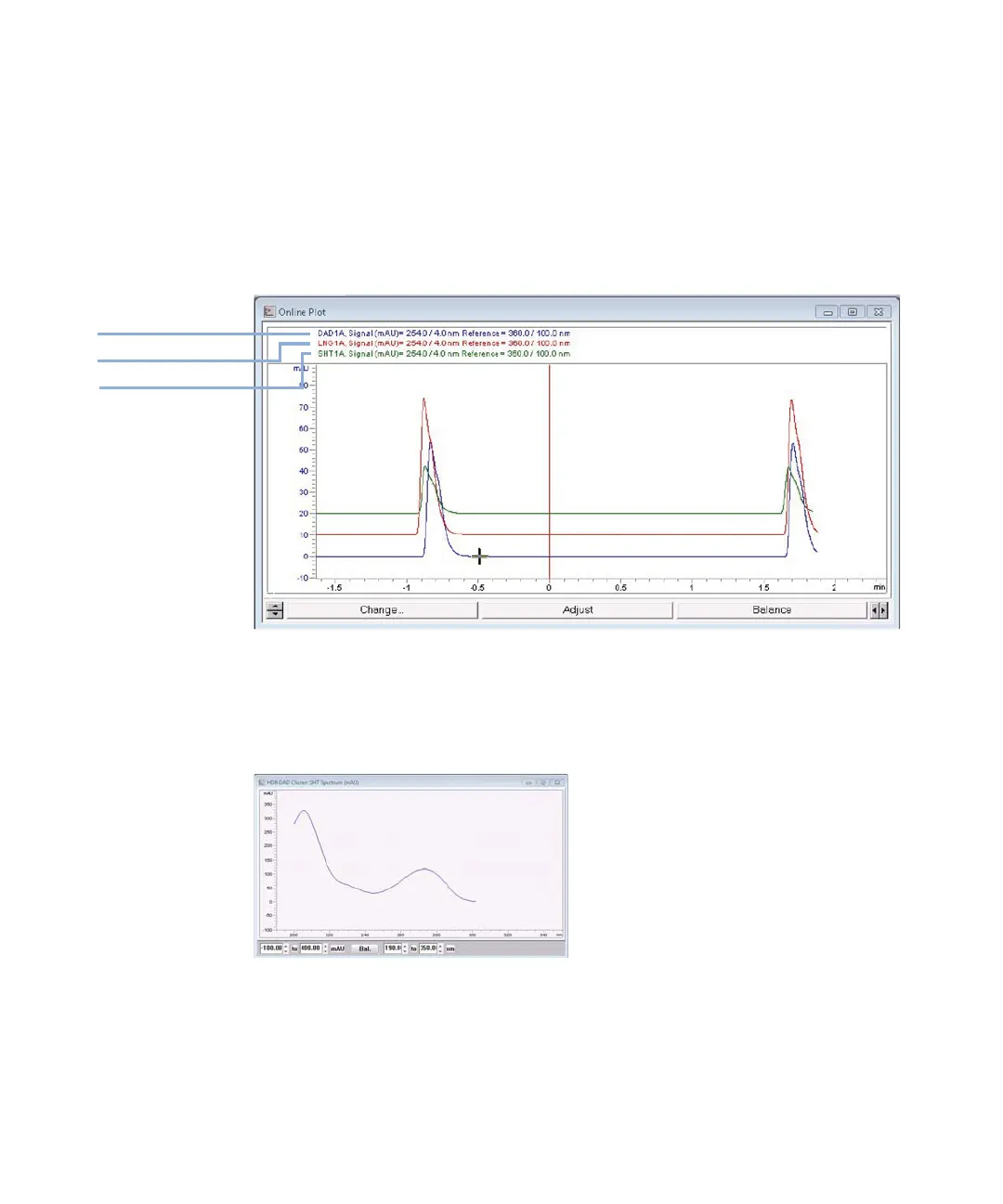

Figure 22 HDR-DAD Online Plot section
The HDR-DAD solution also offers the possibility to review the spectra online
while acquiring data. The HDR-DAD Cluster: Spectrum (mAU) section shows the
HDR spectra.
Figure 23 HDR-DAD spectrum
HDR-DAD signal
Signal DAD
Signal DAD
1
2
