Horizontal Controls
Horizontal Menu
2-27
X-Y Format
This format compares the voltage levels of two waveforms point by point. It is
useful for studying phase relationships between two waveforms. This format
only applies to channels 1 and 2. Choosing the X-Y display format displays
channel 1 on the horizontal axis and channel 2 on the vertical axis. The
oscilloscope uses the untriggered acquisition mode and waveform data is
displayed as dots. The sampling rate can vary from 2 kSa/s to 100 MSa/s, and
the default sampling rate is 1 MSa/s.

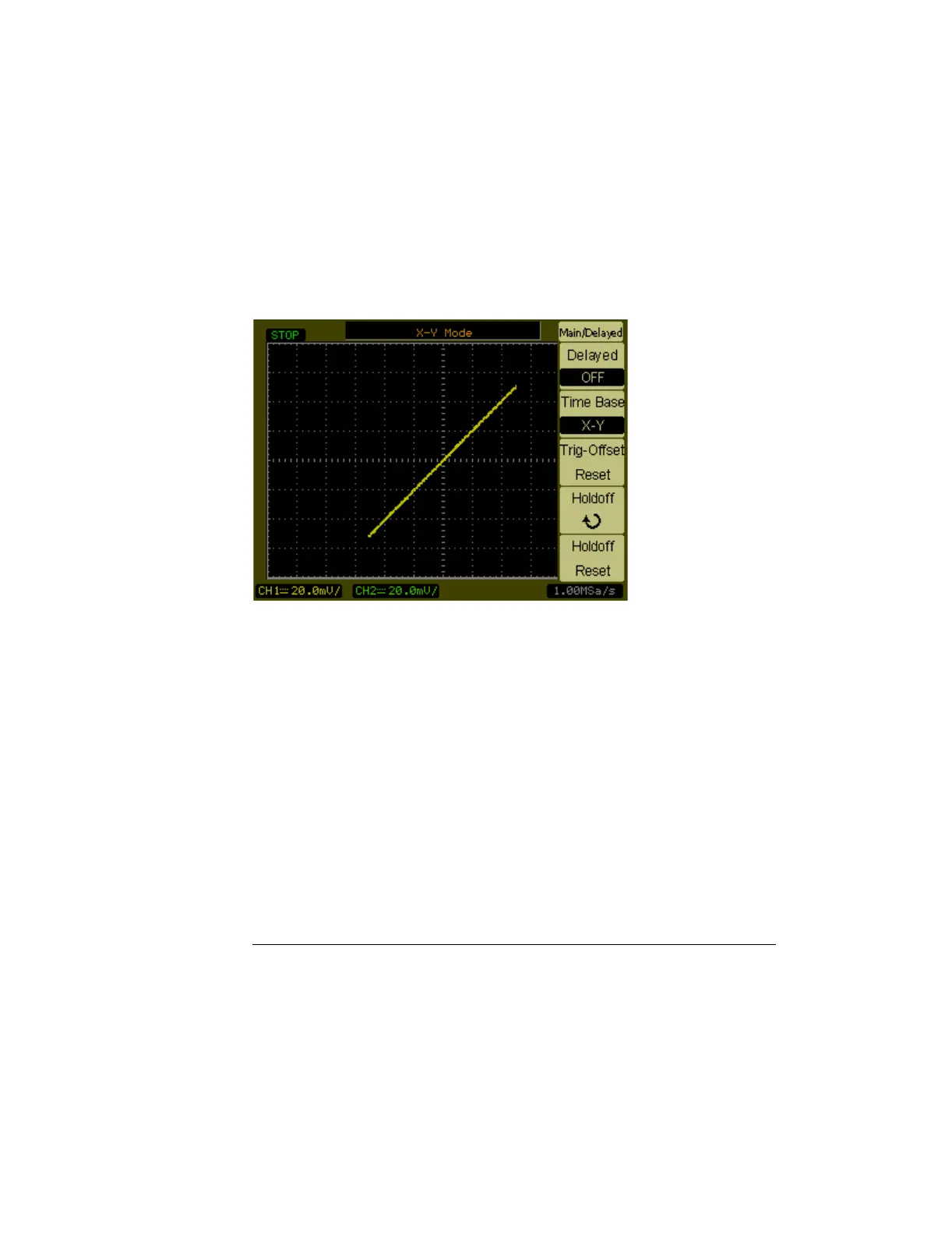

Figure 2-16
X-Y display format
The following modes or functions are not available in X-Y format.
• Automatic Measurements
• Cursor Measurements
•Mask Test
• Ref and Math Operations
• Delayed Sweep
• Vector Display Mode
• Horizontal position knob
• Trigger Controls
Trig-Offset Reset
This control resets the horizontal position to center screen or zero trigger offset.
