Chapter 1 Quick Start
To Set the Duty Cycle of a Square Wave
1
To Set the Duty Cycle of a Square Wave
At power-on, the duty cycle for square waves is 50%. The duty cycle is
limited by the minimum pulse width specification of 16 ns. The following
steps show you how to change the duty cycle to 75%.
1 Select the square wave function.
Press the
key and choose Square.

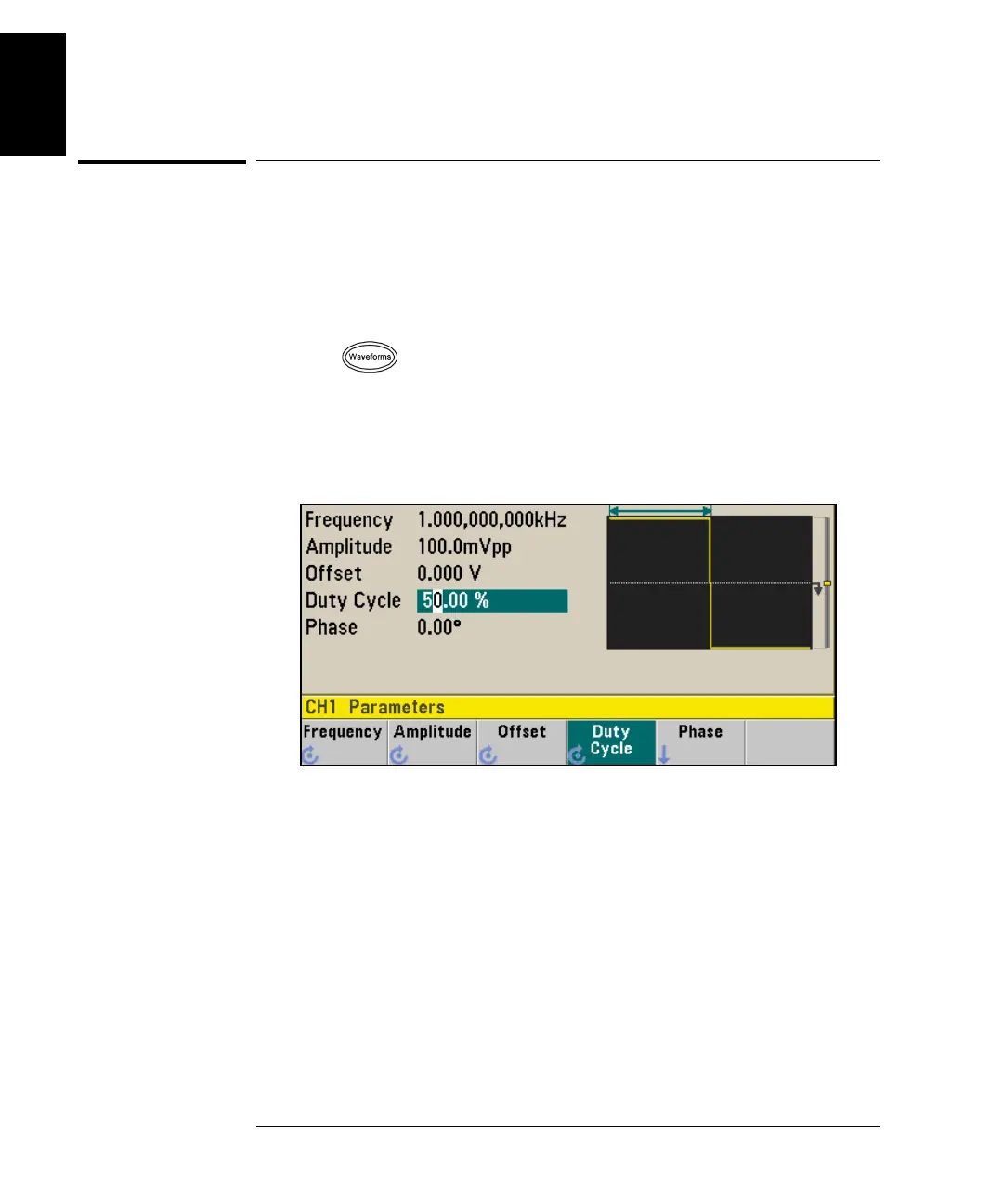

2Press the Duty Cycle softkey.
The displayed duty cycle is either the power-on value or the percentage
previously selected. The duty cycle represents the amount of time per
cycle that the square wave is at a high level.
