To Select the Output Termination
The Agilent 33500 Series has a fixed series output impedance of 50 to
the front-panel channel connectors. If the actual load impedance is
different than the value specified, the displayed amplitude and offset
levels will be incorrect. The load impedance setting is simply provided
as a convenience to ensure that the displayed voltage matches the
expected load.
1Press
or
or
to open the channel configuration

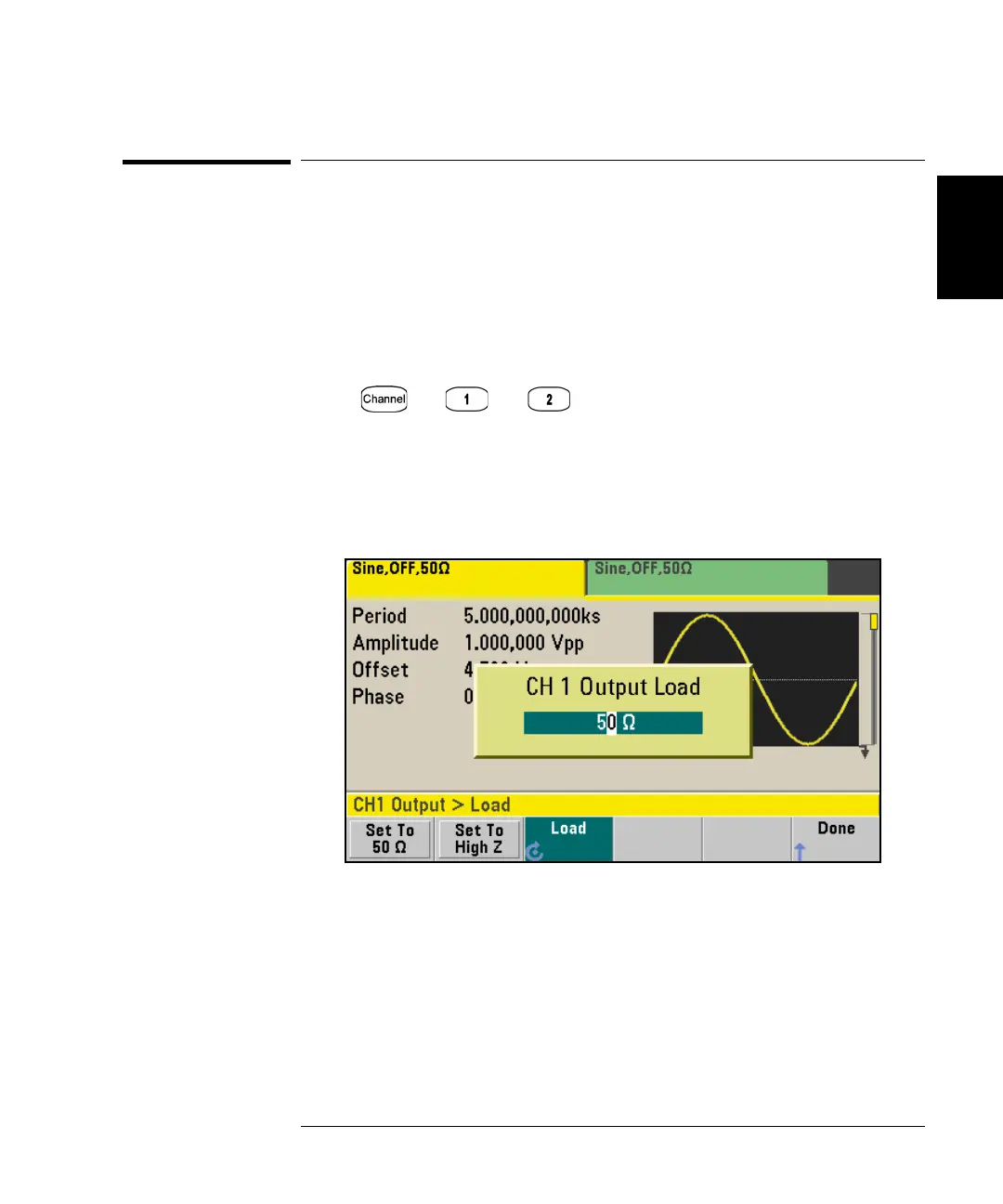

screen. Note that the current output termination values (both
50 in this case) appear on the tabs at the top of the screen.
2 Specify the output termination.
Press the Output Load softkey.
3 Select the desired output termination.
Use the knob or numeric keypad to select the desired load impedance or
press the Set to 50 softkey or the Set to High Z softkey.
