34410A/11A/L4411A Service Guide 113
Disassembly and Repair 4

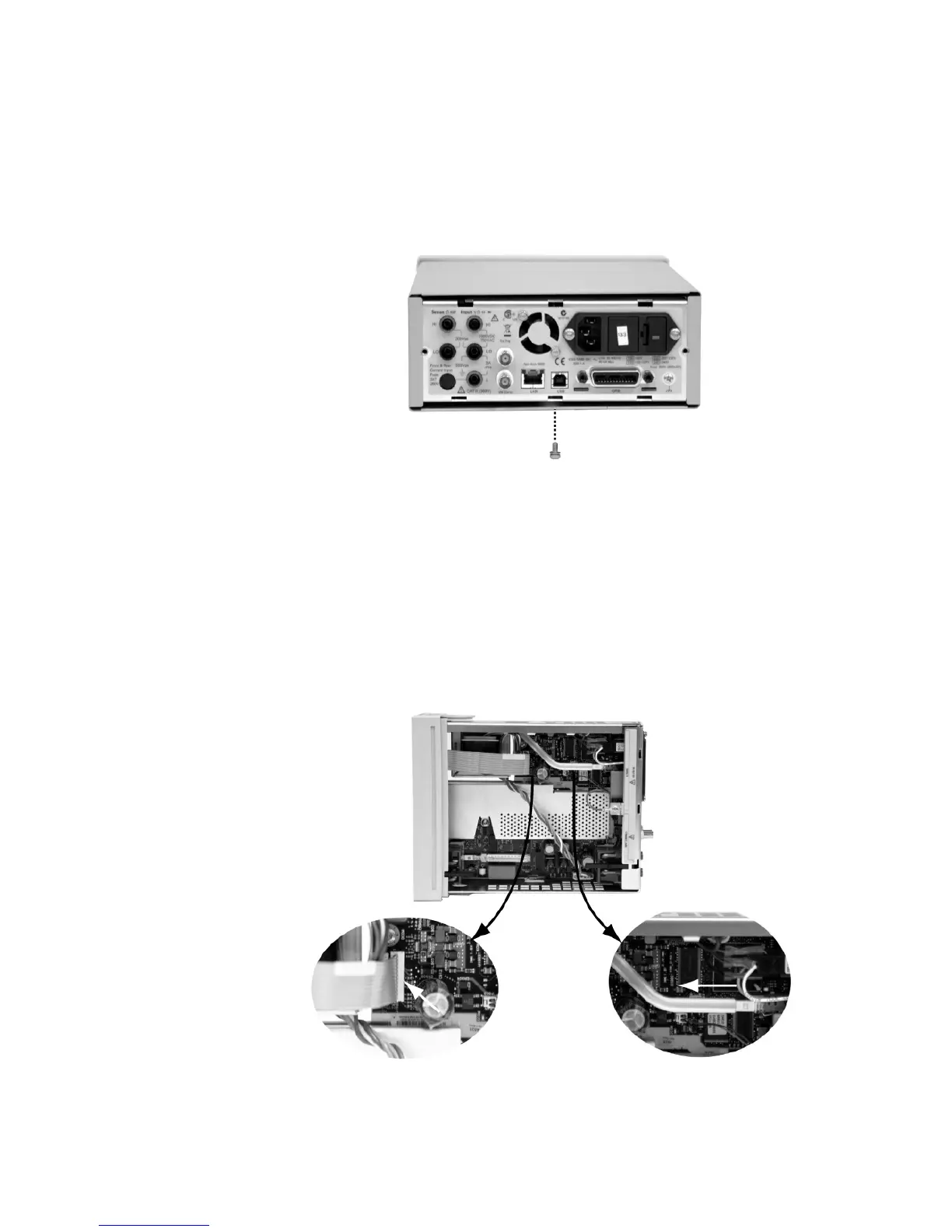

5 Remove the cover. Remove the Torx drive screw in the bottom of the
cover and slide the cover off the instrument.
Front Panel Removal
6 Remove push rod and disconnect display cable.
a Gently move the power switch push rod toward the front of the
instrument to disengage it from the switch. Be careful not to twist or
bend the push rod. Remove the front/rear push rod in the same
manner.
b Push down on the front panel cable connector latch and disconnect
the cable from the main board.
