Chapter 3 Disassembly/Assembly Procedures and Parts List 41

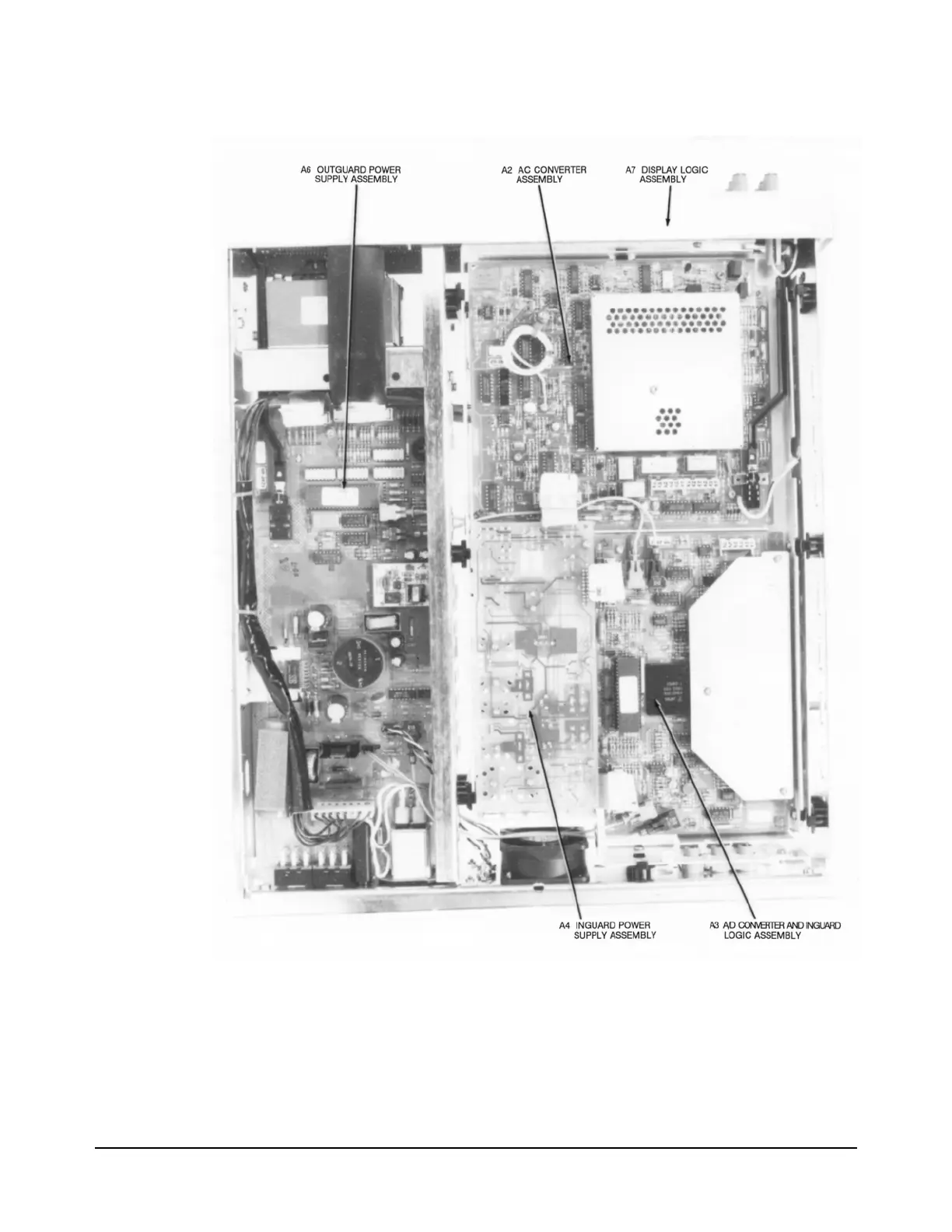

Figure 13. Assembly Locations (Bottom of Instrument)
Refer to Figure 14 for the following procedures.
Removal Procedure 1. Use the Covers Removal Procedure in this section of the manual to
remove the 3458A top cover and top shield. It is not necessary to
remove the bottom cover and bottom shield.
