4263B

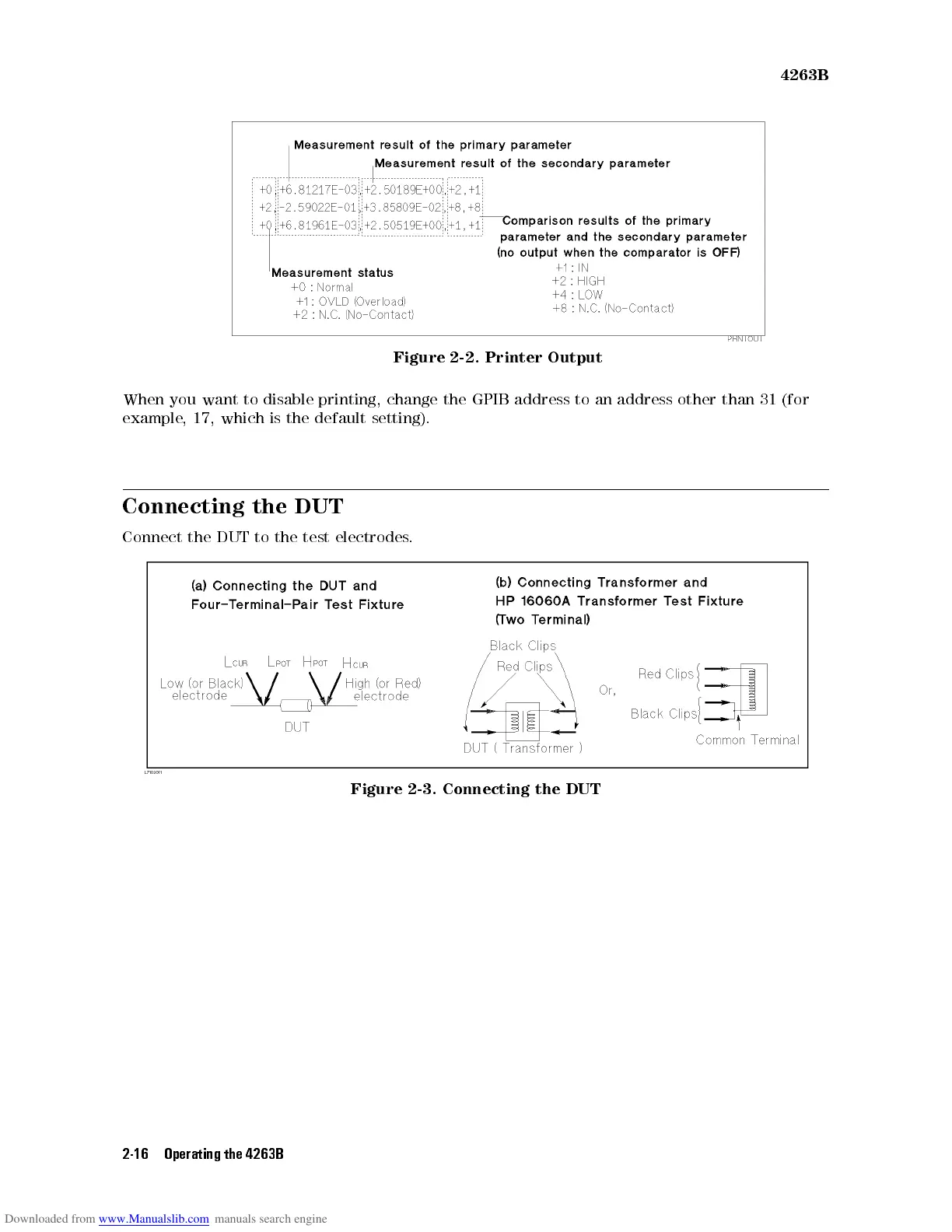

Figure
2-2.
Printer
Output
When
you
want
to
disable
printing,
change
the
GPIB
address
to an
address other
than 31
(for
example
,
17,
which
is
the
default
setting).
Connecting
the DUT
Connect
the
DUT
to
the
test
electrodes
.
Figure 2-3.
Connecting the
DUT
2-16 Operating the 4263B
