Agilent 4263B LCR Meter Operation Manual

Manual Change

Agilent Part No. N/A

Jun 2009

Change 1

Add TAR in Test Signal Frequency Accuracy Test (Page 9-38) as follows.

Test Signal Frequency Accuracy

Frequency

[Hz]

Limits [Hz] Result

[Hz] Uncertainty [Hz] TAR

100 ±0.01 ± 0.00031 31.77

120 ±1.2 ± 0.00034 3550.50

1 k ±0.00010 k k ± 0.0000029 k 35.38

10 k ±0.0010 k k ± 0.000019 k 53.80

20 k ±0.0020 k k ± 0.000020 k 100.32

100 k ±0.010 k k ± 0.00019 k 53.78

Note 1: Result = Measurement – Nominal Frequency

Change 2

Add TAR in Test Signal Level Accuracy Test (Page 9-38) as follows.

Test Signal Level Accuracy

Signal

Level [V]

Frequency

[HZ]

Limits [V] Result

[V] Uncertainty [V] TAR

50 m 100 ±15.0 m

± 0.90 m 16.70

50 m 20 k ±15.0 m

± 0.078 m 193.62

50 m 100 k ±15.0 m

± 0.18 m 86.62

250 m 100 ±35.0 m

± 2.50 m 14.04

250 m 20 k ±35.0 m

± 0.35 m 102.30

250 m 100 k ±35.0 m

± 1.88 m 18.66

1 100 ±0.11 ± 0.00349 31.60

1 20 k ±0.11 ± 0.00147 74.91

1 100 k ±0.11 ± 0.00108 101.92

Note 1: Result = Measurement – Nominal Level

Change 3

Add TAR in DC Bias Level Accuracy Test (Page 9-39) as follows.

DC Bias Level Accuracy

DC Bias

Level [V]

Limits [V] Result1 [V] Uncertainty [V] TAR

0 ±0.002 ± 0.087 m 23.07

1.5 ±0.077 ± 0.44 m 175.51

2 ±0.102 ± 0.92 m 111.10

Note 1: Result = Measurement – Nominal Level

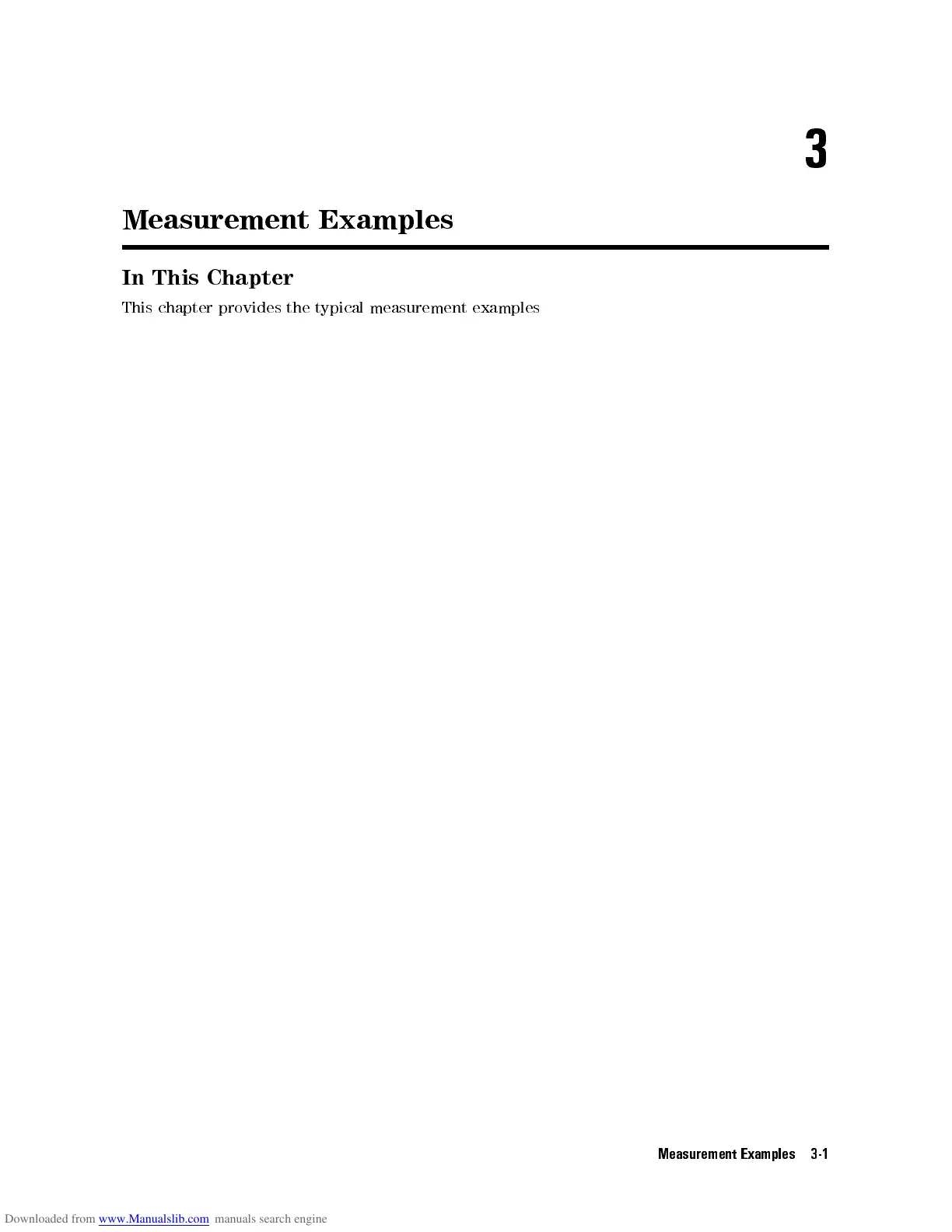

Agilent Technologies 4263B - Measurement Examples
