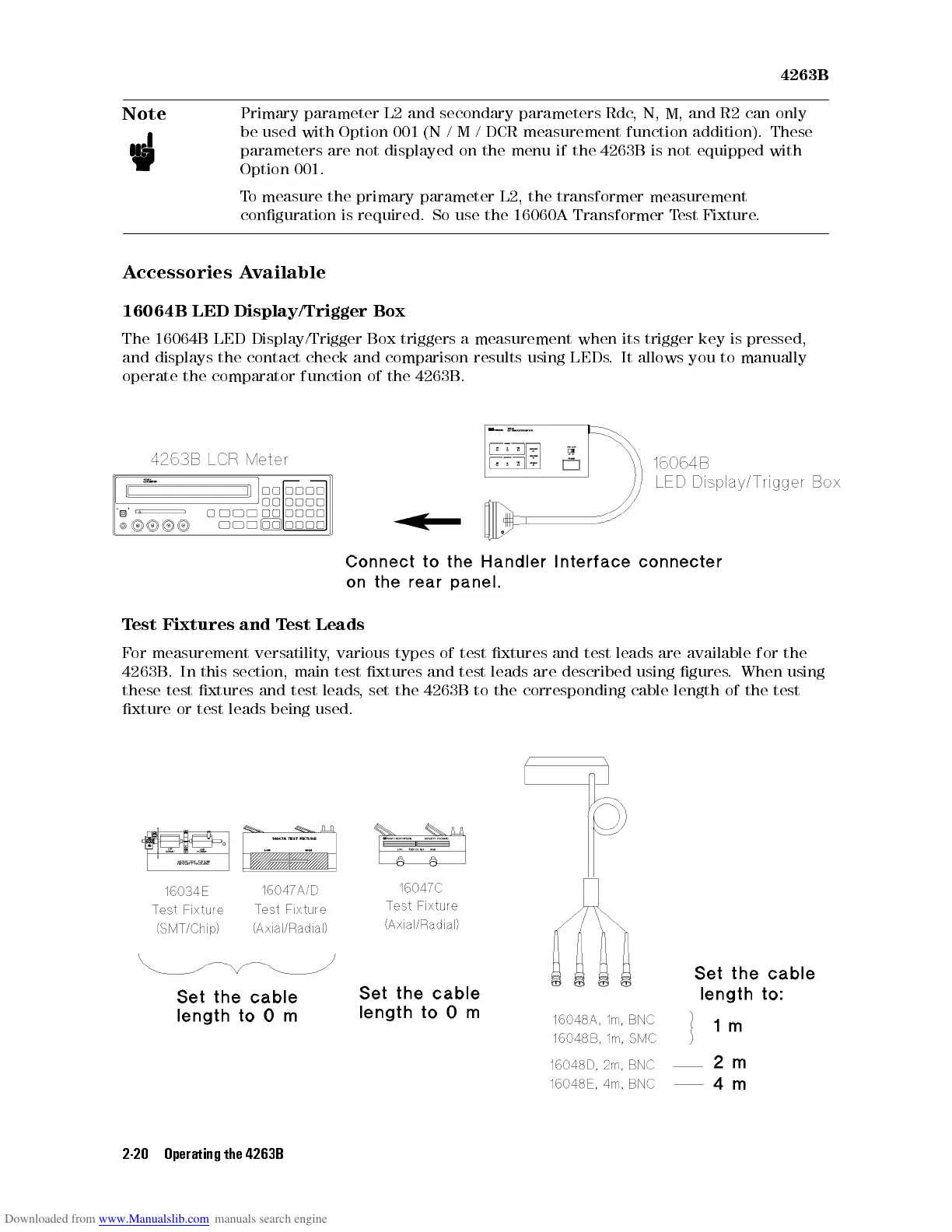

4263B
Note
Primary
parameter
L2
and
secondary
parameters
Rdc
,
N,
M,
and
R2 can
only
be
used
with
Option
001
(N
/
M/
DCR measurement
function addition).
These
parameters
are
not
displayed
on
the
menu
if the
4263B is
not equipped
with
Option
001.
T
o
measure
the primary
parameter L2,
the transformer
measurement
conguration
is
required.
So
use
the
16060A
Transformer T
est Fixture
.
A
ccessories
Available
16064B
LED
Display/Trigger
Box
The
16064B
LED
Display/Trigger
Box
triggers
a
measurement
when its
trigger key
is pressed,
and
displays
the
contact
check
and
comparison
results
using LEDs
.It
allows you
to
manually
operate
the
comparator
function
of
the
4263B
.
T
est
Fixtures
and
T
est
Leads
F
or
measurement
versatility
,
various
types
of
test
xtures
and
test
leads
are
available
for
the
4263B
.
In
this
section,
main
test
xtures
and
test
leads
are
described
using
gures
.
When
using
these
test
xtures
and
test
leads
,
set
the
4263B
to
the
corresponding
cable
length
of
the
test
xture
or
test
leads
being
used.
