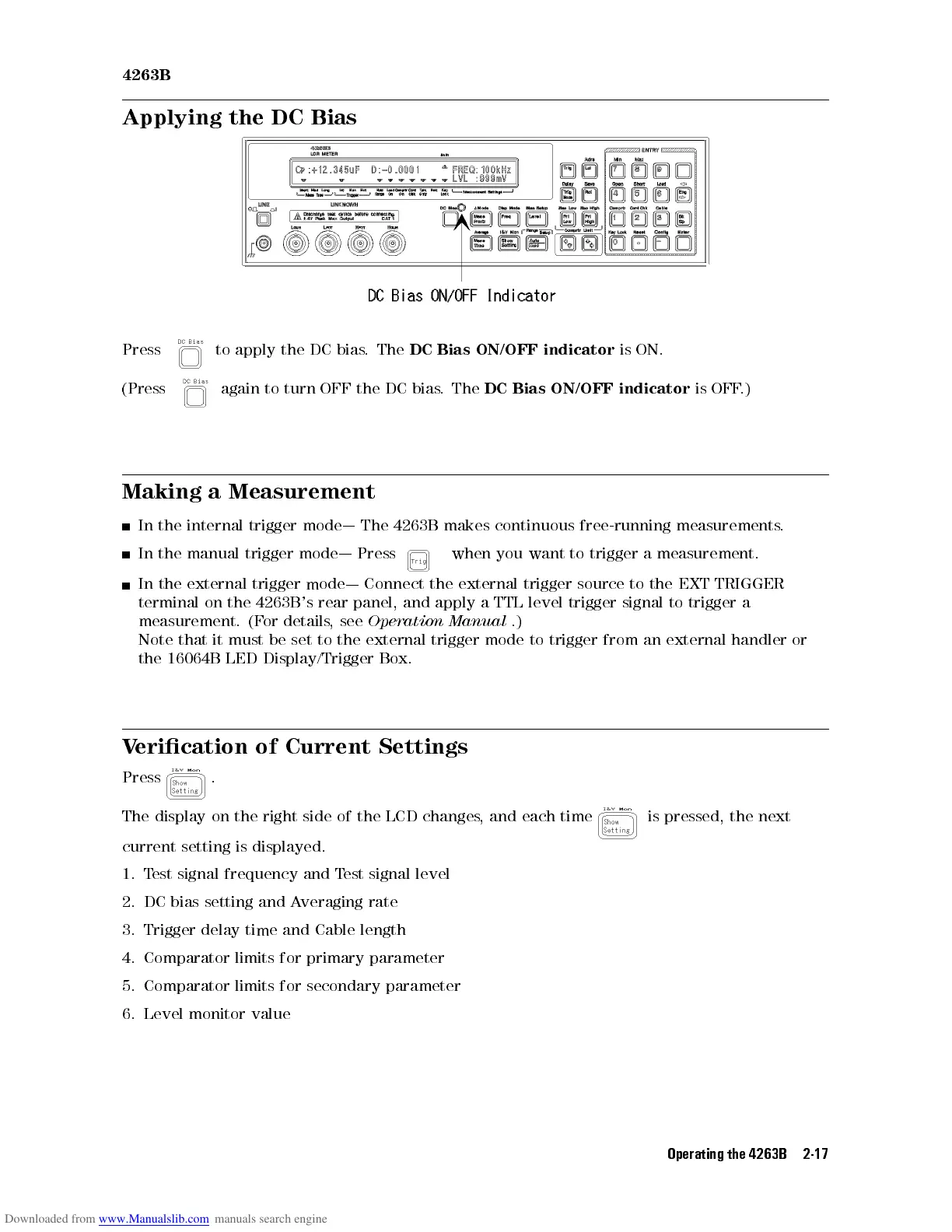

Agilent Technologies 4263B User Guide

4263B
Applying the
DC Bias
Press to
apply the
DC bias
.
The
DC
Bias
ON/OFF
indicator
is
ON.
(Press
again
to
turn
OFF
the
DC
bias
.
The
DC
Bias
ON/OFF
indicator
is
OFF
.)
Making
a
Measurement
In
the
internal
trigger mode|
The 4263B
makes
continuous
free-running
measurements
.
In
the
manual
trigger mode|
Press
when
you
want
to trigger
a measurement.
In
the
external
trigger
mode|
Connect
the
external
trigger
source
to
the
EXT
TRIGGER
terminal
on
the
4263B
's
rear
panel,
and
apply
a
TTL
level
trigger signal
to
trigger
a
measurement.
(F
or
details
,
see
Operation
Manual
.)
Note
that
it
must
be
set
to
the
external
trigger
mode
to
trigger
from an
external
handler
or
the
16064B
LED
Display/Trigger
Box.
V
erication of
Current Settings
Press
.
The
display on
the right
side of
the LCD
changes
,
and
each
time
is
pressed, the
next
current setting is displayed.
1. T
est signal frequency and T
est signal level
2. DC bias setting and A
veraging rate
3. Trigger delay time and Cable length
4. Comparator limits for primary parameter
5. Comparator limits for secondary parameter
6. Level monitor value
