Change
2
Change the
Replaceable P
arts
as
follo
wing.

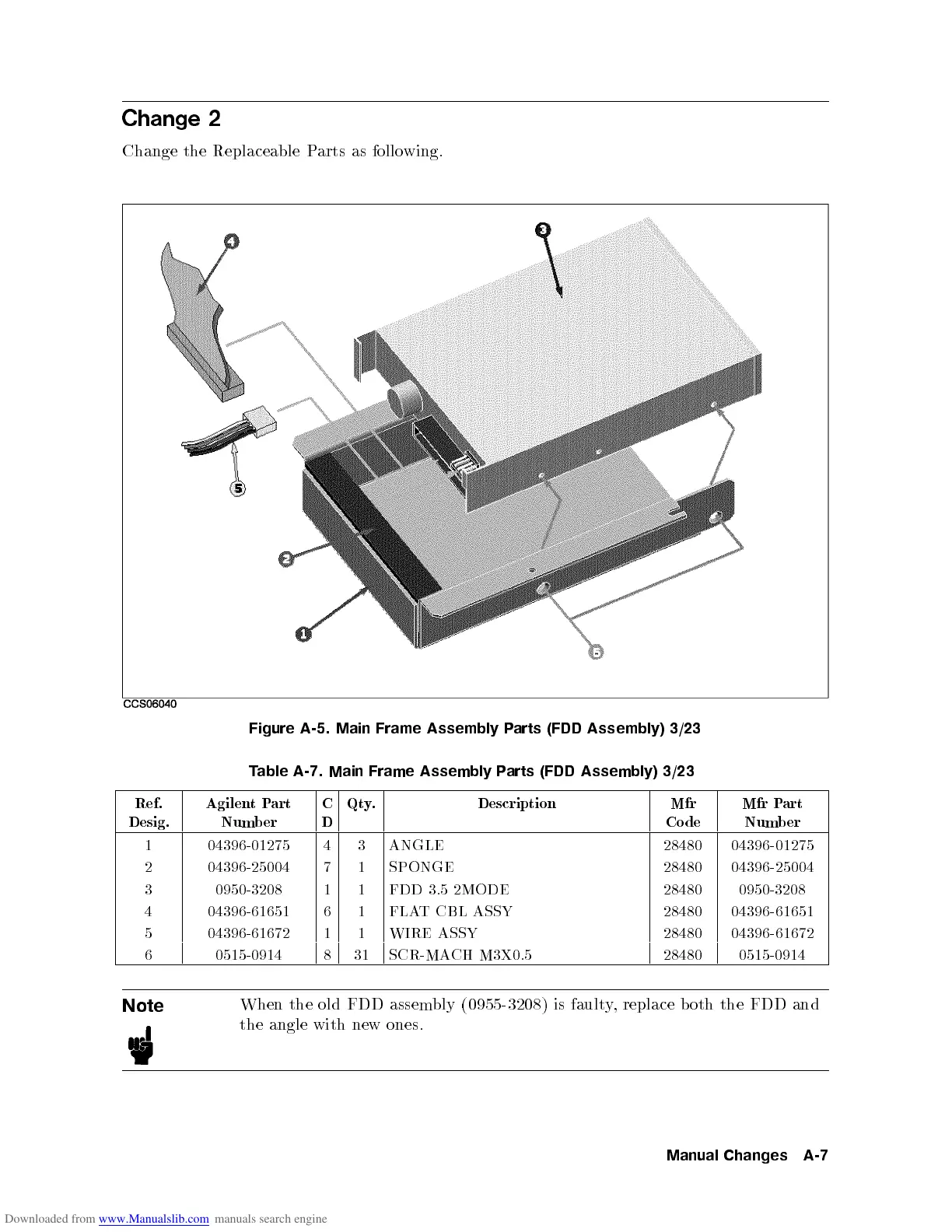

Figure
A-5.
Main
Frame
Assembly
P
arts
(FDD Assembly)
3/23
T
able
A-7.
Main
Frame
Assembly
P
arts
(FDD
Assembly)
3/23
Ref.
Desig.
Agilen
t
P
art
Numb
er
C
D
Qt
y
.
Description Mfr
Co de
Mfr
P
art
Numb
er
1 04396-01275 4 3 ANGLE 28480 04396-01275
2 04396-25004 7 1 SPONGE 28480 04396-25004
3 0950-3208 1 1 FDD 3.5 2MODE 28480 0950-3208
4 04396-61651 6 1 FLAT CBL ASSY 28480 04396-61651
5 04396-61672 1 1 WIRE ASSY 28480 04396-61672
6 0515-0914 8 31 SCR-MACH M3X0.5 28480 0515-0914
Note
When the old FDD assembly (0955-3208) is faulty, replace both the FDD and
the angle with new ones.
