Setting Up the Oscilloscope
To connect oscilloscope probes
1-19
To connect oscilloscope probes
1 Attach the probe connector to the desired oscilloscope channel or
trigger input. Push it straight on until it latches into place.

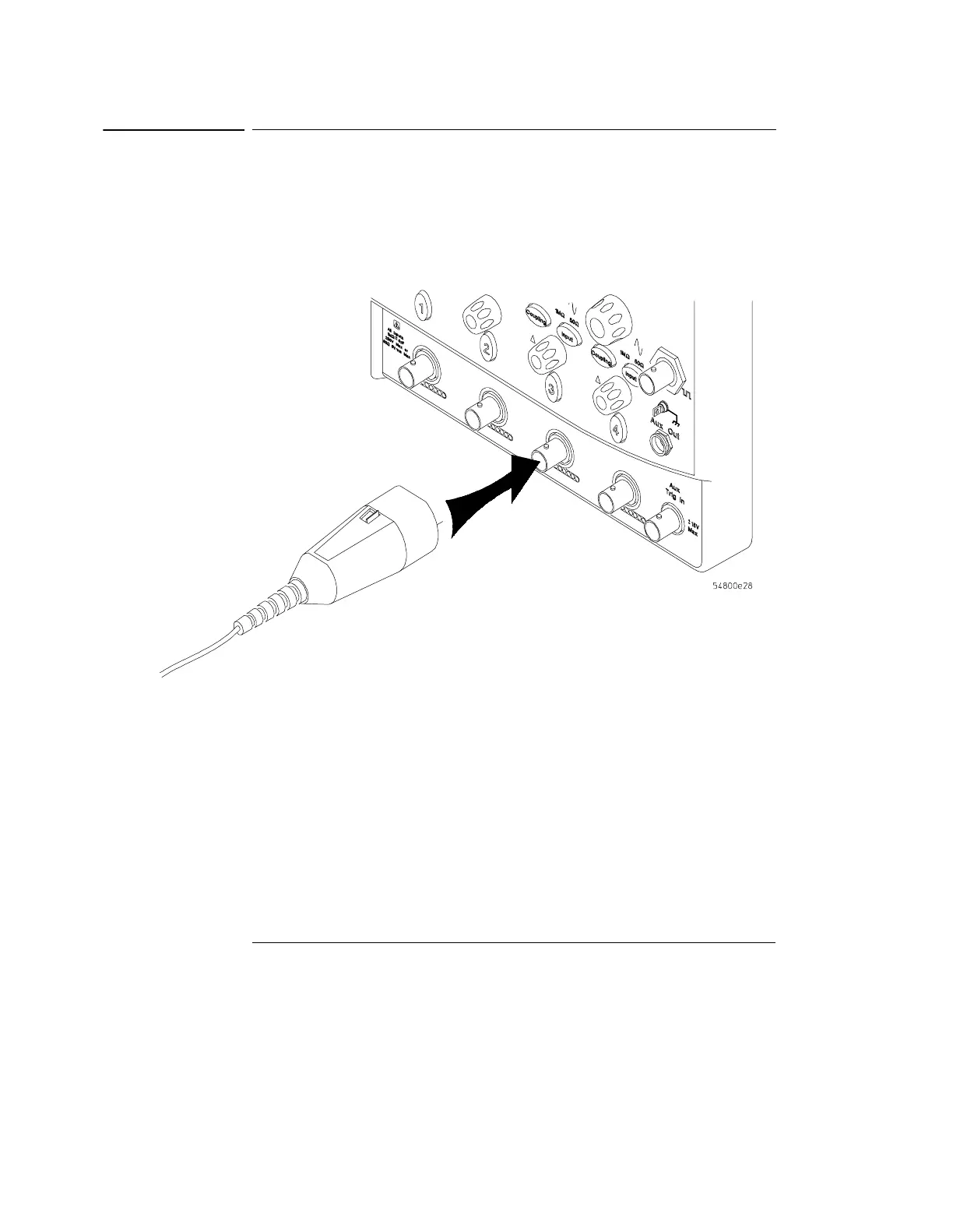

Figure 1-12
Attaching the Probe Connector
