Setting Up the Oscilloscope
To attach the optional trackball
1-12
To attach the optional trackball
1 Push in the latch on the trackball baseplate to extend the metal tabs.
Insert the tabs into the upper right of the slot on the side of the
oscilloscope. You can only install the trackball on the right side
of the oscilloscope.

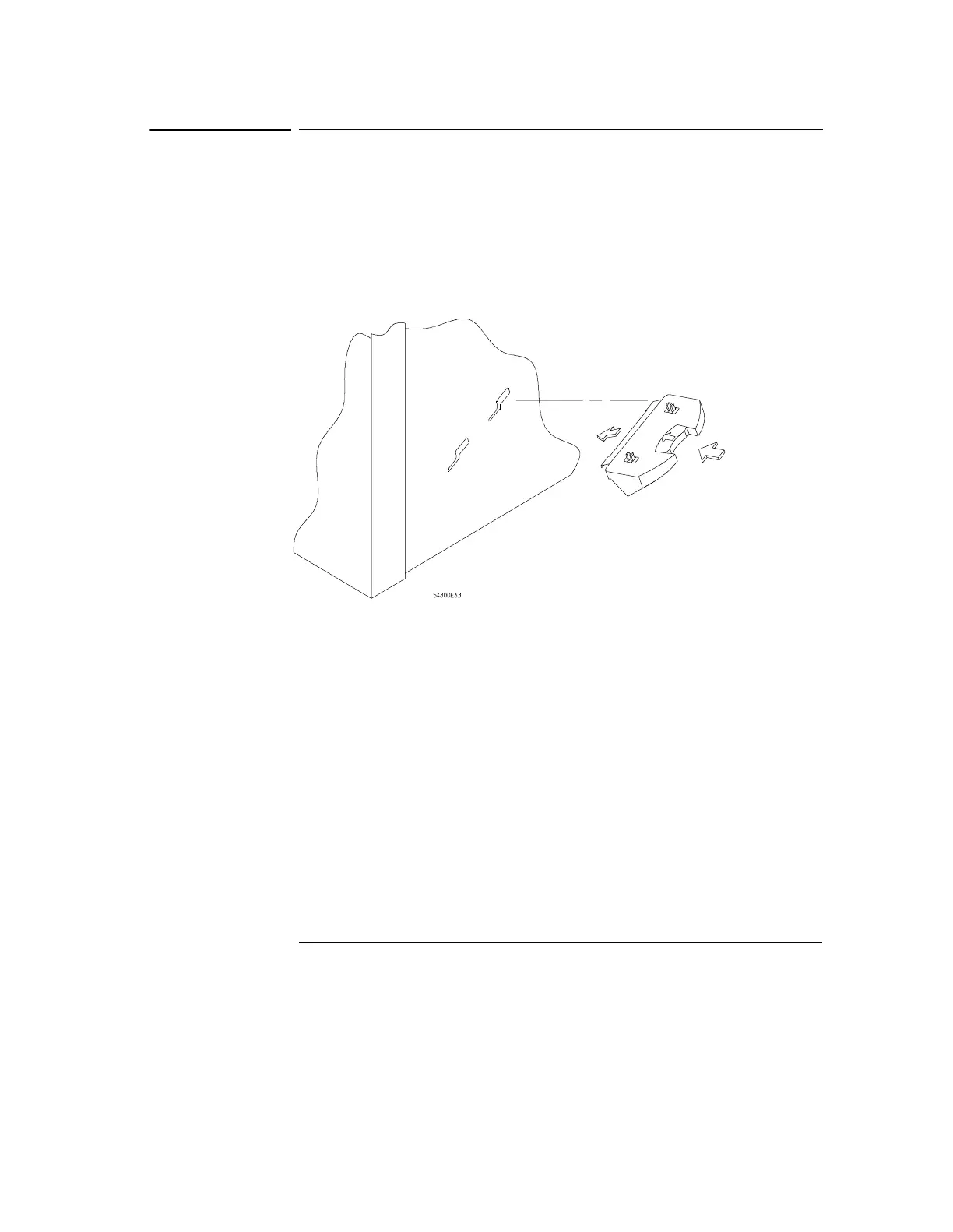

Figure 1-5
Connecting the Trackball Baseplate
