Using the Oscilloscope
3-22

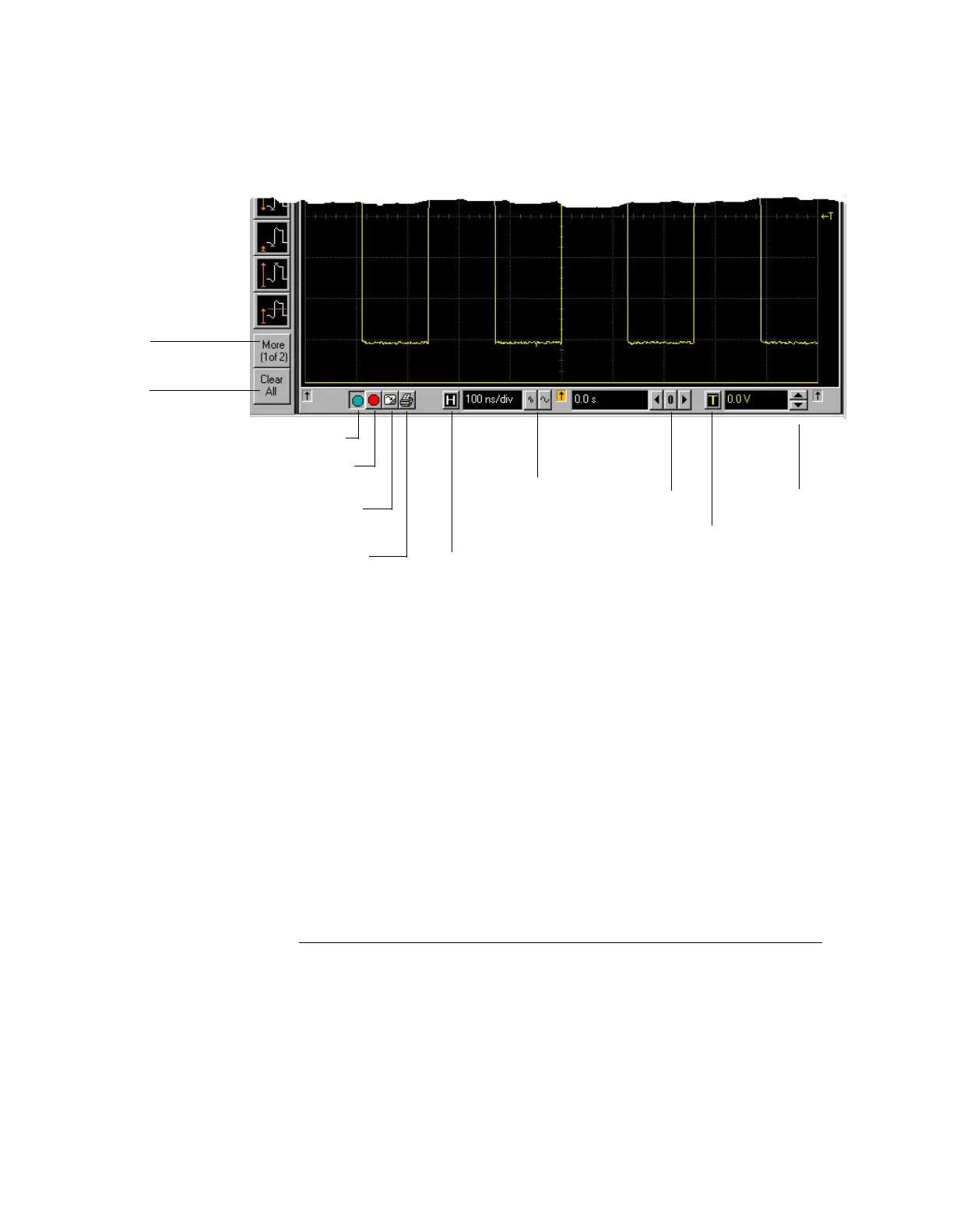

Figure 3-16
Infiniium Oscilloscope Bottom of Display in Graphical Interface Mode
To make it easy to see which controls affect each waveform, the
oscilloscope uses color consistently throughout the graphical interface.
These colors match the ones used on the front-panel knobs. For
example, the color of the waveform for channel 1 matches the color of
the knobs for that channel. If channel 1 is the trigger signal, all of the
trigger configuration items, including the trigger level reference icon (at
the right side of the waveform display area), will match that color. The
buttons associated with that channel, vertical scaling and offset settings,
ground reference indicator, and measurements done on that channel
also have the same color.
Set
trigger
level
Set
sweep
speed
Run
Turn off any
measurements
that are running
(use Clear display
to reset/restart
measurements)
Set
horizontal
position
(delay)
Stop
Clear
display
See more
measurements
Access the
Horizontal Setup
dialog box
Access
the
Trigger
Setup
dialog
box
Print
screen
