Using the Oscilloscope

3-25

Tab Display Area

The tab display area located beneath the waveform viewing area appears

when a measurement is on, mask testing is enable, a histogram is

enabled, markers are on, or color graded persistence is on.

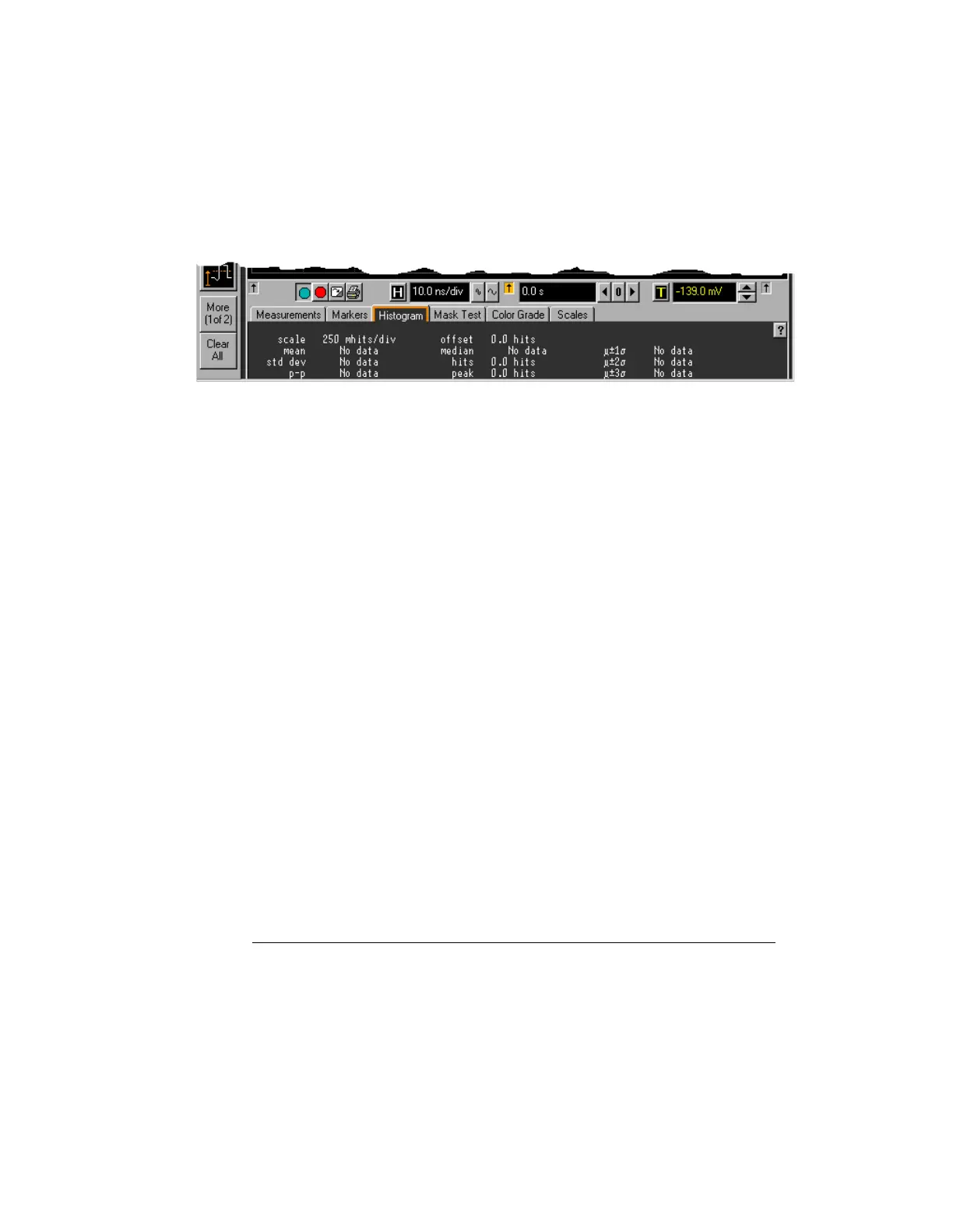

Figure 3-17

Tab Display Area

The display area shows information and statistics for the particular tab

that is selected. The type of markers that are shown in the waveform

viewing area depend on the tab that you have selected. The selected

tab has an orange border to reflect the type of markers being displayed.

For example, when the Histogram tab is selected, the markers are

histogram markers and are used to define the histogram window.

Waveform Display Area

The waveform display area shows the waveforms, and optionally, the

results of your measurements. Several display options, including a grid,

are available and can be configured using the graphical interface.

Table of Contents3
Setting up the Oscilloscope5
To Inspect Package Contents7
To Inspect Options and Accessories9
To Connect Power12
To Connect the Mouse or Other Pointing Device15
To Attach the Optional Trackball16
To Connect the Keyboard21
To Connect to the LAN Card22
To Connect Oscilloscope Probes23
To Connect a Printer26
To Connect an External Monitor28
To Connect an GPIB Cable29
To Tilt the Oscilloscope Upward for Easier Viewing30
To Turn on the Oscilloscope32
To Turn off the Oscilloscope33
To Verify Basic Oscilloscope Operation34
To Clean the Oscilloscope36
Working in Comfort37
About Repetitive Strain Injury39
Mice and Other Input Devices40
Using the Oscilloscope41
To Set the Oscilloscope to a Known Starting Condition47
To Start and Stop Waveform Acquisition48
To Clear the Waveform Display49
To Turn a Channel on or off50
To Change Input Impedance and Input Coupling51
To Adjust Vertical Scale and Offset52
To Adjust Sweep Speed and Horizontal Position53
To Magnify a Part of the Waveform Using Delayed Sweep54
To Set the Oscilloscope to Trigger on an Edge55
To Use the Markers56
To Use the Quick Measurements57
To Reinitialize the Oscilloscope58
To Switch between the Graphical Interface and Full-Screen Mode70
To Perform Basic User Interface Operations71
To Select a Command from the Menu Bar73
To Select a Command from a Context-Sensitive Menu74
To Change the Mouse Settings76
To Start and Stop Waveform Acquisition77
To Clear the Waveform Display78
To Print the Screen79
To Turn a Channel on or off80
To Adjust the Vertical Offset81
To Adjust Vertical Scaling83
To Access the Channel Setup84
To Set the Horizontal Reference Point85
To Adjust Sweep Speed86
To Adjust Horizontal Position87
To Access the Horizontal Setup88
To Zoom on a Section of the Waveform89
To Move the Markers Using the Graphical Interface91
To Make a Measurement on a Waveform92
To Access the Trigger Setup94
To Set an Edge Trigger95
To Enable 8.0 Gsa/S Sampling Mode on the 54845A96
To Enable 4.0 Gsa/S Sampling Mode on the 54835A97
To Set Dialog Box Preferences98
To Install the Printer Software101
To Set up the Network109
To Recover Your Infiniium Hard Disk110
Using the Built-In Information System111
To Access the Information System114
To Select the Built-In Information System Language120
To Navigate through the Information System121
To Access Context-Sensitive Information122
