Using the Oscilloscope

To perform basic user interface operations

3-32

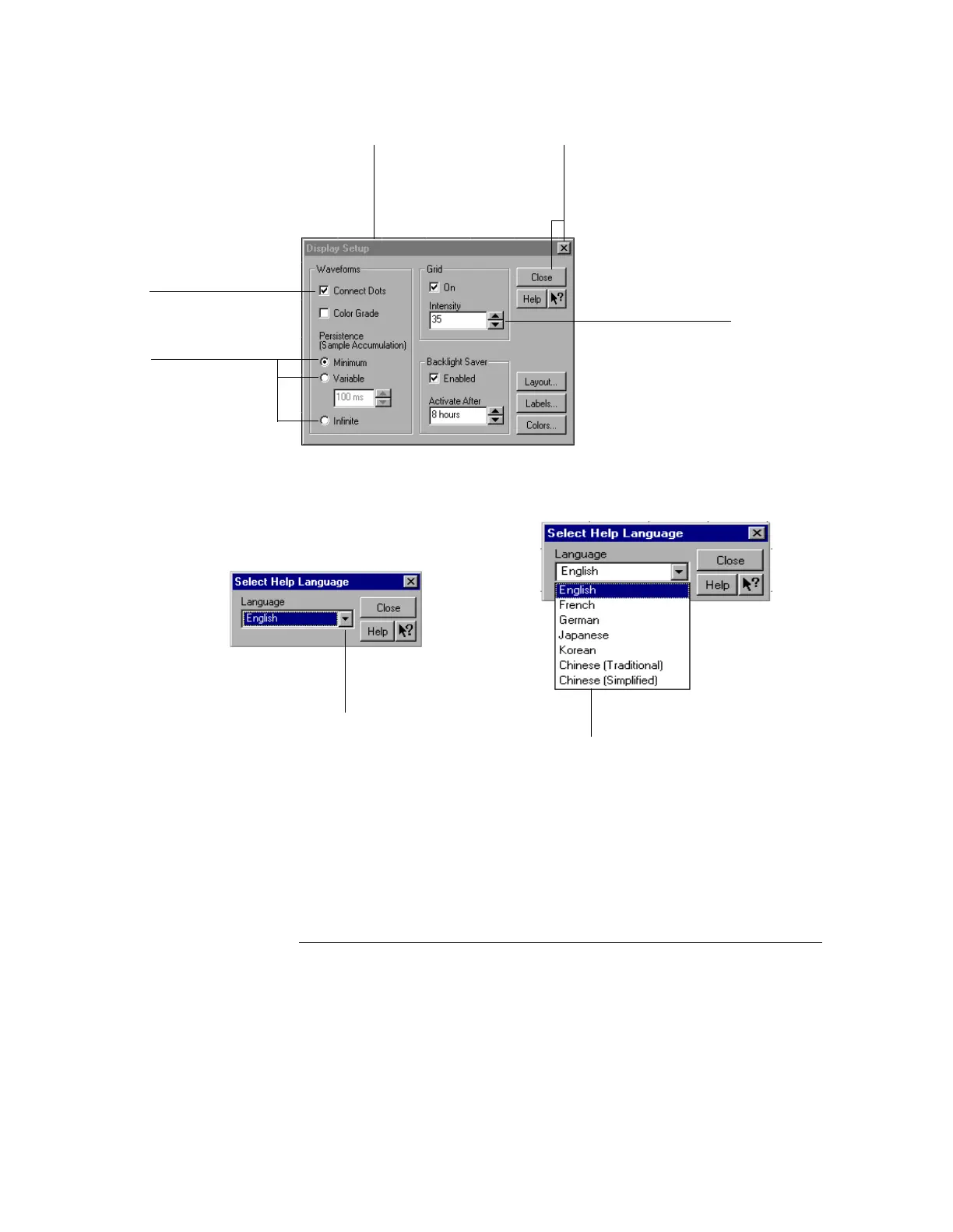

Figure 3-19

Dialog Box Interface Elements

Figure 3-20

Dialog Box with a Drop-Down List Box

Click to put a check mark

in the

check box

and

enable Connect Dots

mode

Click one of these

radio buttons

select Minimum,

Variable, or Infinite

persistence

Click on the upward

arrow in this

spin box

to increase the

intensity of the grid

Click on the

downward arrow to

decrease the

intensity of the grid

Click and drag the

title bar

to move the

dialog box on the

screen

Click one of these

Close buttons

close the dialog box

...to see the options you can

choose

Click the arrow in a

drop-down list box

...
