Agilent Technologies 5890 Installation Guide

8 Installing Rotary Valves
Installing Rotary Valves
Installing a valve on a side mount bracket
1 Secure the clamp ring to the side mount bracket with two
Torx T-20 screws.

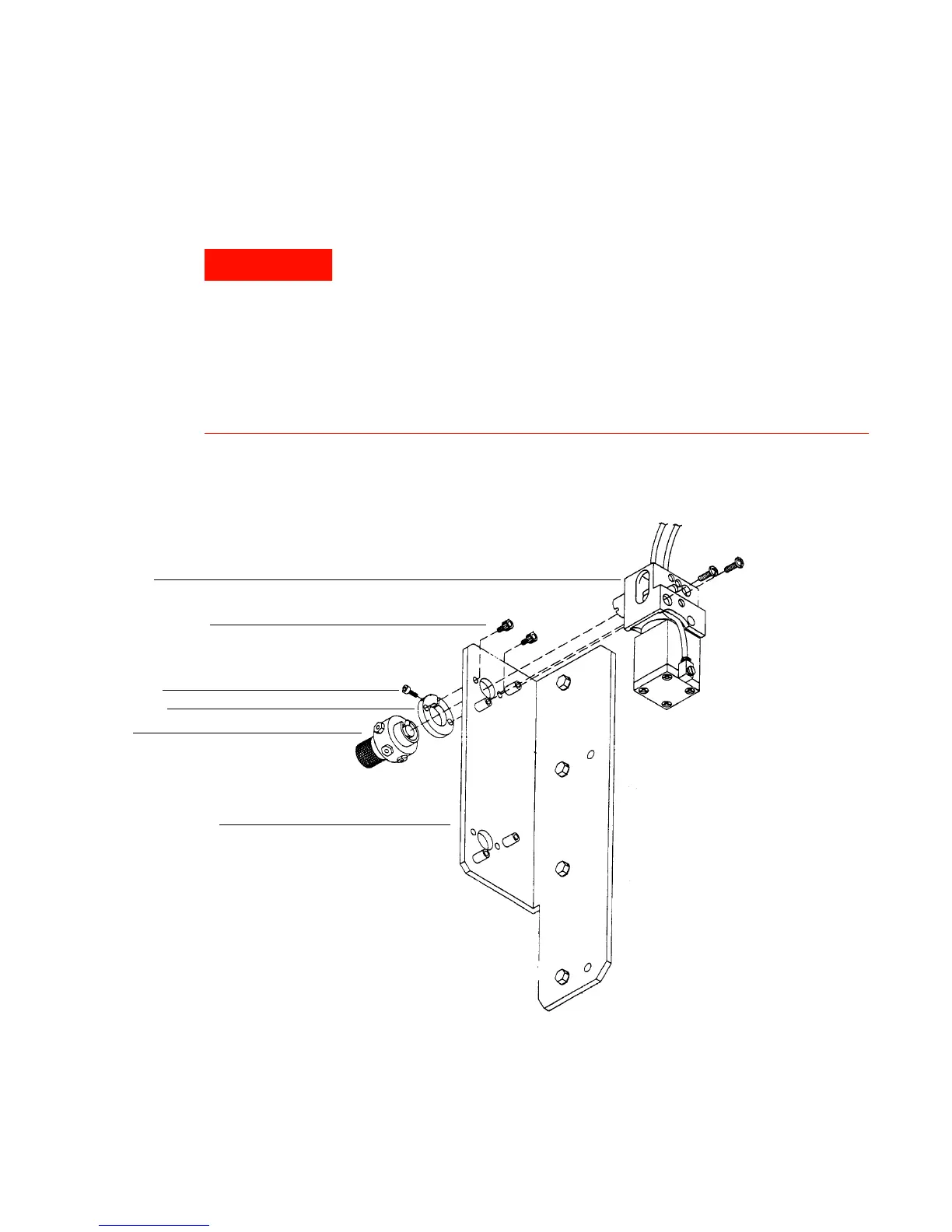

Figure 10 Attaching the clamp ring
WARNING
The oven, inlet, and detector may be very hot. Before proceeding,
turn off the oven and all other heated zones and let them cool down.
Harmful gases may be present. Hydrogen (if used) can present an
explosion hazard. Before proceeding, turn off all supply gases at
their sources.
Shock hazard. Before proceeding, turn off the GC and disconnect the
power cord.
Mounting screws
Set screw
Clamp ring
Valve
Actuator
Side mount bracket
