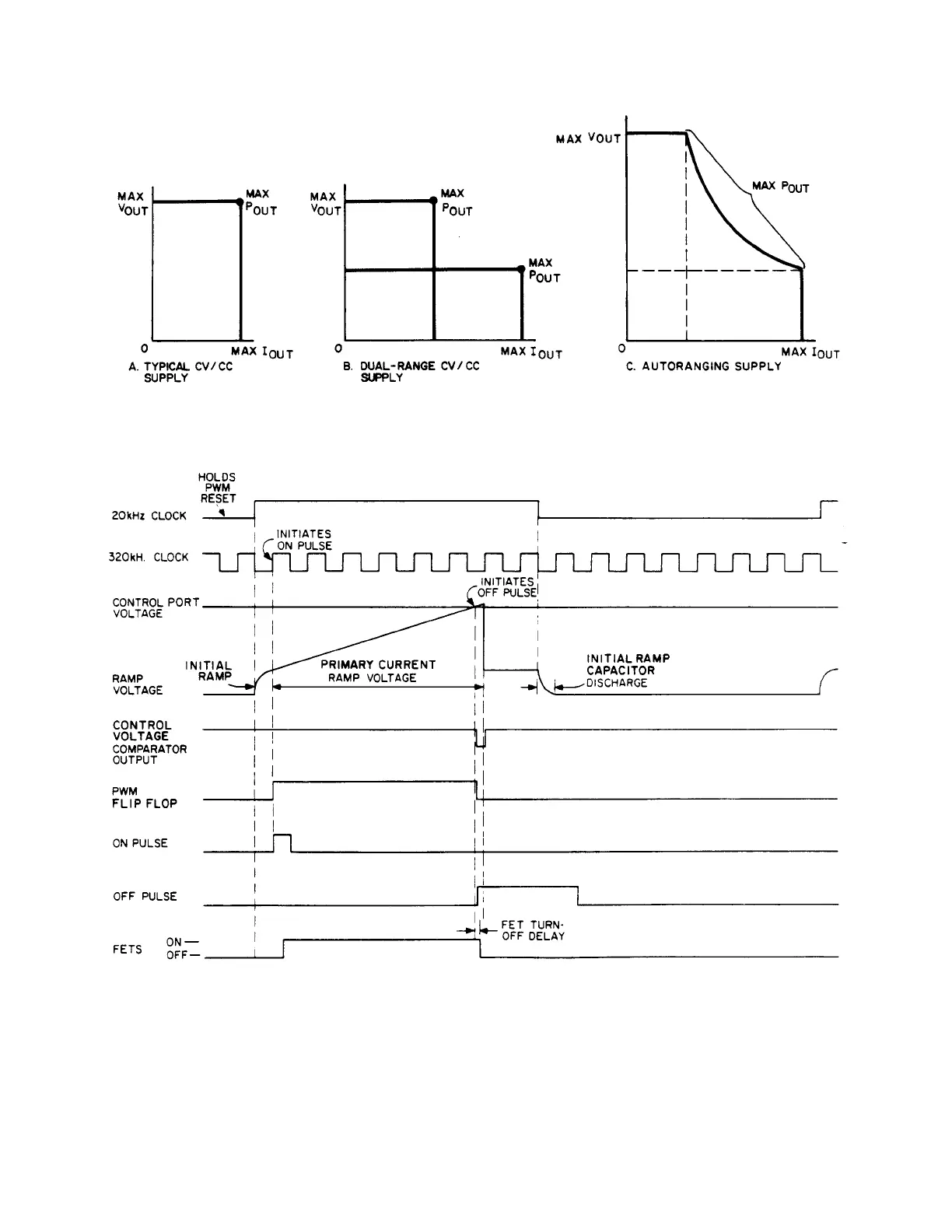

Figure 4-3. Output Characteristics; Typical, Dual Range, and Autoranging Supplies
Figure 4-4. FET Control Signals Timing Diagram
Power Mesh
Figure 4-5 is a block diagram of the power mesh. These circuits convert the ac input power to approximately 320Vdc, and
convert this dc voltage to the proper dc output voltage.
