Changing the Sample Loop
92
Changing the Sample Loop
1. Remove the two screws on the sides of the sampler cover shown below
and lift the cover. Support the cover while working in the sampler area.

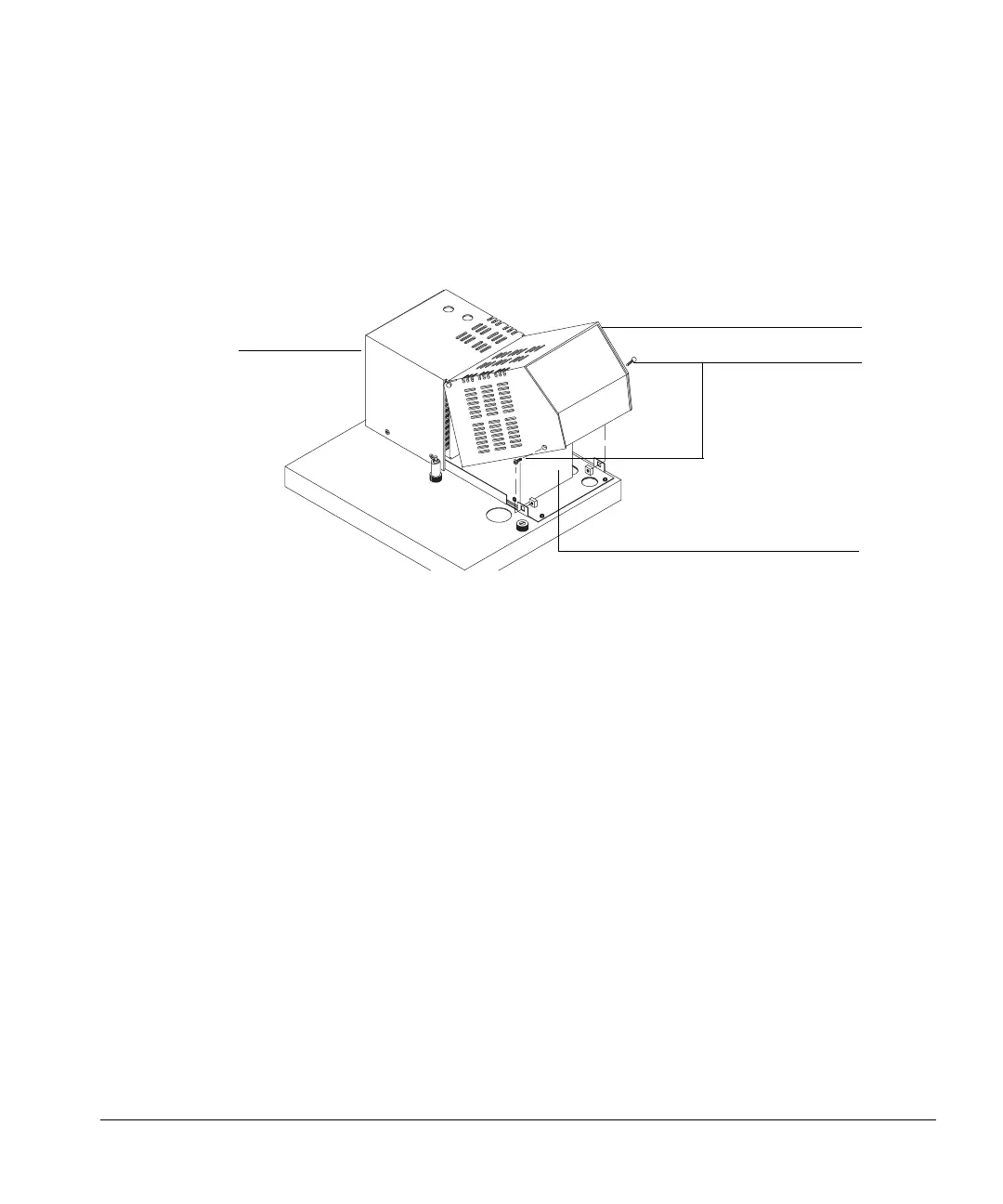

Figure 19. Removing the sampler cover
2. Loosen the two screws on the manifold cover (the stainless steel box) and
remove it (and the insulation inside it) from the valve compartment.
Remove screws
Manifold cover
Lift front cover
Rear cover
