To set the operating mode and trigger mode as required, do the following:
Before setting any values, press the Store/Recall softkey and press
the Set to Defaults softkey. Confirm the action by pressing the Yes
softkey.
Press the Ch 1 key to select channel 1.
Press the normal and inverted output keys to enable both outputs of
channel 1.
The Continuous trigger mode is enabled by default. Therefore, we
only need to select a Pulse waveform. To select a Pulse waveform,
simply press the Pulse softkey given on the Front Panel.

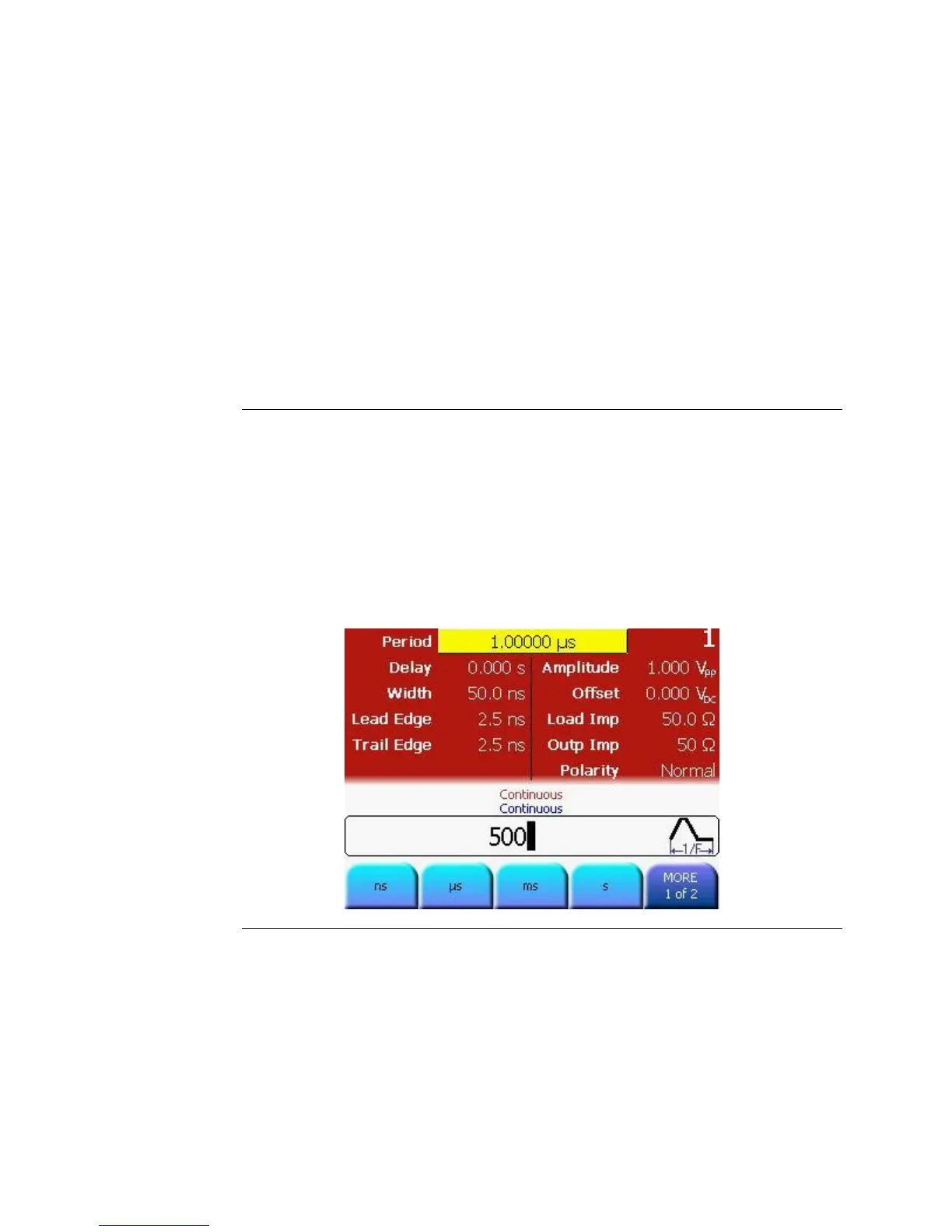

Pressing the Frequency softkey selects frequency. Press it again to
toggle to Period softkey. Set the value of the Period to 500ns.
For setting the value, you can use the Numeric Keypad or the Rotary
Knob.
From the various available options, choose the desired unit by simply
pressing it.
