Getting Started
81150A and 81160A Getting Started Guide 39

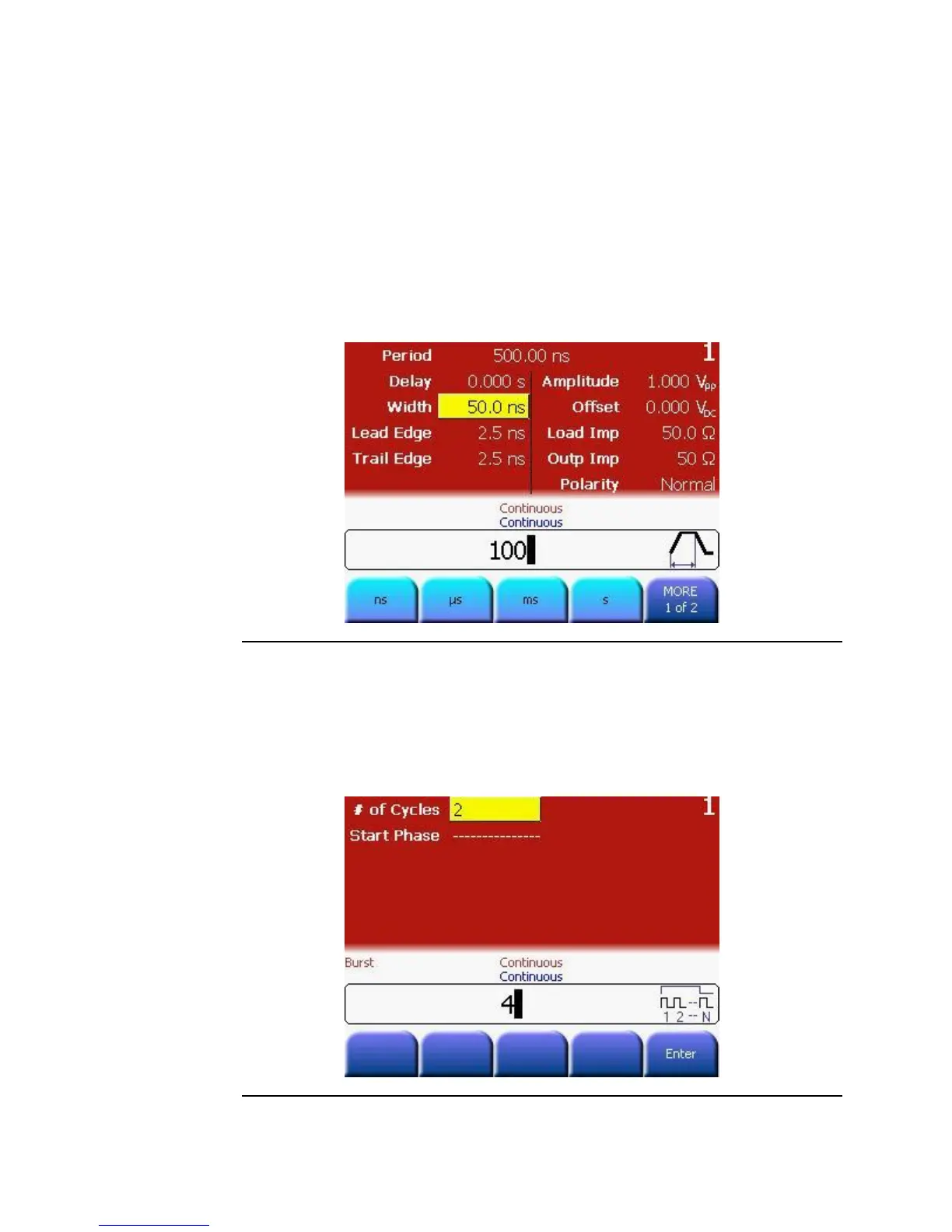

Setting the Width
 Press the Width softkey and set the value of Width to 100 ns. Use
the navigation cursor and rotary knob, or the cursor keys and rotary
knob to set the value.
 Press the Width softkey again to toggle to the different
representations of Width: Width, Duty Cycle, and Trail Delay.
 From the various available options, choose the desired unit by simply
pressing it.
Setting the Burst
length
 Press the Burst key to select Burst.
 Set the Burst Length to 4 using the numeric keypad or the navigation
keys.
