Using Visual Programming Environments The Agilent 816x VXIplug&play Instrument Driver
Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Fifth Edition 219
2 Double-click on the Add button to bring up the Device Configuration
screen, see Figure 13 .

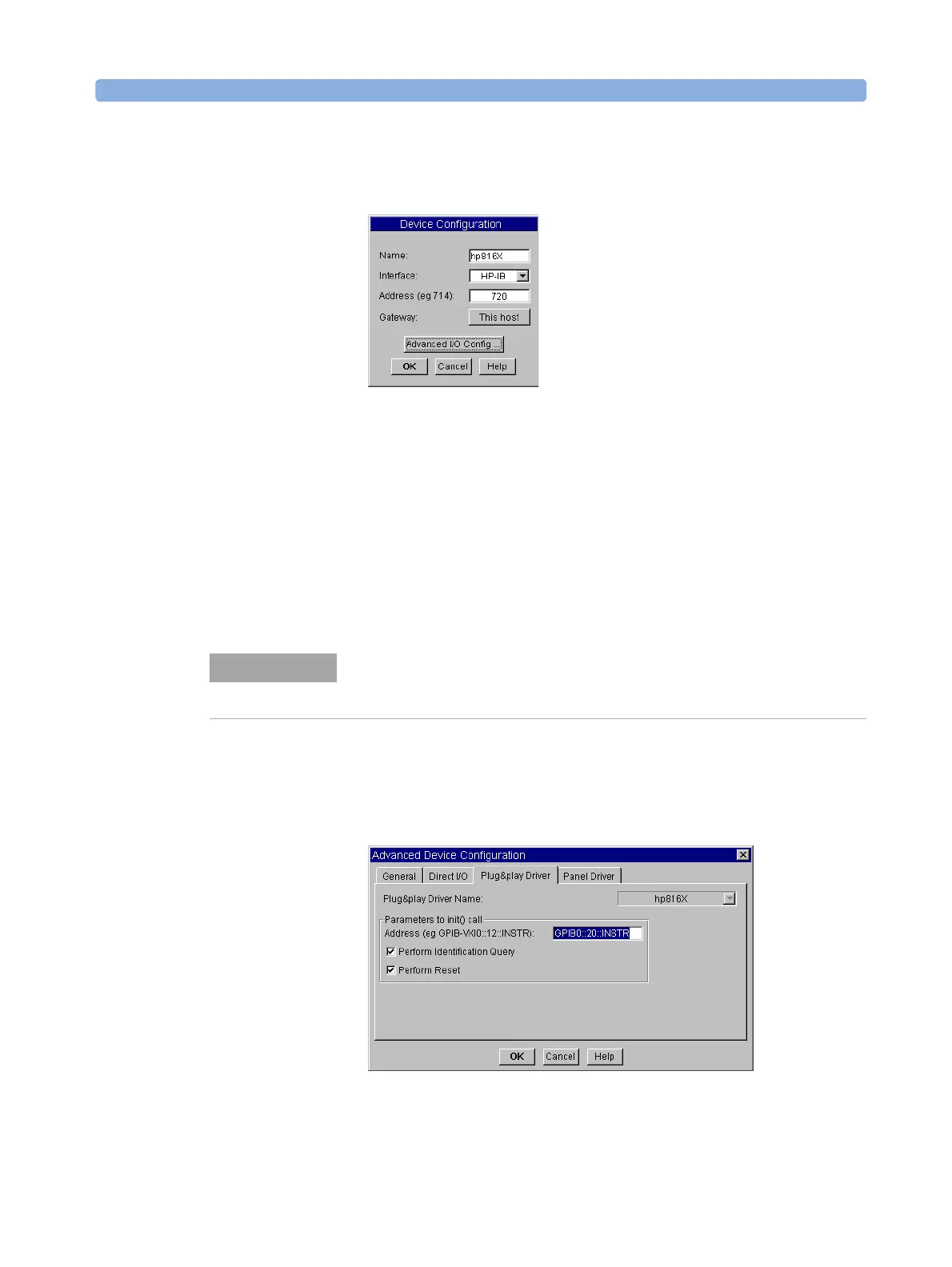

Figure 13 Device Configuration
3
Enter the following information:
•
Name: enter hp816X.
•
Interface: GPIB
•
Address: Enter the GPIB address of your GPIB interface board (the
default is 7). Append the GPIB address of your instrument (the
default is 20).
•
Gateway: This host.
4 Press Advanced I/O Config ..., the Advanced Device Configuration box
pops up. Select the Plug&play Driver tab, the box in Figure 14 appears.
Figure 14 Advanced Device Configuration - Plug&play Driver
5
Select hp816X from the Plug&play Driver Name drop-down list.
To find out or change the instrument’s GPIB address, press the Config
hardkey on the instrument’s front panel and choose GPIB address. The
instrument’s GPIB address appears, you may edit it if you wish.
NOTE
