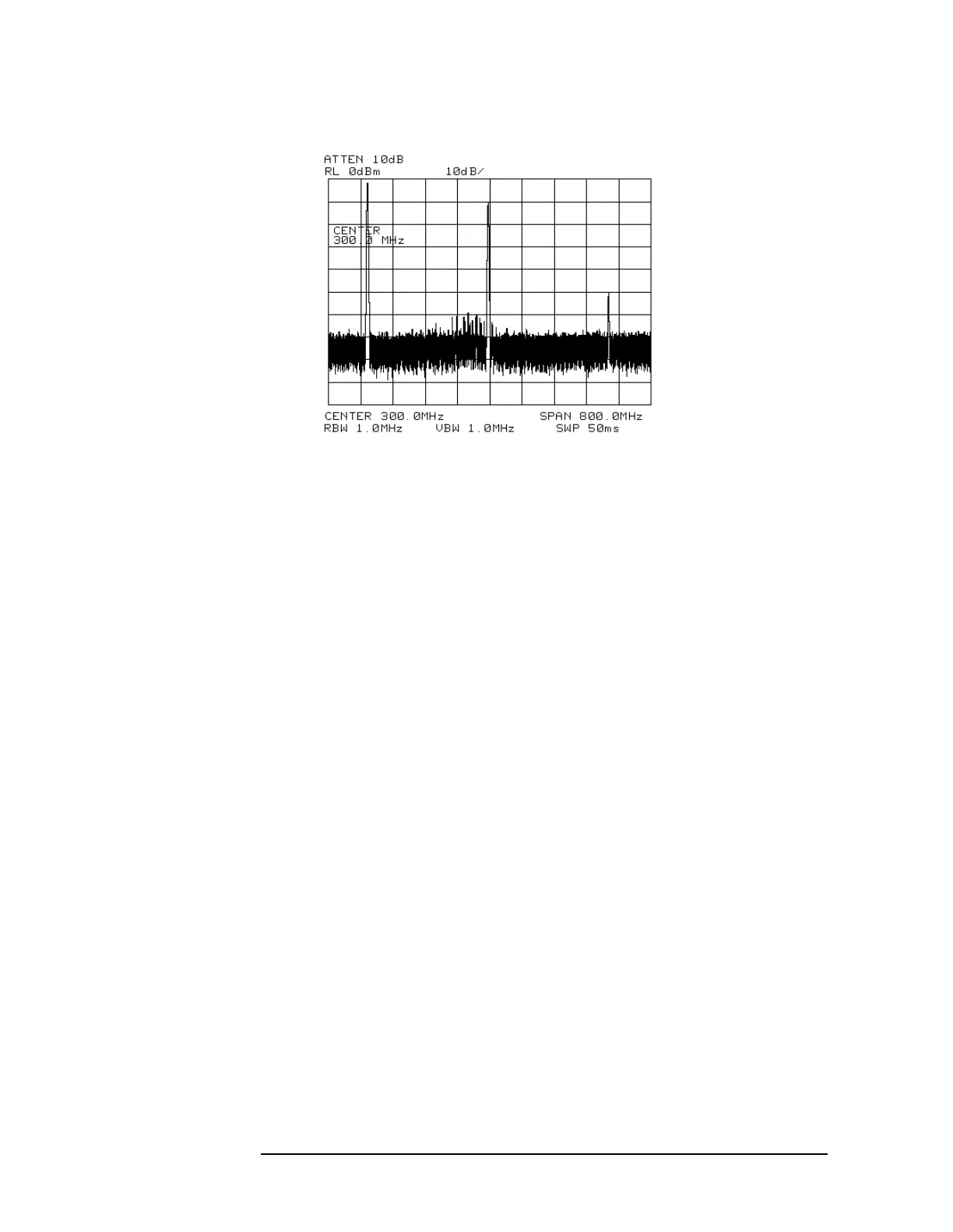

Chapter 1 41
General Information
Recommended Test Equipment
Low-pass filter Cutoff frequency: 50 MHz 0955-0306 P,M,V
Rejection at 65 MHz: >40 dB
Rejection at 75 MHz: >60 dB
Low-pass filter Cutoff frequency: 1.8 GHz 0955-0491 P
Rejection at >3 GHz: >45 dB
0.1 dB ripple
(two required)
Low-pass filter Cutoff frequency: 4.4 GHz 11689A P
Rejection at 5.5 GHz: >40 dB
(two required)
Power splitter Frequency range: 30 Hz to 50 GHz 11667C P,A,V,T
Insertion loss: 6 dB (nominal)
Output tracking: <0.35 dB, <26.5 GHz
<0.40 dB, <50 GHz
Equivalent output SWR:
1.29, <26.5 GHz
1.50, <40 GHz
1.65, <50 GHz
Service accessory kit No substitute 08562-60021 A,T
Tuning tool No substitute 8710-1010 A
Cables
Test cable Connectors: BNC (m)-to-SMB (f) 85680-60093 A,M
Length: ≥61 cm (24 in.)
Cable, RG-214/U Connectors: Type N (m) 11500A P,V
Length: ≥91 cm (36 in.)
Cable Connectors: SMA (m) 8120-1578 P
Length: 24 to 36 inches
Cable, 50 Ω coaxial Connectors: BNC (m) 10503A P,A,V
(five required) Length: ≥ 122 cm (48 in.)
Table 1-4 Recommended Test Equipment
Instrument Critical Specifications for Equipment
Substitution
Recommended
Model
Use
