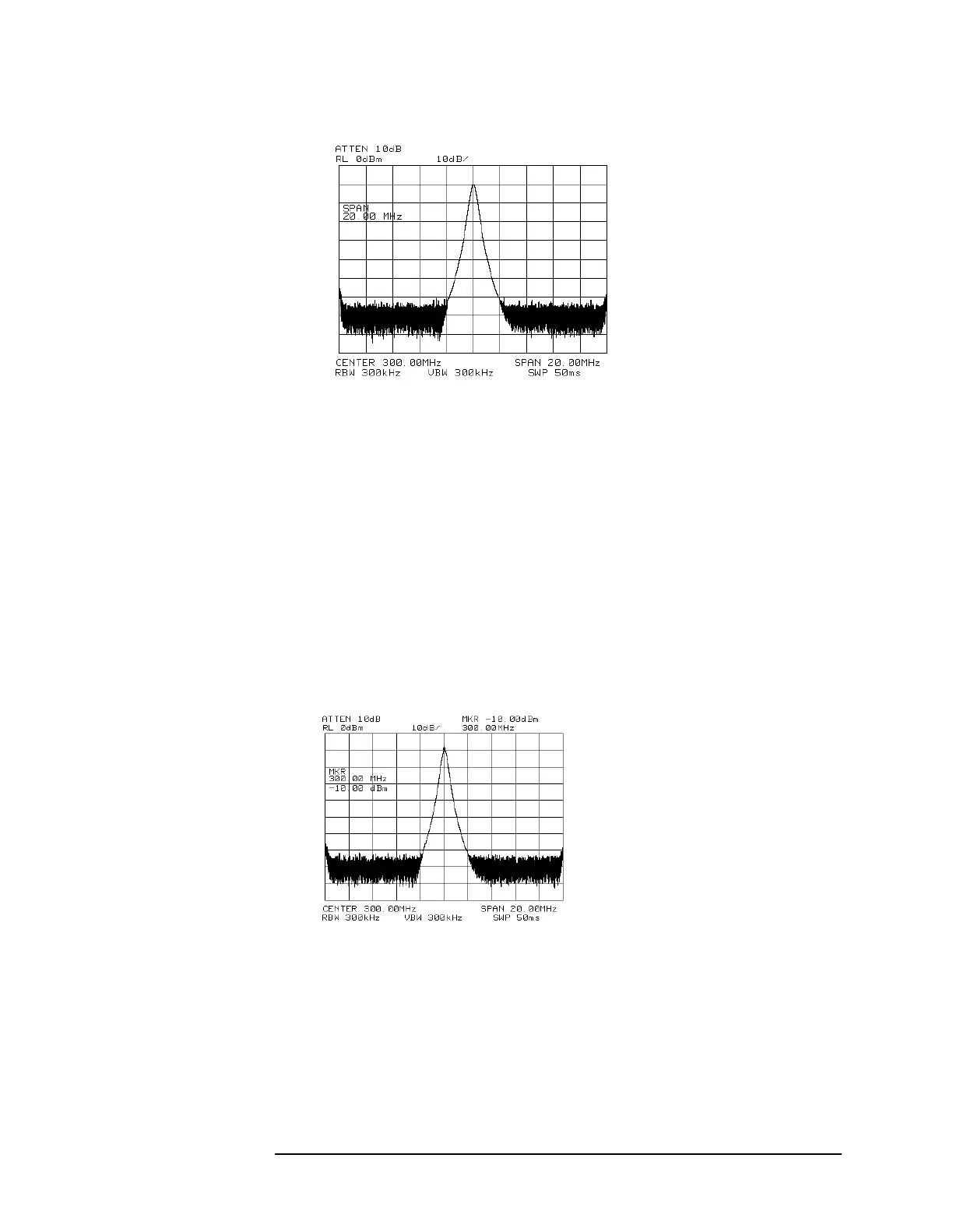

Agilent Technologies 8565EC

42 Chapter1
General Information
Recommended Test Equipment
Cable Frequency range: 30 Hz to 26.5 GHz 8120-4921 P,A,M,V
(two required) Maximum SWR: <1.4 at 26.5 GHz
Maximum insertion loss: 3 dB
Connectors: APC 3.5 (m), both ends
Length: ≥ 61 cm (24 in.)
Cable Frequency range: 30 Hz to 50 GHz 8120-6164 P,A,V,T
Maximum SWR: <1.55 at 50 GHz
Maximum insertion loss: 5.75 dB
Connectors: 2.4 mm (f) to 2.4 mm (m)
Length: ≥ 1 m (39 in.)
Cable, GPIB Required w/operation verification software 10833B P,A,M
(eight required) Required w/85629B test & adjustment
module
Length: 2 m (6.6 ft.)
Adapters
Adapter Type N (f)-to-BNC (m) 1250-1477 P,A
Adapter Type N (m)-to-BNC (f) 1250-1476 P,A,V
(three required)
Adapter Type N (f)-to-BNC (f) 1250-1474 P,V
Adapter Type N (m)-to-N (m) 1250-1475 P
Adapter Type N (f)-to-APC 3.5 (m) 1250-1750 A
Adapter(two required) Type N (m)-to-APC 3.5 (m) 1250-1743 P,M,V
Adapter Type N (m)-to-APC 3.5 (f) 1250-1744 P,V
Adapter Type N (m)-to-BNC (m) 1250-1473 P
Adapter Type N (m)-to-N (f) 1250-1472 P
Adapter Type N (f)-to-APC 3.5 (f) 1250-1745 P,V
(two required)
Adapter Type N (m)-to-SMA (f) 1250-1250 P,V
(two required)
Adapter Type N (f)-to-SMA (f) 1250-1772 P
Adapter BNC (f)-to-BNC (f) 1250-0059 A
Adapter BNC tee (f) (m) (f) 1250-0781 P,A,M,V
Adapter BNC (f)-to-SMA (m) 1250-1200 P,A,V
Adapter BNC (f)-to-dual banana plug 1251-2816 A,T
Adapter APC 3.5 (f)-to-APC 3.5 (f) 5061-5311 P,M,V
(two required)
Adapter APC 3.5 (m)-to-APC 3.5 (m) 1250-1748 P,V
(two required)
Adapter 2.4 mm (f)-to-2.4 mm (f) 11900B P,A,T,V
Adapter APC 3.5 (f)-to-2.4 mm (f) 11901B P
Table 1-4 Recommended Test Equipment
Instrument Critical Specifications for Equipment
Substitution
Recommended
Model
Use
