Analyzer Messages
Interpreting Analyzer Messages

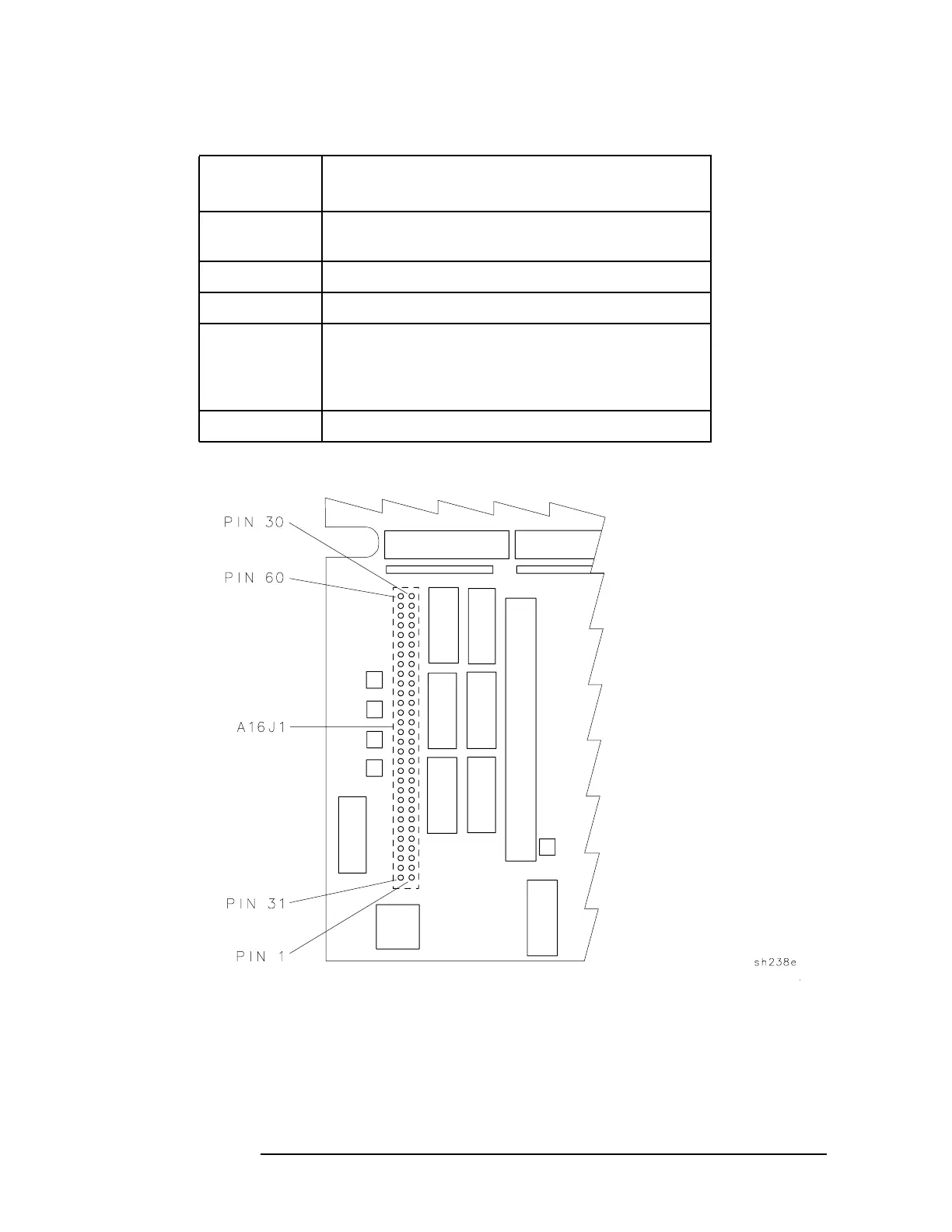

Figure 14-1 A16J1 Connector-Pin Orientation
Table 14-1 Possible Cause of the Error Message ADC-GND FAIL
A16J1
Pin Number
Possible Error-Message Source
1 A14 log amplifier assembly
An assembly installed in the card cage
3 An assembly installed in the card cage
5 An assembly installed in the card cage
7 A16 processor/video assembly
An assembly installed in the card cage
Signal incorrectly applied to the AUX VIDEO
output
31 A7 analog interface
