Operating Concepts
Measurement Calibration

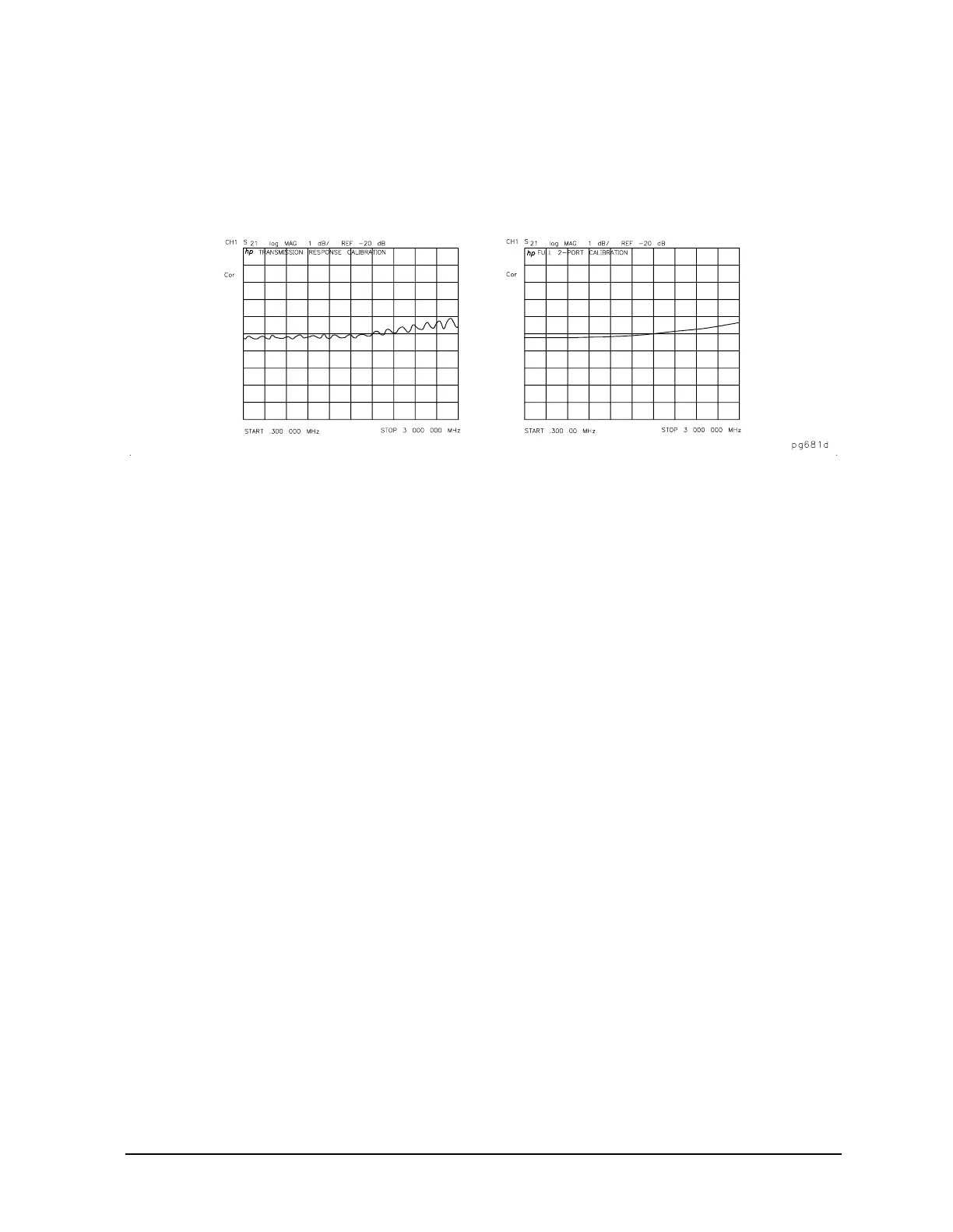

The response of a device in a log magnitude format is shown in Figure 7-42. Figure 7-42a
shows the response using a response calibration and Figure 7-42b the response using a full
two-port calibration.
Figure 7-42 Response versus Full Two-Port Calibration
