Supplement for the User’s Guide (Firmware Version 7.68)
Adapter Removal Using ECal (ES Analyzers Only)
8. Press to complete the technique for calculating the new error
coefficients and overwrite the current active calibration set in use.
This process uses up an internal memory register. The calibration in this register is not
the calibration created by adapter removal, rather it is a "scratch" calibration. You may
wish to delete the register, or re-save the new calibration in this register as shown in
the following step.
9. To save the results of the new calibration set, press
.
NOTE Adapter removal can leave a residual state in internal memory. This is not a
valid instrument state and should be deleted.
10.Connect the DUT to the network analyzer as shown in Figure 4-22 (or Figure 4-23) to
perform calibrated measurements.

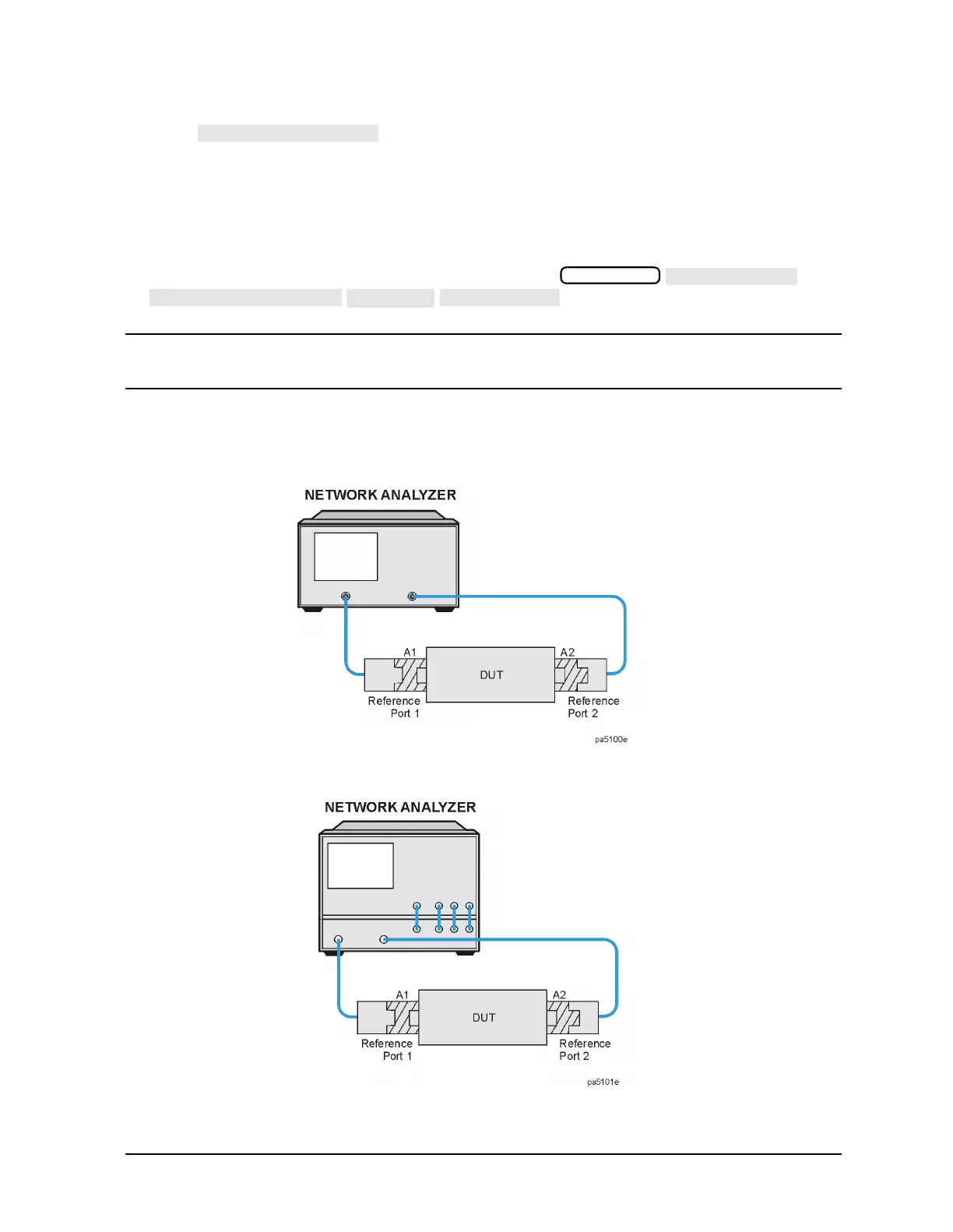

Figure 4-22 8753ET/ES Calibrated Measurement
Figure 4-23 8753ES Option 011 Calibrated Measurement
