Agilent Technologies Cary 600 Series User Manual

Unpacking and Installation
30 Agilent Cary 600 Series FTIR Spectrometers and Microscopes User’s Guide
Spectrometer penthouse connections
The penthouse connectors include connectors for external
accessories, external detectors, and the data system (via USB). Do
not open the penthouse -- there are no user-serviceable parts inside.
To access the connectors, lift the spectrometer cover.

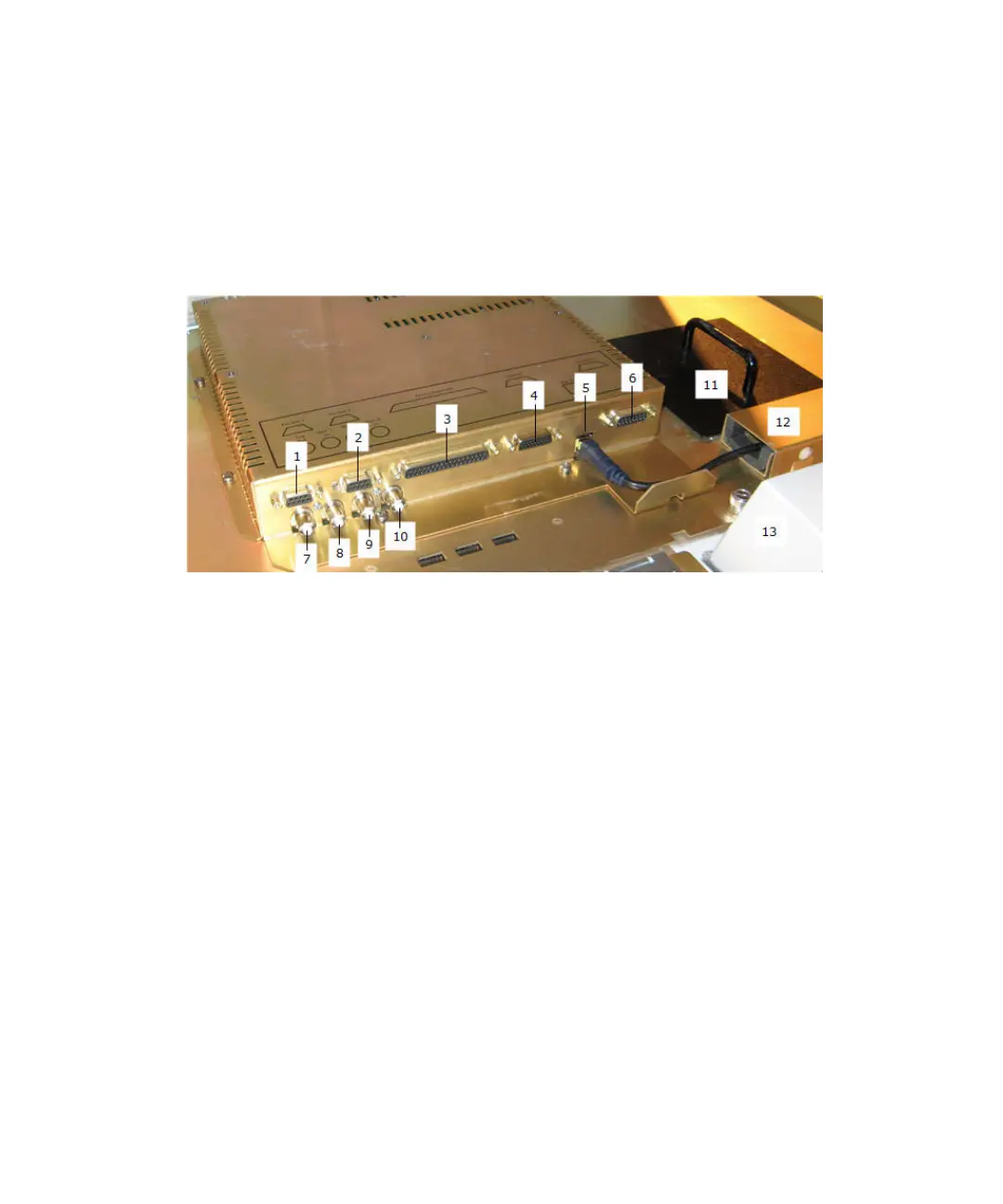

Figure 7. Spectrometer penthouse connections
1 EXT DET 1 - Used to connect an
external detector
2 EXT DET 2 - Used to connect
an external detector
3 Analog Expansion - Provides
alternate signal paths and
controls
4 FPA/TRS - Used to connect either
an FPA detector or TRS accessory
5 USB 2.0 - Data system
connector to PC
6 Accessory - Used to connect
an additional accessory
7 TRIG OUT - Located under the EXT
DET 1 connector, but obscured in
this image. Used to trigger to an
external device
8 USER 1 IN - Used to receive a
signal from an external device
9 SIGNAL OUT - Used to send a
signal to an external device
10 USER 5 IN - Used to receive a
signal from an external device for
second ADC (if fitted)
11 Beam splitter access cover 12 Metal cover for cable routing
13 Sample compartment connectors
(not shown)
