Agilent Technologies DSO3202A User Manual

Vertical Controls
Math Functions Control
2-16

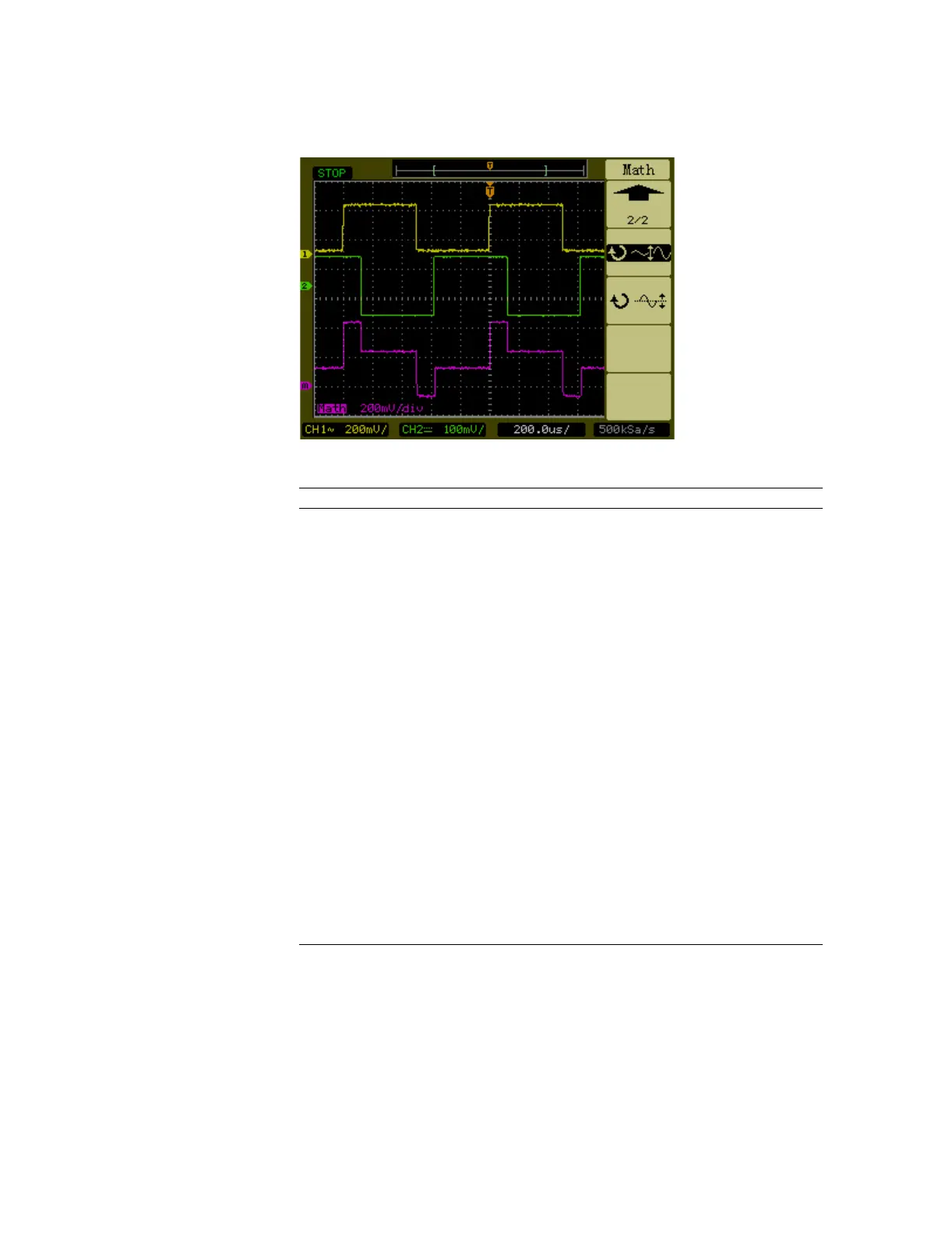

Figure 2-11
Math Scale Setting
Table 2-3 Math Menu
Menu Settings Description
Operation
A+B
A-B
AxB
FFT
Add source A to source B
Subtract source B from source A
Multiply source B by source A
Fast Fourier Transform
Source A
CH1
CH2
Set CH1 or CH2 as source A
Source B
CH1
CH2
Set CH1 or CH2 as source B
Invert
ON
OFF
Inverted display of the Math waveform.
Non-inverted display of the Math
waveform.
