2-55
Automatic Measurement Controls
The Meas button located on the front panel actives the automatic measurement
system. The instructions below will guide you in using the various measurement
functions.
Pressing the Meas button produces the Measure menu used to select automatic
measurement. The oscilloscope has 20 automatic measurements: Vpp, Vmax,
Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise
Time, Fall Time, Delay1-2, Delay1-2, +Width, -Width, +Duty, and -Duty. It also
has a hardware counter capability.

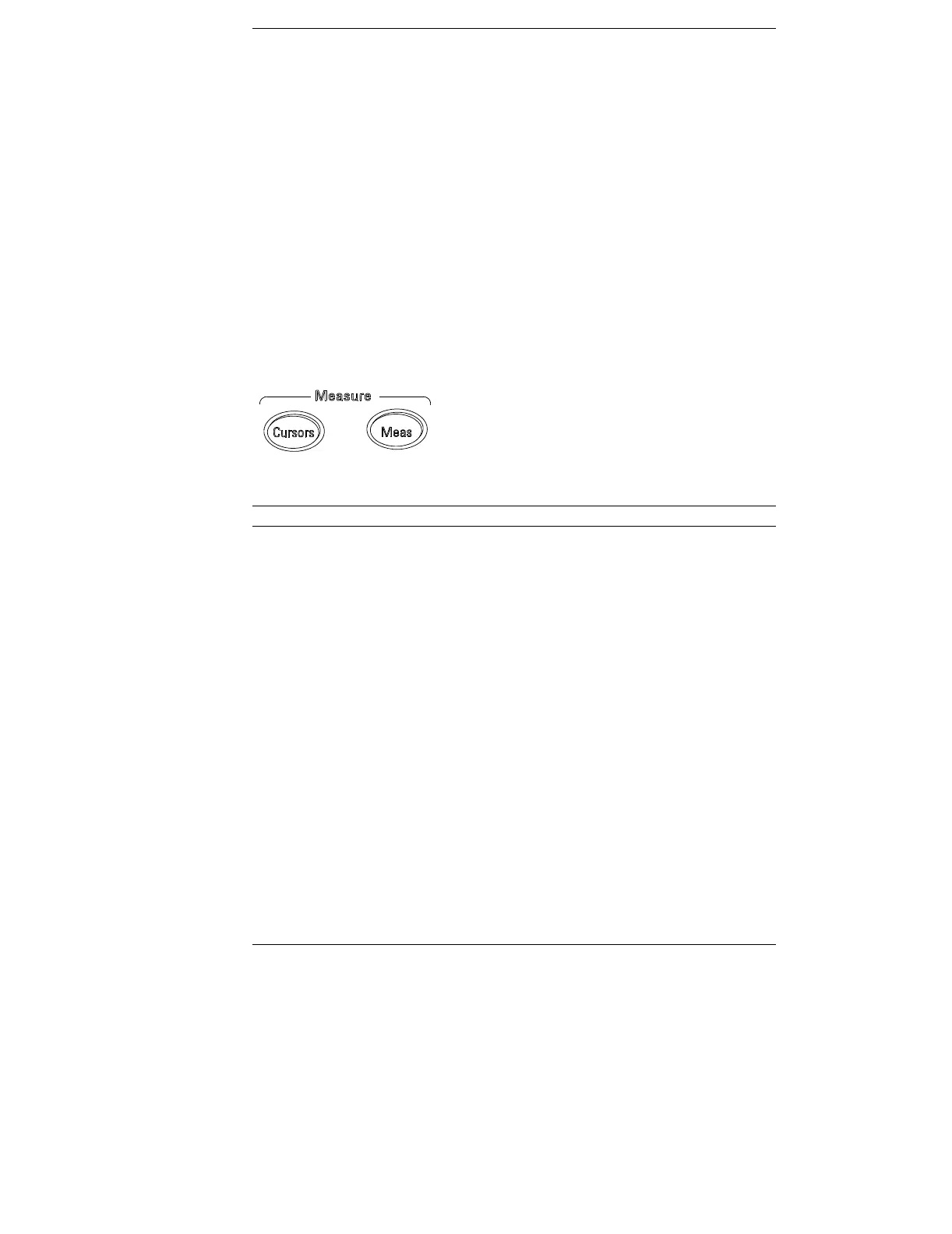

Figure 2-30
Meas Button
Table 2-24 Measure Menu
Menu Settings Comments
Source CH1
CH2
Selects channel 1 or channel 2 as the waveform to be measured
Voltage Selects the voltage measurement menu
Time Selects the time measurement menu
Clear Clears the on screen measurement results
Display All OFF
ON
Turns off all measurements
Turns on all measurements
To Next Page
