Horizontal Controls
Horizontal System Setup
2-23
Horizontal System Setup

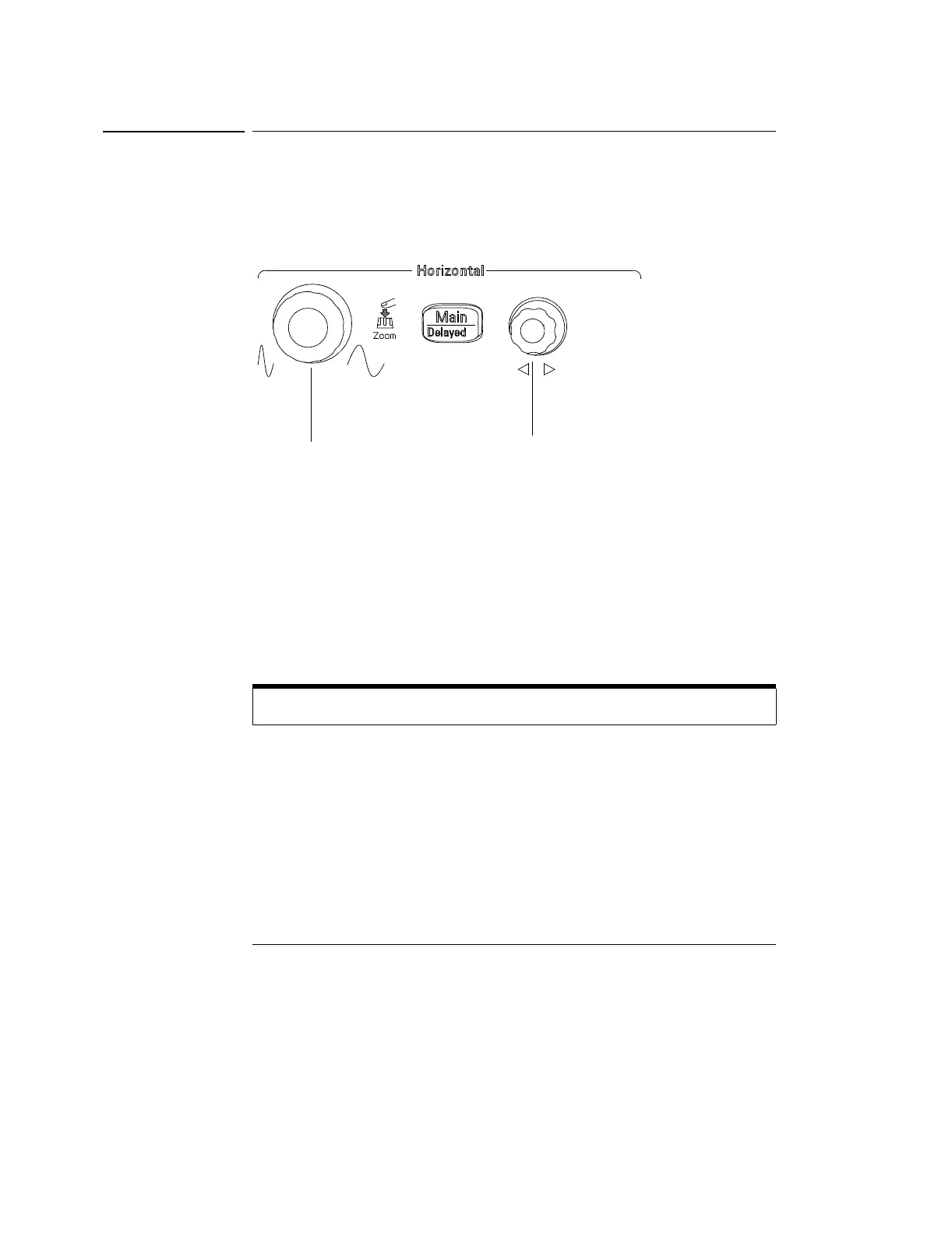

Figure 2-13 shows the front panel horizontal system controls.
Figure 2-13
Horizontal Controls
The following exercise guides you through these buttons, knobs, and status bar.
1 Turn the scale knob and notice the change it makes to the status bar.
The scale knob changes the sweep speed in a 1-2-5 step sequence and the value
is displayed in the status bar.
2 Turn the position knob to move the trigger point with respect to the
center of the screen.
3 Press the
Main/Delayed key to display the associated menu.
In this menu, you can enter or exit the Delayed Sweep mode, set the display to
Y-T or X-Y format, and alter the Trig-Offset and Holdoff values.
Pressing the horizontal scale knob is another way to enter or exit the delayed sweep
mode.
Scale knob
Position knob
