Automatic Measurement Controls
Measurement Concepts
2-59
Measurement Concepts
This section describes the way that the automatic measurements are made.
Voltage Measurements
There are 10 automatic voltage measurements:
• Vpp (Peak-to-Peak Voltage)
• Vmax (Maximum Voltage)
• Vmin (Minimum Voltage)
• Vavg (Average Voltage)
• Vamp (Amplitude Voltage = Vtop - Vbase)
• Vtop (Top Voltage)
• Vbase (Base Voltage)
• Vrms (True Root-Mean-Square Voltage)
•Overshoot
•Preshoot

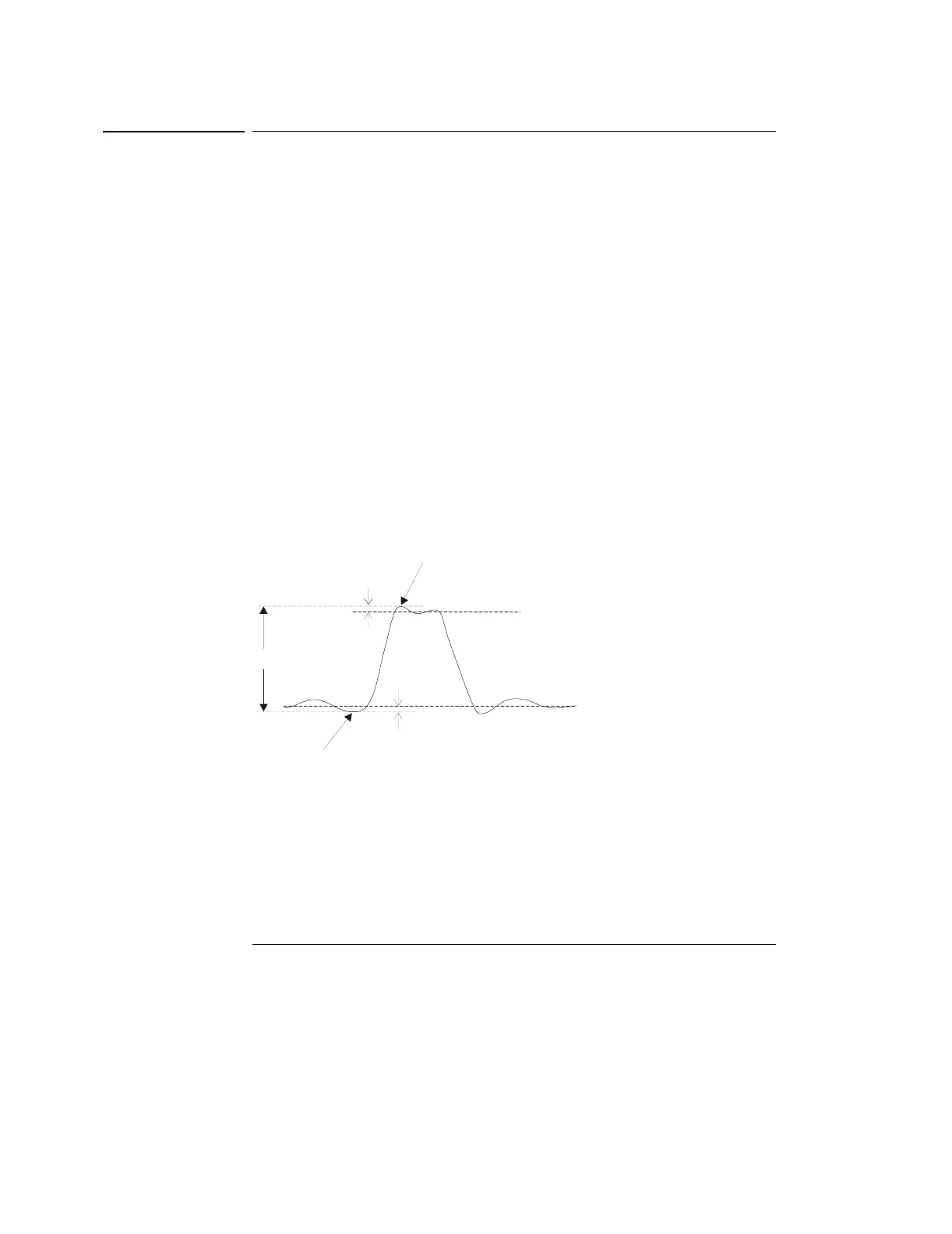

Figure 2-31 shows the voltage measurement points.
Figure 2-31
Voltage Measurement Points
Vbase
3000b01.cdr
Vtop
Overshoot
V
max
Overshoot
Preshoot
Vpp
Vmin
