Agilent Technologies DSO3202A User Manual

Automatic Measurement Controls
Measurement Concepts
2-62

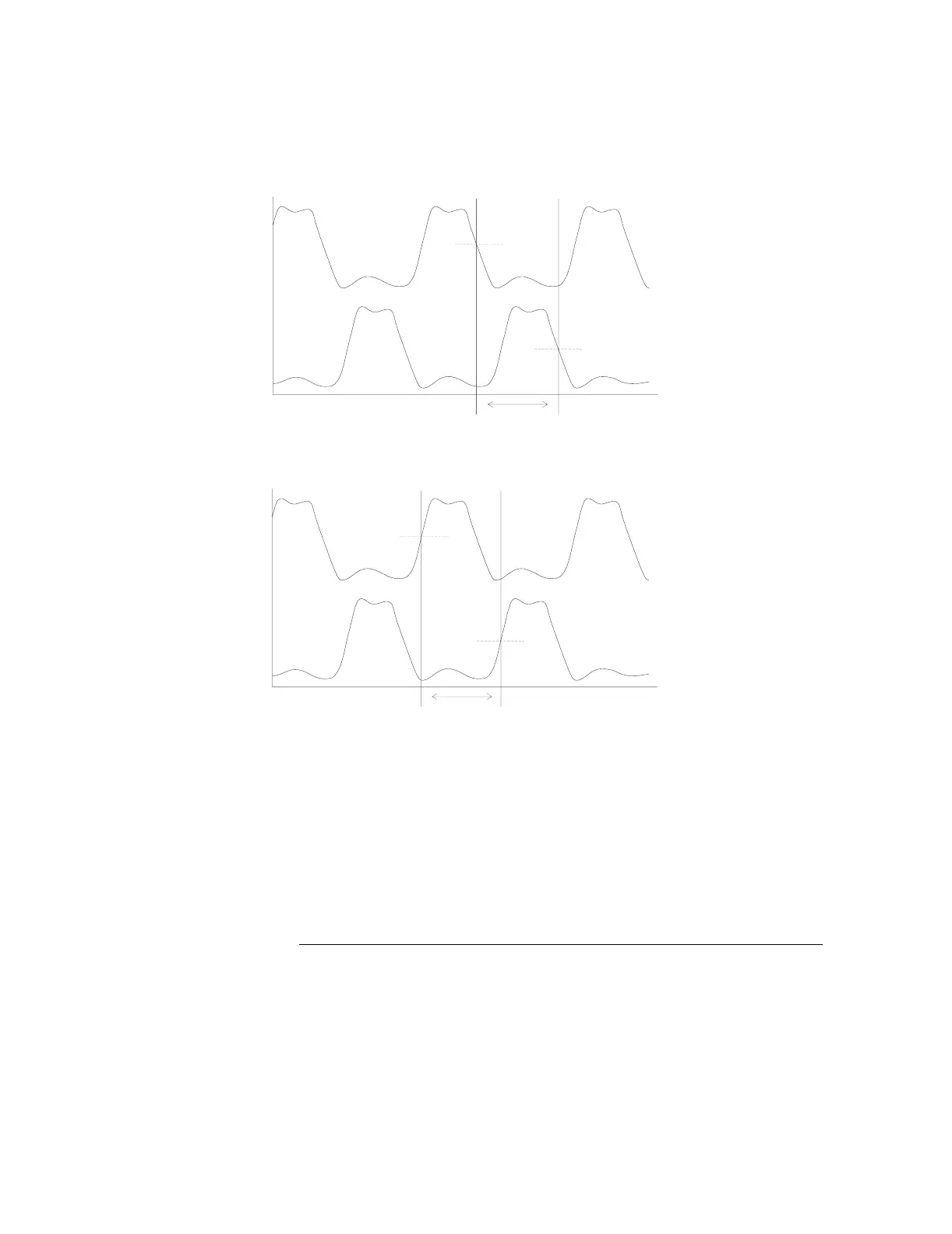

Figure 2-35
Delay Measurements
Delay from channel
1 to channel 2 falling edge
Time
origin
line
3000b05.cdr
50%
Channel 2
Channel
1
50%
Delay from channel
1 to channel 2 rising edge
Ti
me
origin
line
3000b06.cdr
50%
Channel 2
Channel
1
50%
