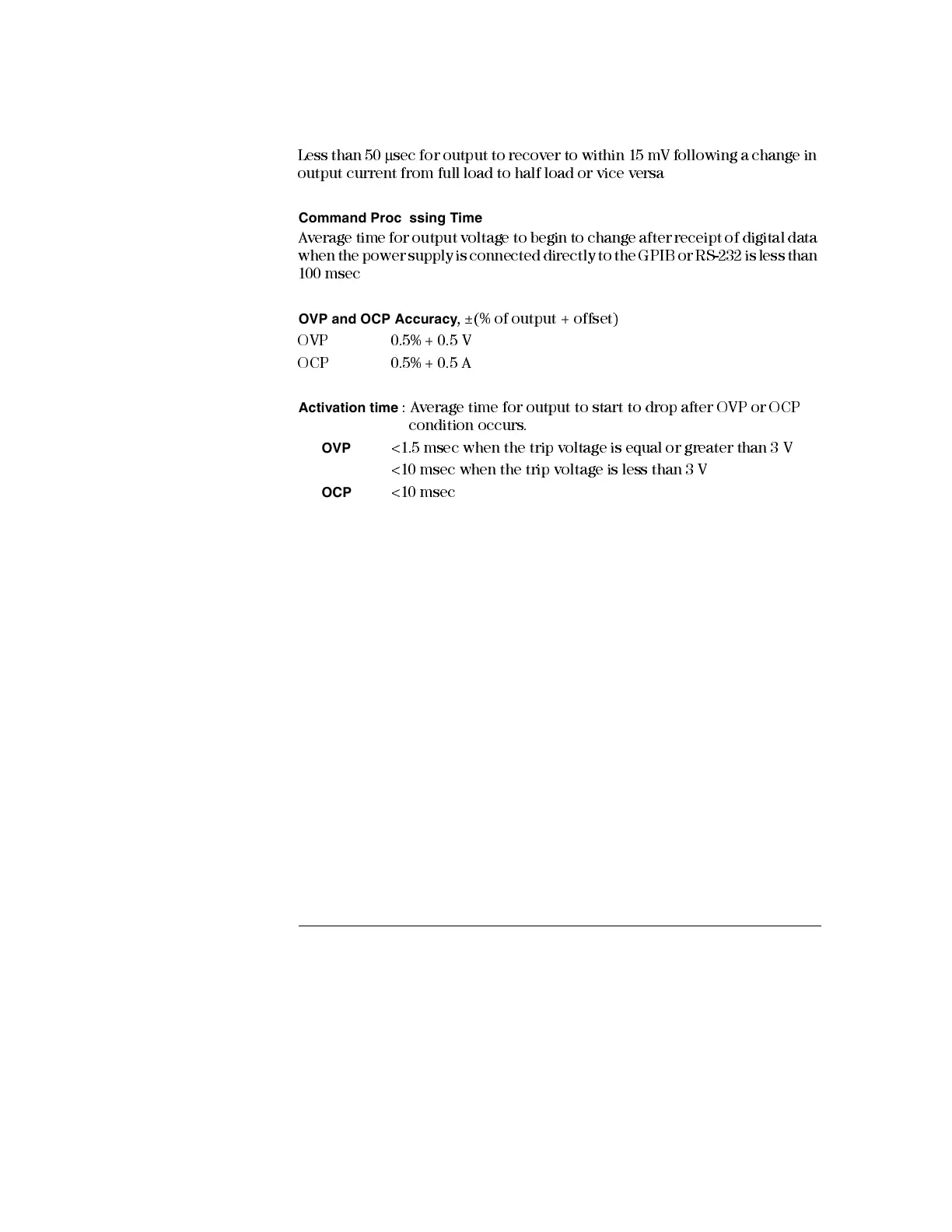

Chapter 8 Specifications
Performance Specifications
152
Transient Response Time
Less than 50
μ
sec for output to recov er to within 15 mV following a c hange in
output current from full load to half load or vice versa
Command Processing Time
A verage t ime for output voltage to begin to change after receipt of digital da ta
when the power supply is connected directly to the GPIB or RS-232 is less than
100 msec
OVP and OCP Accuracy
, ±(% of output + offset)
OVP 0.5% + 0.5 V
OCP 0.5% + 0.5 A
Activation time
: Average time for output to start to drop after OVP or OCP
condition occurs.
OVP
<1.5 msec when the trip voltage is equal or greater than 3 V
<10 msec when the tri p voltage is less than 3 V
OCP
<10 msec
