Chapter 4 Remote Interface Reference
Simplified Programming Overview
70
Power Supply Programming Ranges
The
SOURce
subsystem requires parameters for program ming values. The
available programming value for a parameter varies according to the desired
output range of the power supply. The following table lists the programming
values avail able and
MINimum
,
MAXimum
,
DEFault
and reset values of the
Agil ent E3633A and E3634A power suppl ies.
Refer to this table to identify programming values when programming the power
supply.

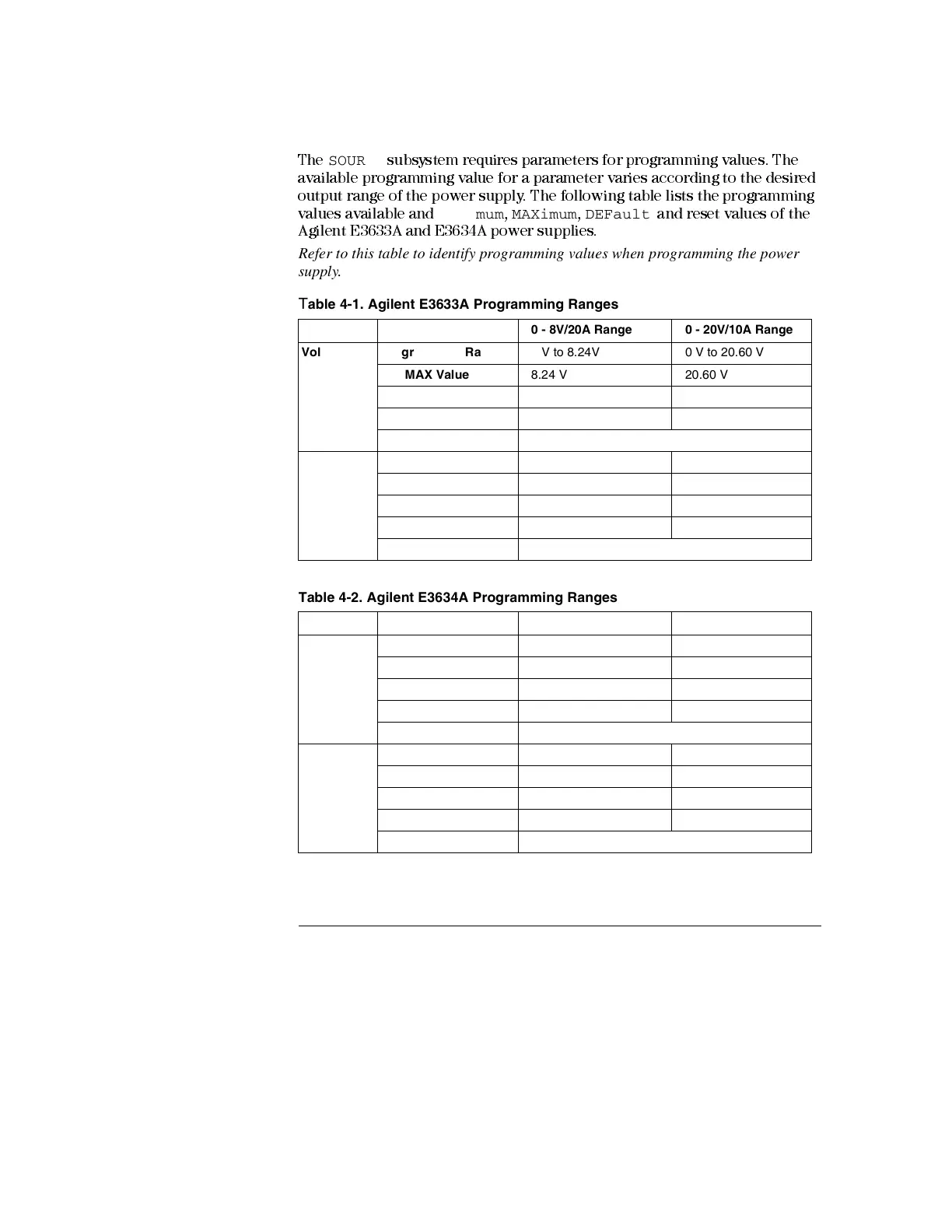

Table 4-1. Agilent E3633A Programming Ranges
Table 4-2. Agilent E3634A Programming Ranges
0 - 8V/20A Range 0 - 20V/10A Range
Voltage Programming Range 0 V to 8.24V 0 V to 20.60 V
MAX Value 8.24 V 20.60 V
MIN Value 0 V 0 V
DEFault Value 0 V 0 V
*RST Value 0 V
Current Programming Range 0 A to 20.60 A 0 A to 10.30 A
MAX Value 20.60 A 10.30 A
MIN Value 0 A 0 A
DEFault Value 20 A 10 A
*RST Value 20.00 A
0 - 25V/7A Range 0 - 50V/4A Range
Voltage Programming Range 0 V to 25.75V 0 V to 51.5 V
MAX Value 25.75 V 51.5 V
MIN Value 0 V 0 V
DEFault Value 0 V 0 V
*RST Value 0 V
Current Programming Range 0 A to 7.21 A 0 A to 4.12 A
MAX Value 7.21 A 4.12 A
MIN Value 0 A 0 A
DEFault Value 7.0 A 4.0 A
*RST Value 7.00 A
