Front and Rear Panel ESG Family Signal Generators
Display Annotation
3-8
User’s Guide

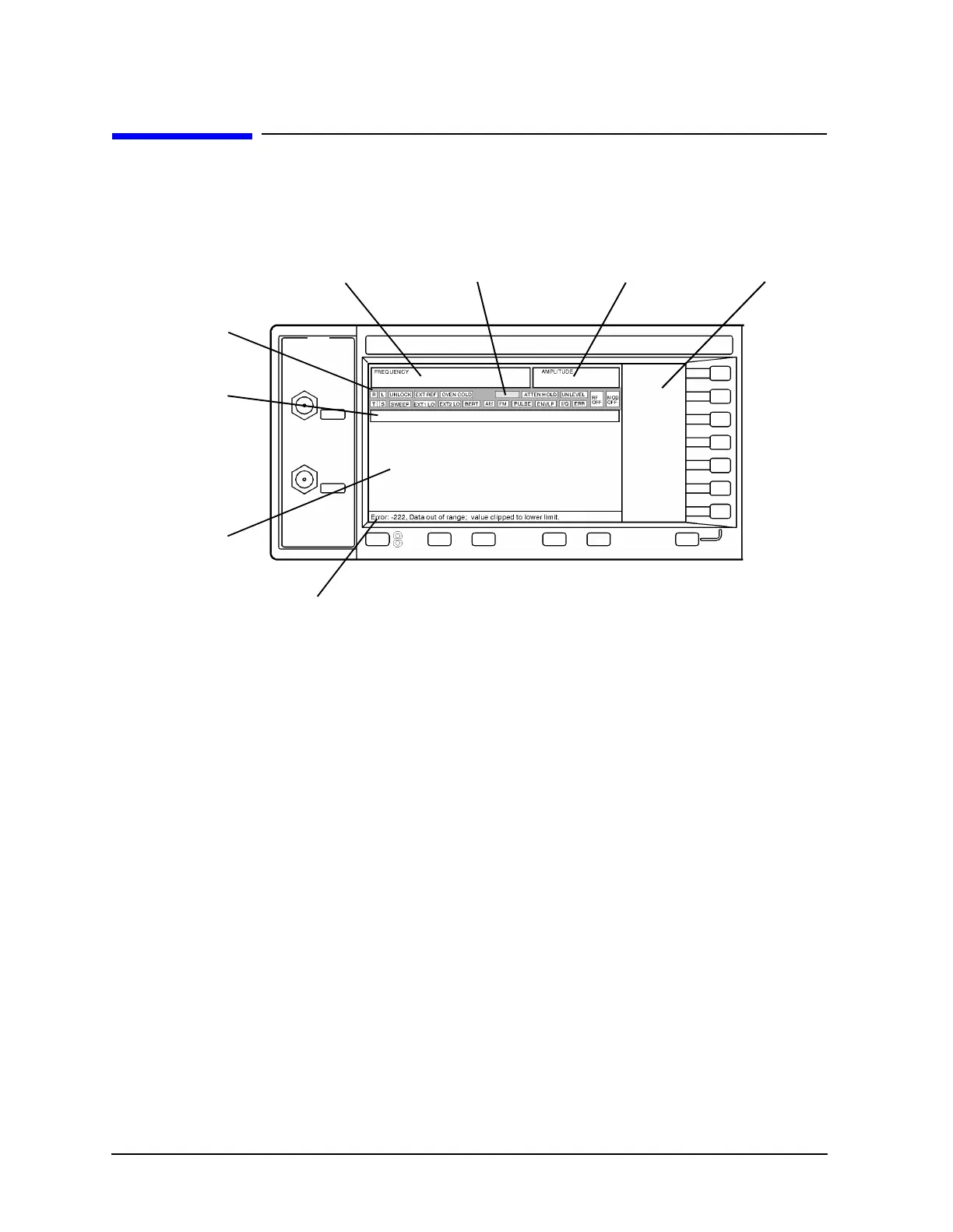

Display Annotation
1. Frequency Area
The current CW frequency setting is shown in this portion of the display. Indicators are
also displayed in this area when a frequency offset or multiplier is set or if frequency
reference mode is turned on.
2. Amplitude Area
The current output power level setting is shown in this portion of the display. Indicators
are also displayed in this area when an amplitude offset is set or if amplitude reference
mode is turned on.
3. Softkey Labels
These labels define the function of the corresponding softkeys immediately to the right of
the label.
4. Error Message Area
Abbreviated error messages are reported in this space. When multiple error messages
occur, only the most recent message remains displayed. All of the reported error messages
with details can be viewed by pressing
Utility > Error Info > View Next Error Message.
1. Frequency Area
3. Softkey Labels
4. Error Message Area
6. Active Entry
Area
7. Annunciators
Digital Modulation
Annunciators
5. Text Area
2. Amplitude Area
