Hardkey and Softkey Reference ESG Family Signal Generators
Arrow Keys
4-20 User’s Guide

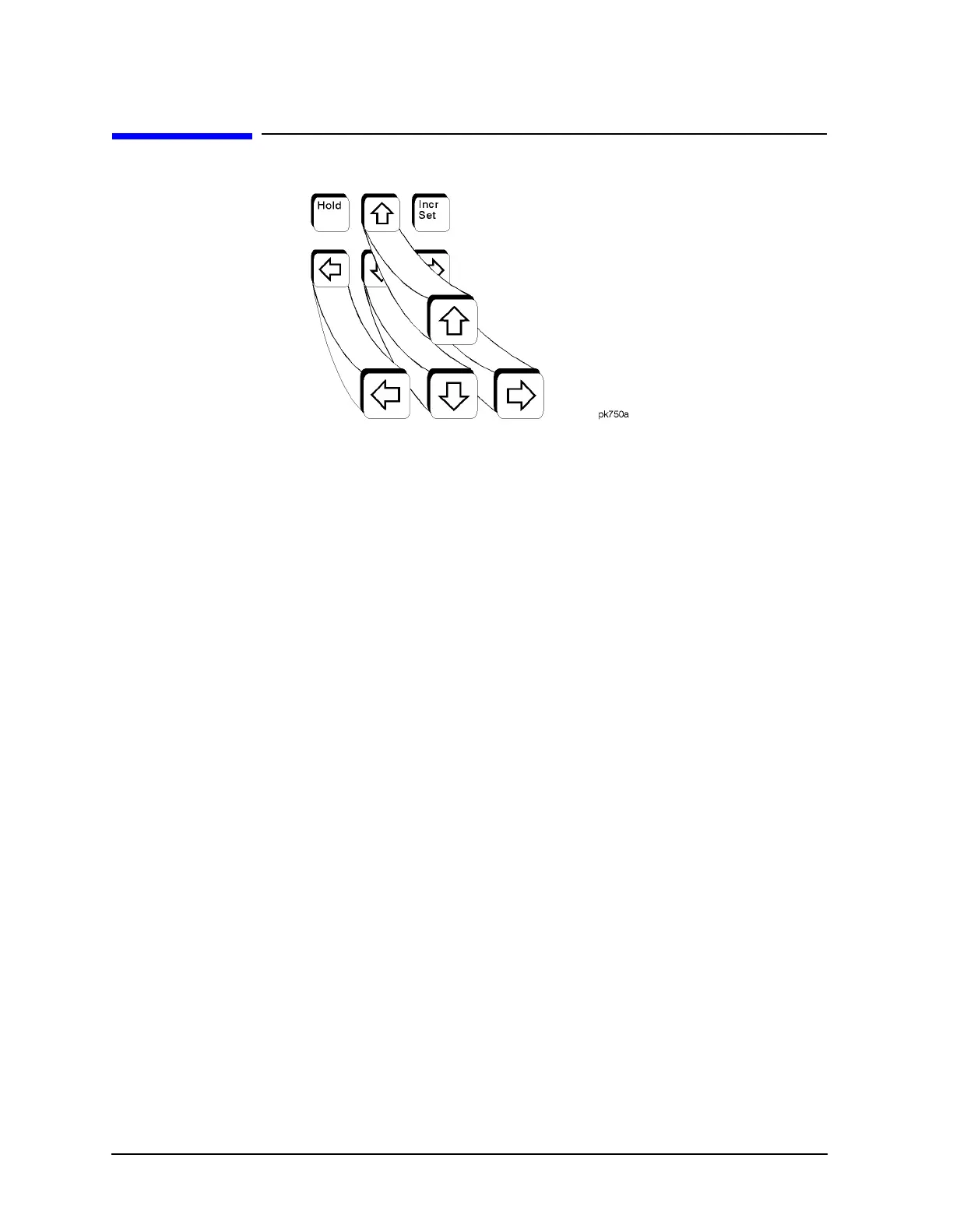

Arrow Keys
Use the up and down arrow keys to increase and decrease the value of a
numeric parameter by the increment value. For example, when
frequency is the active function, if the current frequency setting is
1 MHz and the increment value set is 1 kHz, pressing the up and down
arrow keys will increase and decrease the 1 MHz frequency in 1 kHz
steps.
In addition, you can use the up and down arrow keys to scroll through
displayed lists to select items.
The left and right arrow keys choose the highlighted digit in the active
entry area, which is modified by the up and down arrow keys. When a
digit is highlighted it overrides the increment value used with the up
and down arrow keys. This override remains in effect until the
Incr Set
key is pressed, an instrument preset occurs, or power is cycled. For
example, if frequency is the active parameter and you press the right
arrow key until the 1 kHz position is highlighted, the up and down
arrow keys will increase and decrease the frequency in 1 kHz
increments no matter where the
Incr Set key has been set.
The arrow keys have autorepeat capability. Hold a key down and its
function is continuously executed until you release it.
