Creating Signals
Trigger setup for the ESG
The ESG includes several different triggering types and sources.
For more details on the different trigger types and sources available, and how to set up,
please refer to the E4438C ESG Vector Signal Generator User’s Guide.
Event marker setup
The Signal Studio software makes use of the ESG markers to generate various signals
out the Event 1 and 2 ports on the back of the rear panel of the ESG. See Figure 31.
Markers provide timing signals that are synchronized with a waveform segment.

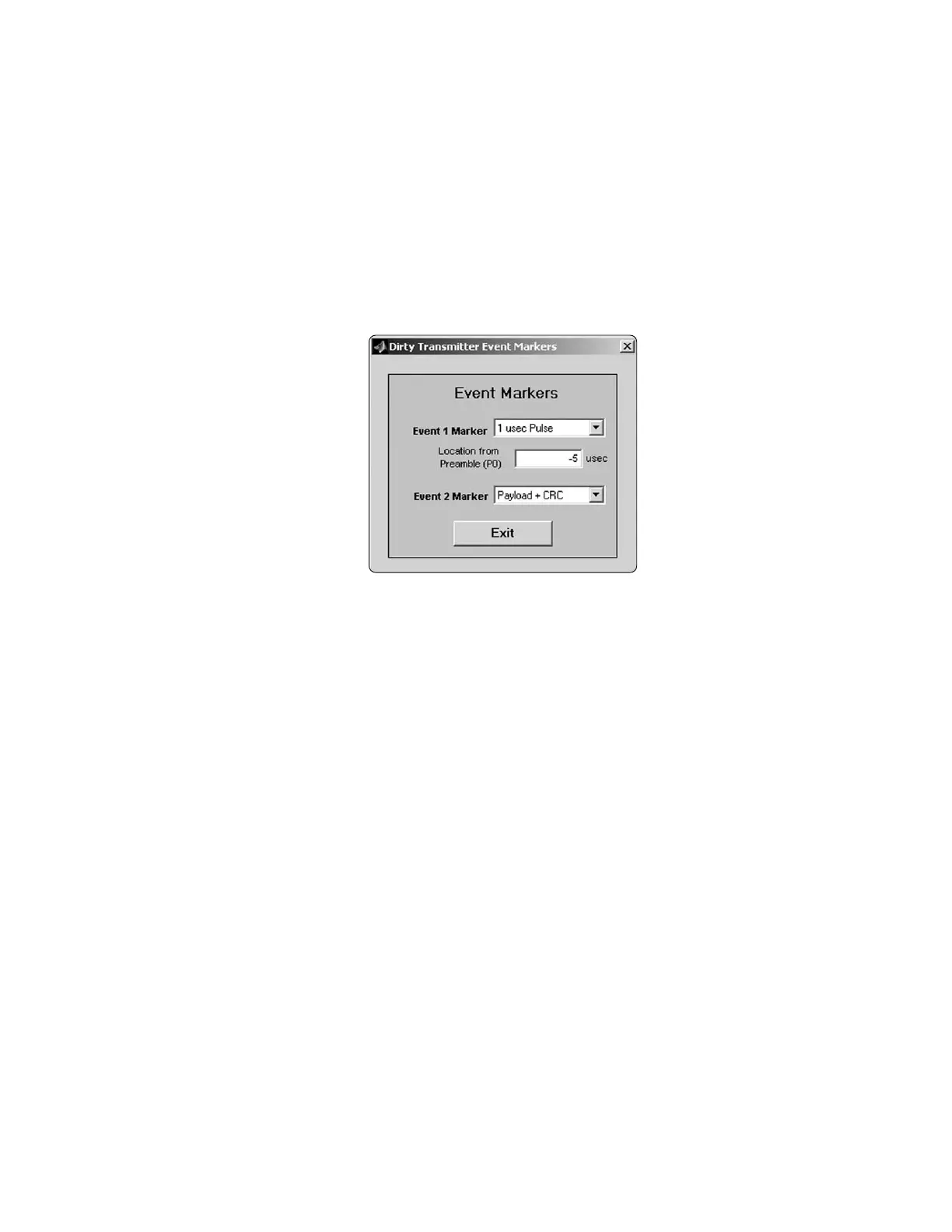

Figure 31. Dirty Transmitter Event Markers menu
