40
www.agilent.com/find/esg
Basic Measurements
3. Use Signal Studio to configure a DH1 multi packet sequence that contains continuous
PN9 data distributed over the user payload portion of the packet sequence, Figure 43.
Do not add impairments to the signal when performing the initial calibration. Once
configured, select the Calculate button.

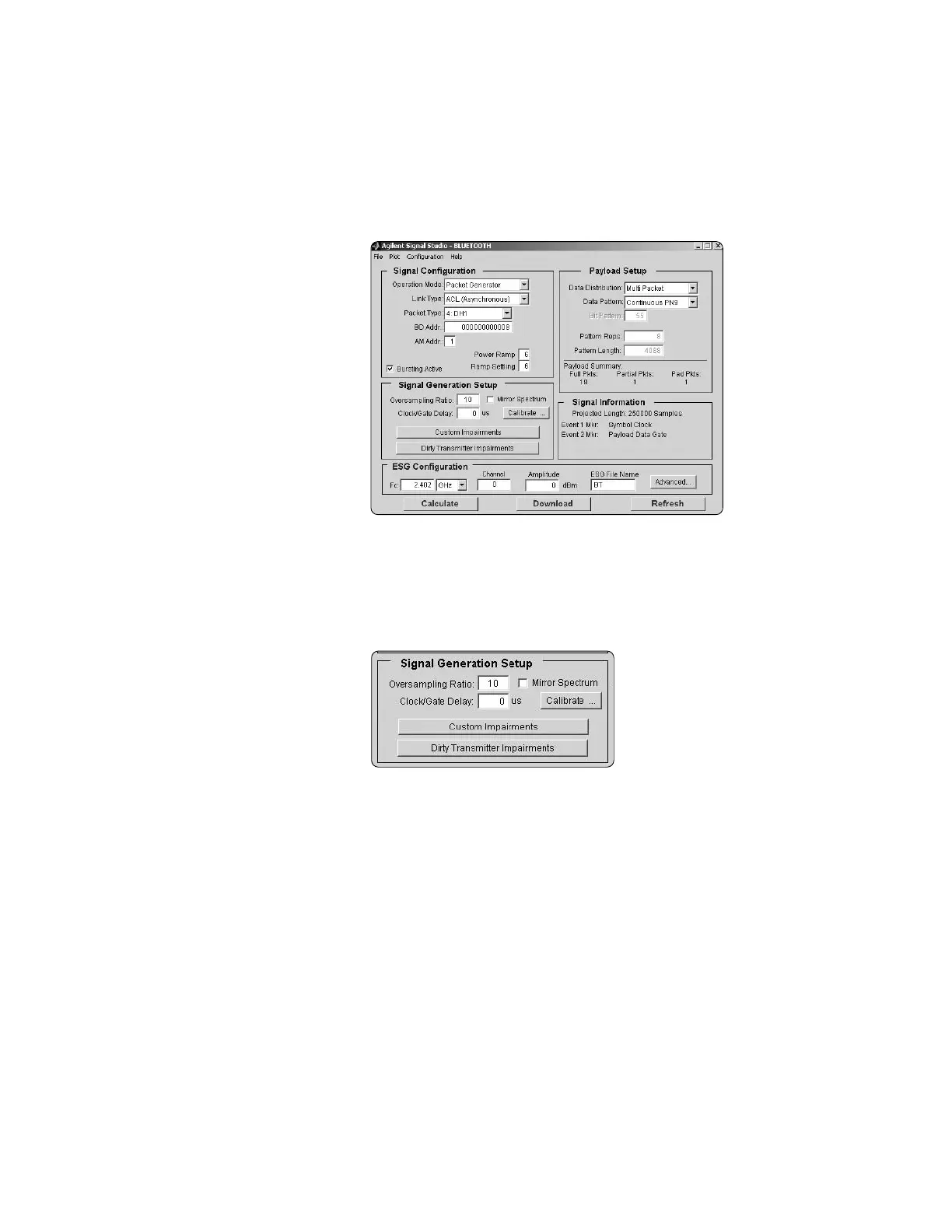

Figure 43. Signal Studio Configured to create a DH1 multi packet sequence with continuous PN9
data spread over the user payload portion of the sequence.
4. Use the calibrate utility to determine the signal propagation delay through the ESA.
Select the Calibrate button in Figure 44. The calculated waveform is automatically
downloaded to the ESG and the calibration utility is initiated.
Figure 44. Signal Generation Setup menu.
