Chapter 2 95
Instrument Functions: A - L
Display
Instrument Functions: A - L
2.5.4.2 Center

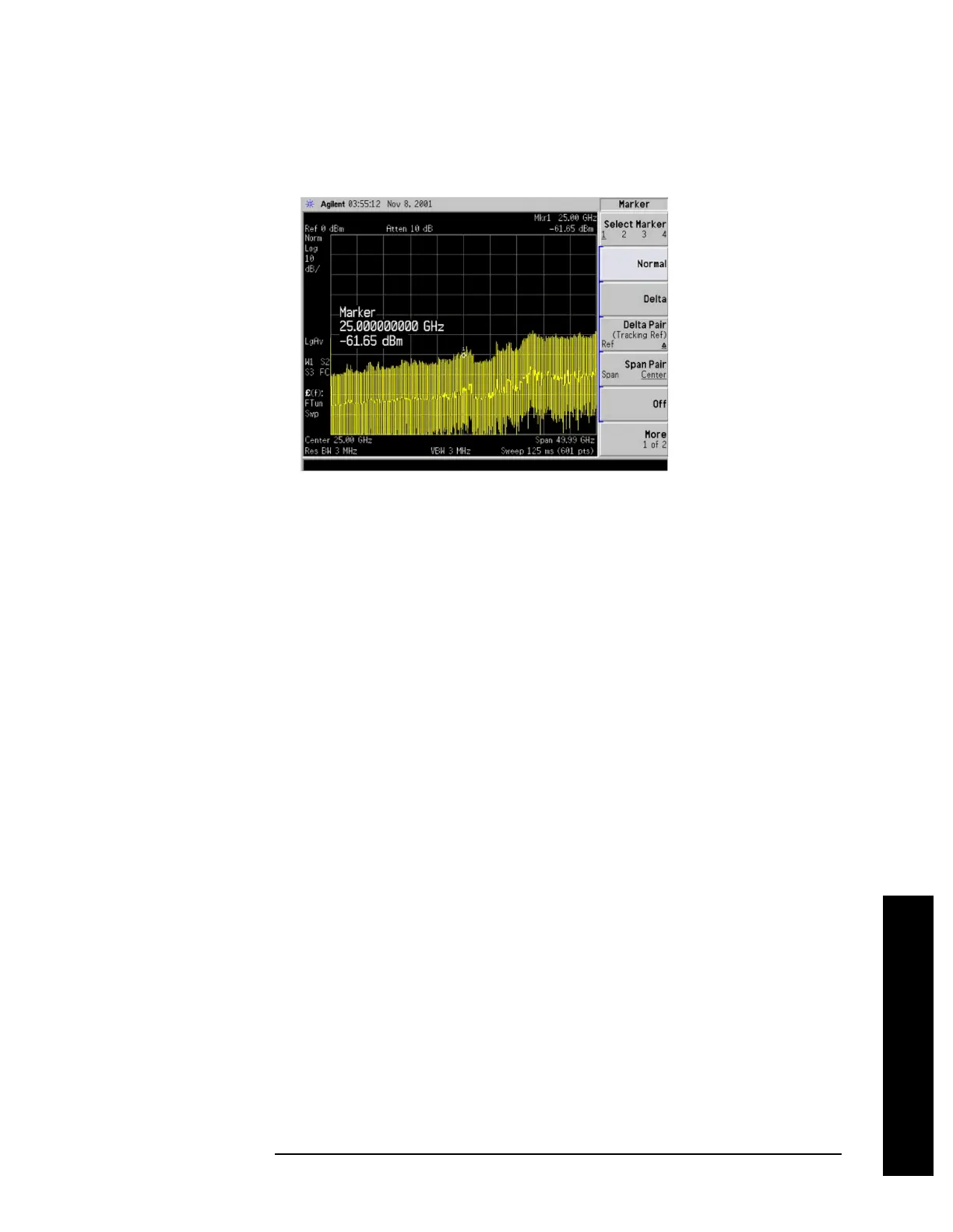

Displays the active function in the center-left side of the display.
Key Path:
Display, Active Fctn Position
Readback: Center reads back to line 3 of this key.
State Saved: Not saved in instrument state, survives power cycle and preset.
Factory Preset: No effect, persistent variable, survives power cycle and preset.
Factory
Default: Center
History: Added with firmware revision A.04.00
Remote Command:
:DISPlay:AFUNction:POSition CENTer
Example: :DISP:AFUN:POS CENT
