Chapter 4 53
Viewing Catalogs and Saving Files
Saving a File

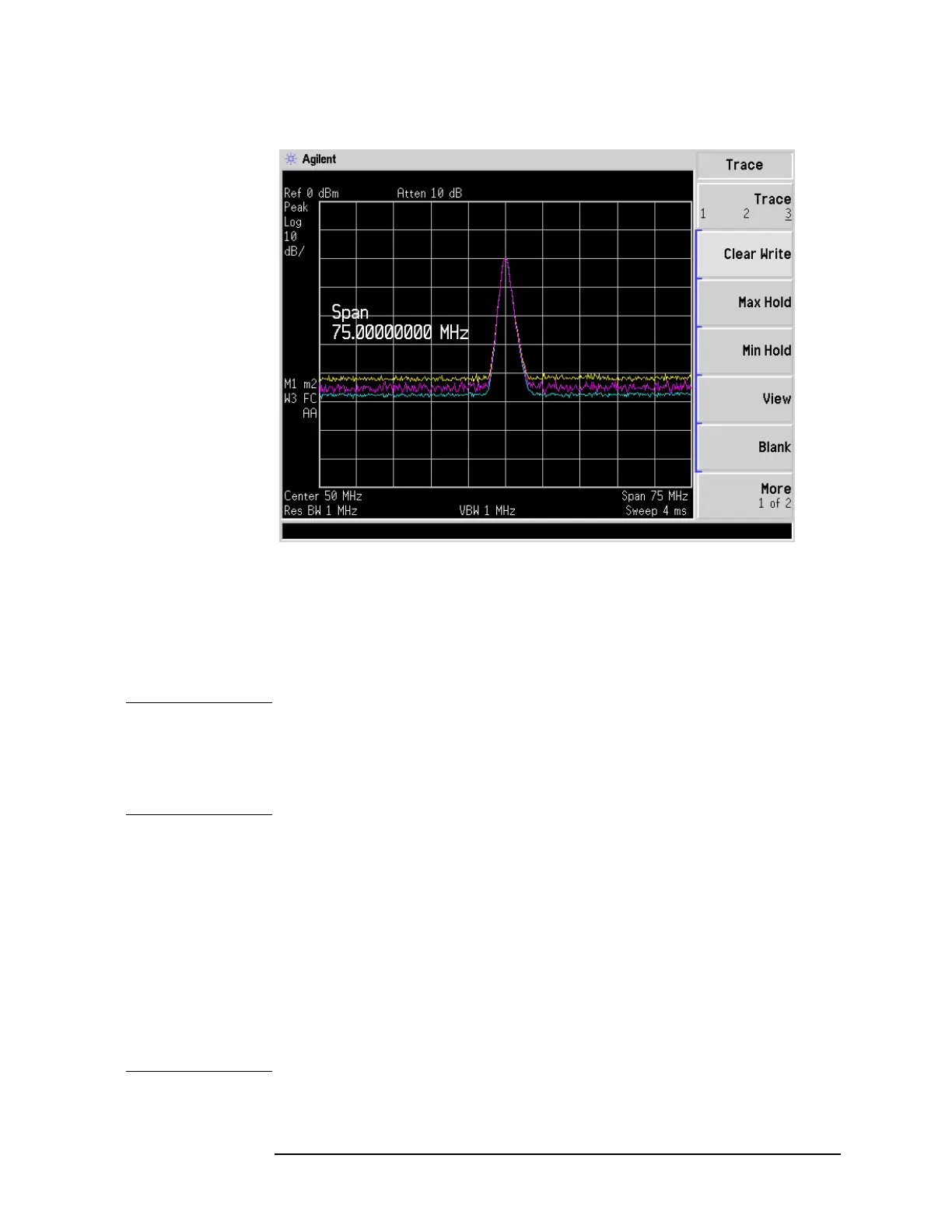

Figure 4-4 Viewing Traces 1, 2, and 3
Step 2. Save the file
1. To access the Save menu, press, File, Save.
2. Select the type of file you want to save. In this example you are saving a trace;
press
Type, Trace.
NOTE Trace files are not bitmap files. Files saved as Trace cannot be imported into other
applications or converted. If you require the use of other applications, for example
Microsoft Word or Microsoft Excel, be sure to save your files as .gif or .wmf
formats using
Screen for your file Type. Comma separated value (csv) files can
also be imported into Microsoft Excel.
3. Select the trace you wish to save (1, 2, 3, or all traces). In this example you will
save trace 3; press
Source (softkey in the Save menu), Trace 3.
4. Select the format you wish to use for saving the trace, either trace plus state
(
Trace + State) or comma separated value (CSV). In this example you will
save as trace plus state; press
Format, Trace + State.
5. Enter a filename by pressing
Name. The Alpha Editor appears. For this
example you will name the file, “TEST1”. (The numeric keypad is also
available for the filename.) The file extension is always set by the system and
for this file type the extension is TRC. You must now press the
Enter (hardkey)
to get back to the
Save menu.
NOTE You need to use a filename that does not already exist in the current directory. The
