Chapter 3 39
Making a Basic Measurement
Viewing a Signal
Viewing a Signal
1. Press Preset. If the softkeys Factory Preset and User Preset appear, select
Factory Preset.
2. Press
System, Reference, then note the 10 MHz Out setting. If Off is active
(underlined), press the softkey to toggle the reference on.
3. Connect the analyzer’s rear panel
10 MHz OUT (SWITCHED) to the front-panel
input.
Setting Reference Level and Center Frequency
NOTE The display examples in this section are made using various analyzer models, you
may see some variations depending upon your analyzer.
4. Set the reference level to 10 dBm: Press
AMPLITUDE, 10, dBm.
5. Set the center frequency to 30 MHz: Press
FREQUENCY, Center
Freq
, 30, MHz.
The 10 MHz reference signal spectrum appears on the display, as shown in
Figure 3-1.

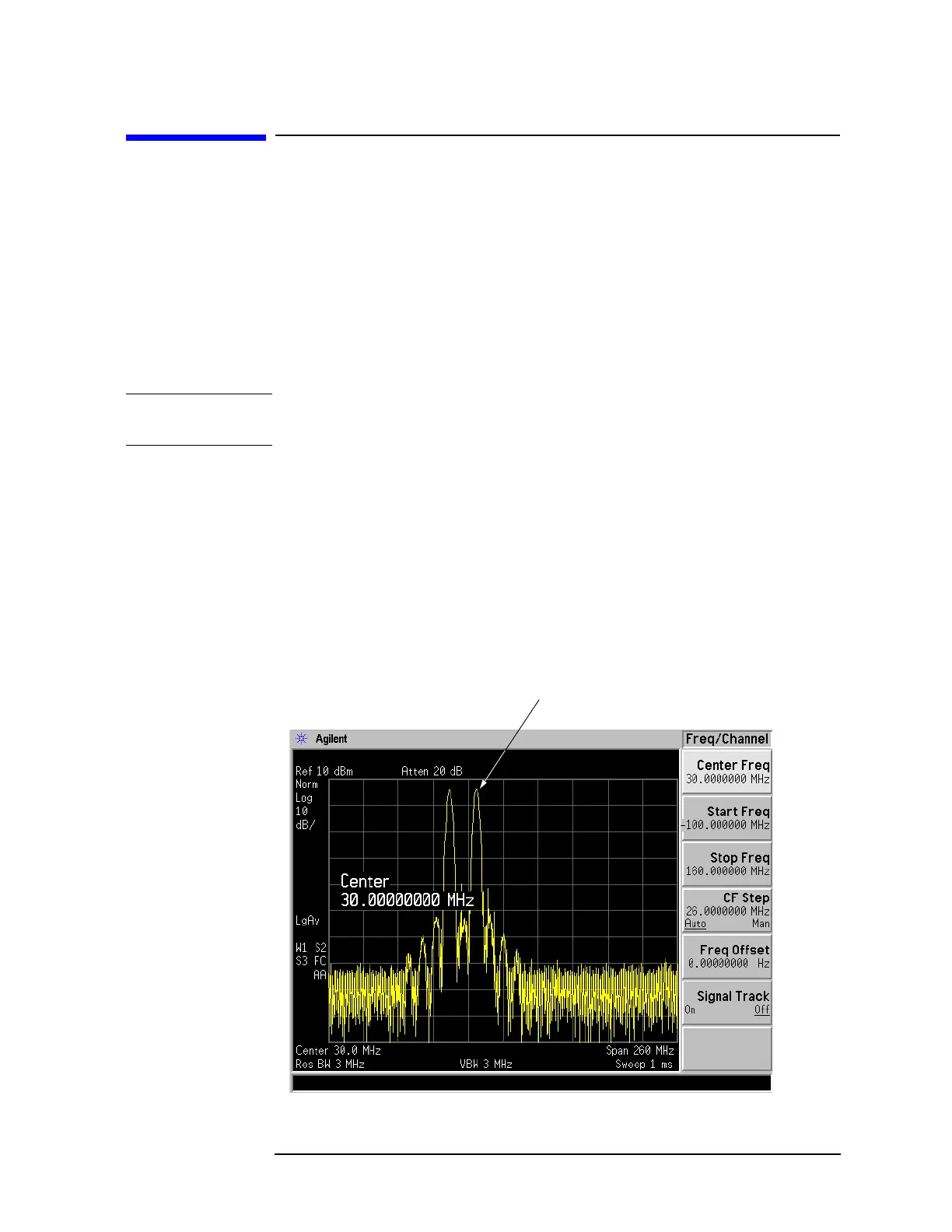

Figure 3-1 10 MHz Internal Reference Signal and Associated Spectrum
