29
Installing the G1330B Thermostat
Installing the G1330B Thermostat

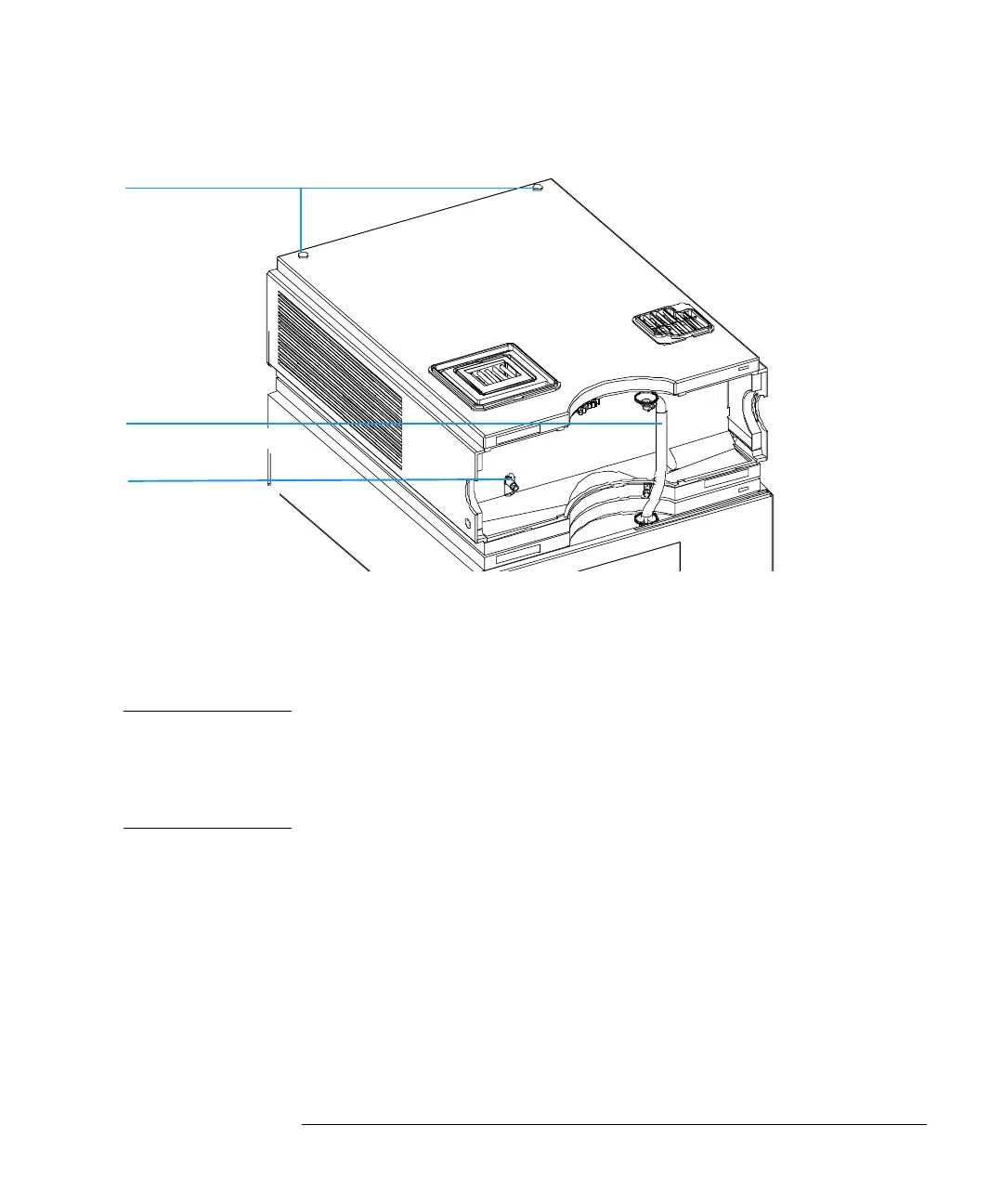

Figure 9 Preparation of the ALS Thermostat
4 Connect the condensation leak tube to the main waste exit of the ALS
thermostat and place into an appropriate vessel. It is possible to either let the
condensation leak tubing exit the module at the front or at the left side of the
module. Make sure that the leak tube is fully fixed on the outlet.
WARNING Make sure that the condensation tube is always above the liquid level
in the vessel. If the tube is located in liquid the condensed water
cannot flow out of the tube and the outlet is blocked. Any further
condensation will then remain in the instrument. This may damage the
instruments electronics.
Condensation leak tube
Waste tube assembly
Module locks
